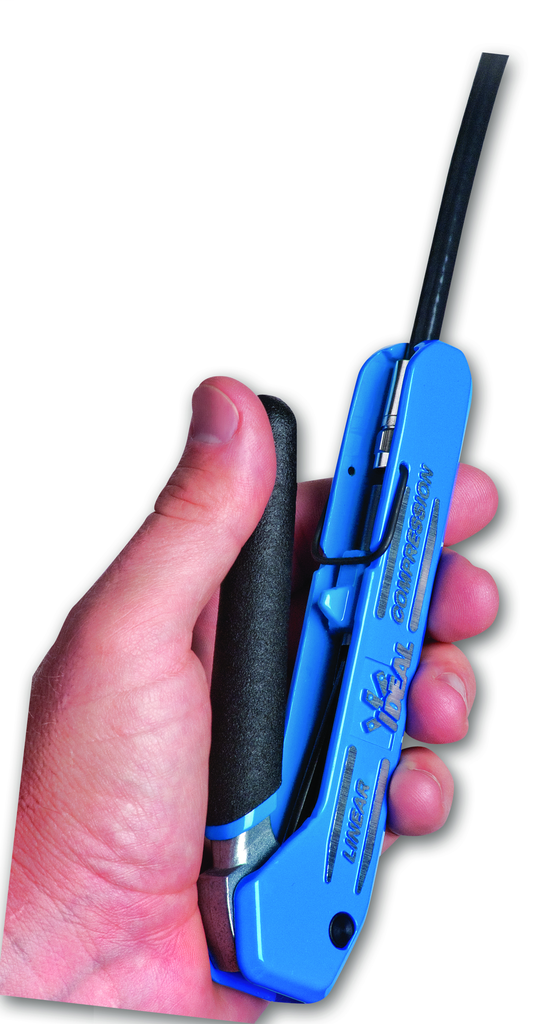

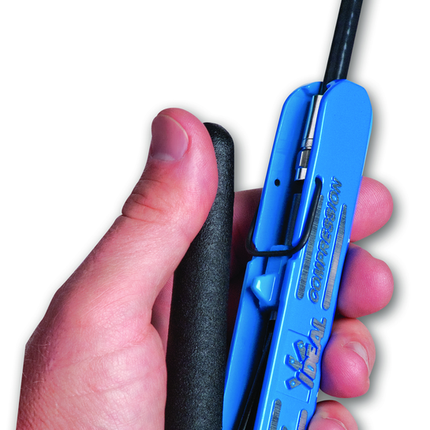

LinearX® 3 Compression Tool – Coaxial Cable Compression

The LinearX® 3 Compression Tool by IDEAL Industries is designed for installers transitioning from traditional crimping tools or those occasionally working with coaxial cable terminations. This tool compresses F, BNC, and RCA connectors with an adjustable post to accommodate various connector sizes and types. Its rugged zinc die-cast frame and double-dipped no-slip handle grip provide durability and comfort. Suitable for electrical distributors and professionals handling wire and cable, this tool supports efficient coaxial cable termination in lighting solutions, security, and HD video applications.

Specifications

• Material: Rugged Zinc Die-Cast
• Manufacturer Part #: 33-632
• Product Weight: 1.0000 lb
• Included: (4) RTQ RG-6 Weatherproof F-Compression Connectors
• Adjustable post with factory settings for F/RCA and BNC/right angle connectors

Features

• All-metal zinc die-cast frame construction for durability
• Double-dipped no-slip handle grip with spring-loaded handle for ease of use
• Adjustable post that can be raised or lowered to compress IDEAL F, BNC, RCA connectors, and compatible with many non-IDEAL connectors
• Factory preset post positions for precise compression: 0.67‚Äù exposure for F/RCA connectors; 0.35‚Äù exposure for BNC and right angle connectors
• Embossed logo and high-quality finishes typically absent in value-priced tools
• Includes four RTQ‚Ñ¢ RG-6/6 Quad F connectors for immediate use

Downloads & Links

• P-5178 CompConnSolutions_07.18.pdf
• LinearX Adjustment Instructions.pdf
• Spec Sheet
