Features

Tuff Seal Wire Mesh Cable Grips distribute stress over a large area to prevent damage to wire, cable and flexible conduit.  They are built to perform their task over an extended period of time without loosening their hold.  All Remke Wire Mesh Grips are available in a wide selection of cable ranges and eye styles where applicable, and can be used in conjunction with any RSR cord connector.

Remke’s line of Wire Mesh Cable grips includes:

• Standard Support Grips - used both indoors & outdoors to hold the weight of a cable that is vertical or sloping.
• Lace Closing Support Grips – suitable for permanent support applications and designed for all phases of suspension or pulling
• Rod Closing Support Grips – the fastest & easiest to install split-closure types but may be difficult to install at high angles of weave
• Wide Range Strain Relief Grips - used to connect cord or cable to electrical enclosures & equipment and feature aluminum fittings and a gasket that provide a seal against dust, filings and other foreign material.
• I-Grips - designed for indoor use to secure plug bodies, provide strain relief and control arc of bend.
• Bus Drop Grips - absorb vibration and support flexible cord or cable when power is supplied from an overhead source.
• Junior Pulling Grips – reusable tools with a flexible eye that are well-suited for small job requirements where pulling tension is low

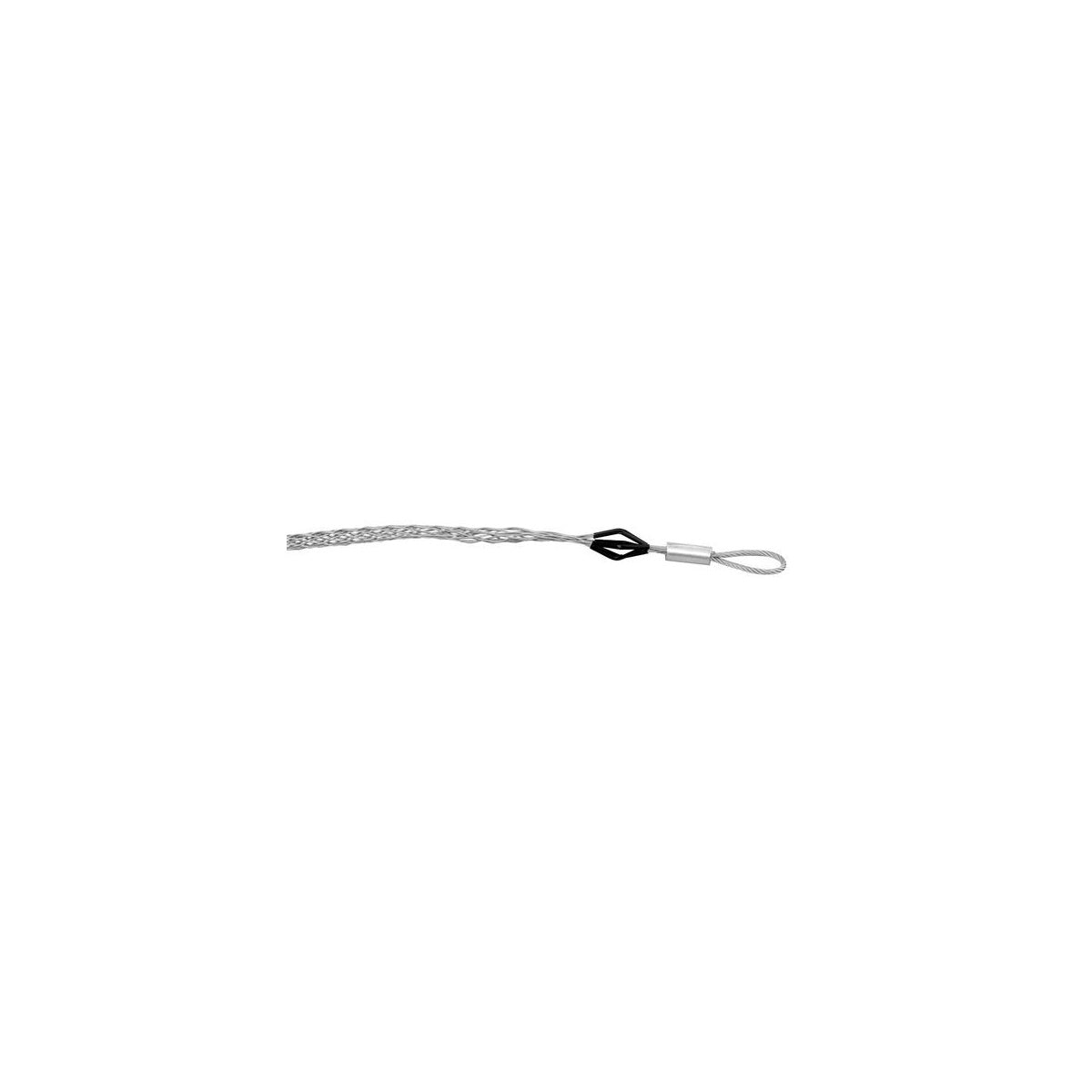

• Light-Duty Pulling Grips – features a flexible eye for easy attachment to a pulling line and are used in general underground electrical construction with low pulling tensions

TUFF-SEAL™ Engineered Solutions Are Second To None

In the Tuff-Seal family of Cord Connectors & Wire Mesh Grips customization means you can mix and match from our extensive selection of special materials, wire mesh, components, threading, custom packaging, kitting and private labeling to develop the wire management Cord Connectors & Wire Mesh Grips that meets your specific needs.

Special Materials

• Aluminum - excellent durability and performance for most industrial applications
• Nylon - lightweight and corrosion resistant
• Steel - preferred in rugged industrial environments
• Valox® - suitable for FDA-mandated washdown locations
• Stainless Steel - the highest levels of durability in severely corrosive environments
• Nickel-Plated Aluminum - protection against corrosion, friction & contamination with the appearance of polished stainless steel

Special Wire Mesh

• A variety of materials including non-magnetic tin coated bronze, stainless steel, galvanized steel, plastic-coated galvanized steel strands, and non-metallic strands

Special Components/Options

• Multiple hole bushings in a variety of hole combinations
• Slit bushings
• Various bushing materials including neoprene, silicone, Viton™, and buna-N
• Locknuts
• Embedded O-Rings
• Application-specific requests

Special Threading

• NPT
• Pg
• ISO (metric)
• NPS
• Applicaton-specific requests

Specifications

• Cable Range: .62 - .74
• Category: Wire Mesh Cable Grips|Light Duty Pulling Grips|Short,Wire Mesh Cable Grips|All Wire Mesh Cable Grips,Cord Grips & Cable Connectors|Lighting Connectors
• Country of Origin: United States
• Flammability Rating: UL 94HB
• Max Cable Range over Jacket (in): 0.74
• Mesh Breaking Strength Approximate (lbs): 2800
• Mesh Description: LD-062-S
• Mesh Eye Length (in): 5
• Mesh Eye style: Single
• Mesh Length (in): 11
• Mesh Material: Galvanized Steel
• Mesh Maximum Cable Size (in): 0.62
• Mesh Minimum Cable Size (in): 0.74
• Mesh Type: Closed
• Min Cable Range over Jacket (in): 0.62
• Standard Package Quantity: 1
• Tab Info: WMG Guide 3,WMG Guide 4,WMG Guide 1,WMG Guide 2
• UNSPC: 39121722
• UPC: 785411814377
