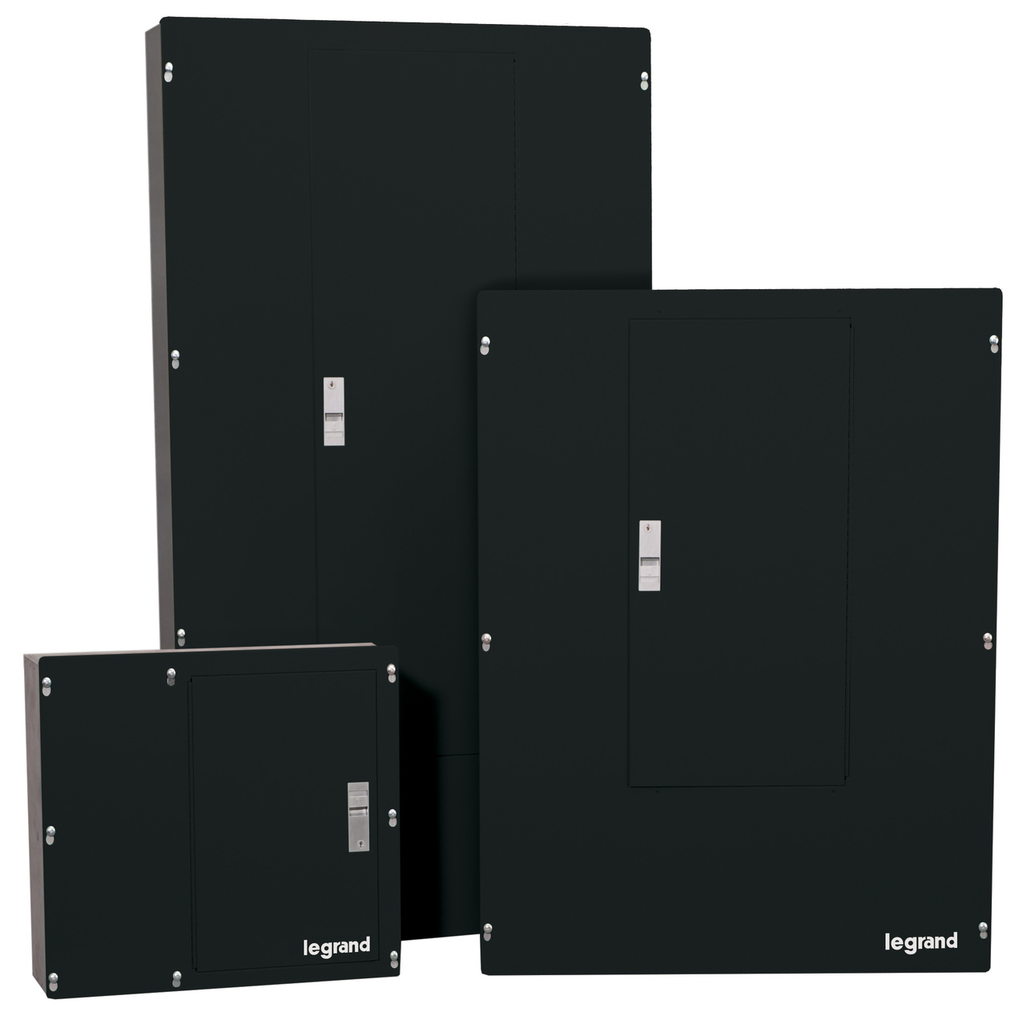

LI Enclosure w/8 Relay Capacity Interior, Flush Mount Panel Enclosure

The LI Enclosure with 8 Relay Capacity Interior (catalog number LENC8F) by WattStopper is a flush mount panel enclosure designed to accommodate LMCP panel interiors containing up to 8 relays. This NEMA 1 rated enclosure is engineered for quick and easy installation, featuring integral mounting studs configured to accept the panel interior. It provides secure, lockable hinged doors that expose only the low voltage (Class 2) section of the panel, ensuring compliance with NFPA 70. Suitable for indoor electrical distributor and lighting solutions applications, it supports organized mounting of wire and cable within lighting control systems.

Specifications

• Manufacturer: WattStopper
• Manufacturer Part #: LENC8F
• Mounting Type: Flush Mount
• Relay Capacity: 8 relays
• Dimensions (HxWxD): 17.10 in x 18.48 in x 4.67 in
• Product Weight: 20 lbs
• Material: 16-gauge steel with galvineal finish
• Rating: NEMA 1
• Country of Origin: United States
• Made in USA: Yes

Features

• Integral mounting studs for quick panel interior installation
• Hinged door with key locks and two keys for secure access to low voltage section
• Screw-on, powder coated cover with keyhole style mounting allowing temporary hanging during construction
• Designed for flush mounting with added dimensions to accommodate installation
• UL and cUL listed with a five-year warranty
• Surface mounting holes on back for versatile installation options
• Supports optional DIN rail mounted accessories with available mounting plates (for larger relay capacity models)
