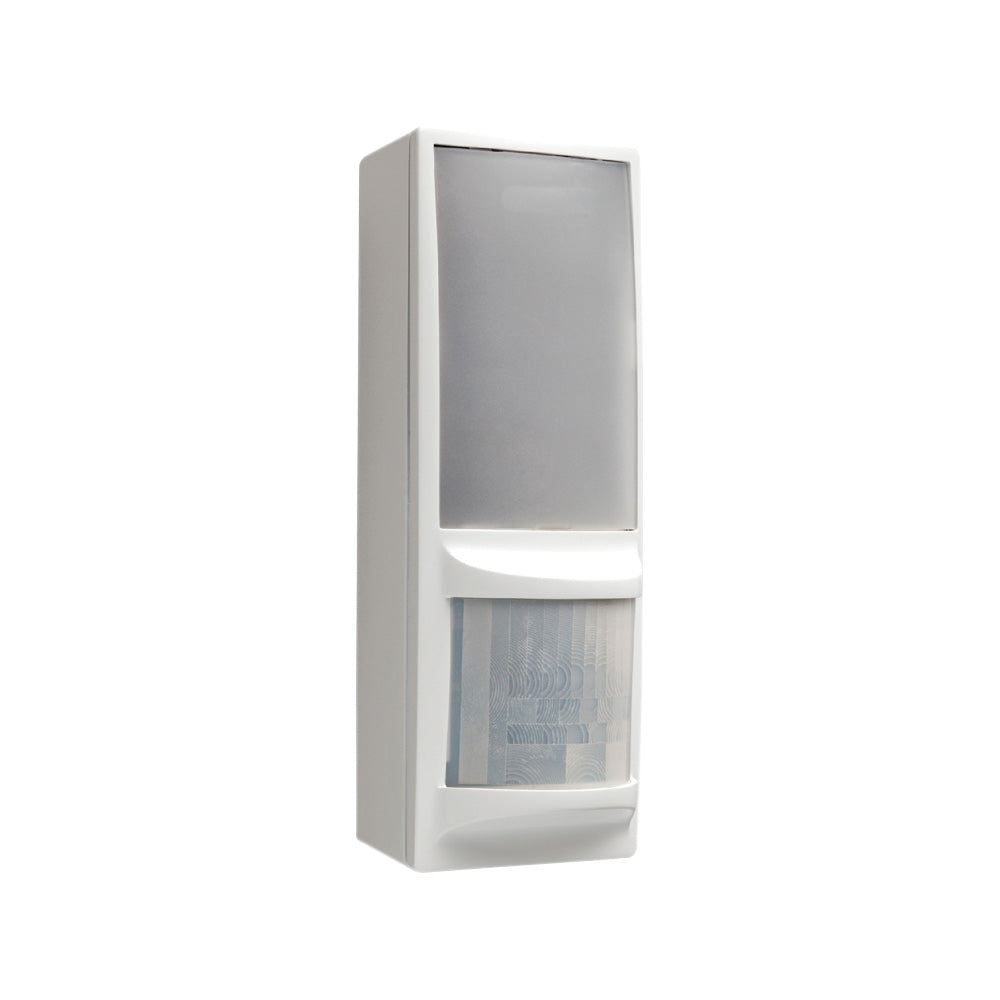

LEVITON WSWDR-H9W Wireless PIR Occupancy Sensor

The LEVITON WSWDR-H9W is a wireless, self-powered wall-mounted occupancy sensor designed for precise detection of occupancy to optimize energy management in lighting, HVAC, and outlet control systems. Using passive infrared (PIR) technology and 902 MHz RF communication, this sensor transmits occupancy status to compatible LevNet RF advanced wireless wall switches, making it an ideal solution for electrical distributors and lighting solutions providers focused on energy efficiency and smart building automation.

Specifications

• Model Number: WSWDR-H9W
• Frequency / Range: 902 MHz / 50-150 feet
• Field of View: Wide Angle - 2000 sq. ft., Long Range - 1600 sq. ft.
• Power Supply: Solar powered with optional battery backup (CR2032)
• Light Required to Sustain Operation: 50 lux for 30 transmissions per hour
• Charge Time for Full Charge: 3 hours @ 200 lux (after startup), 6 hours @ 200 lux (cold start)
• Charge Time before Linking: 4 minutes @ 100 lux
• Operating Environment: Indoor use only, 14¬∞ to 104¬∞F (-10¬∞ to 40¬∞C), 20% to 95% relative humidity (non-condensing)
• Radio Certification: FCC (United States) SZV-STM300U, I.C. (Canada) 5713A-STM300U
• Product Weight: 24.0 oz
• Dimensions: 5.8" (H) x 2.5" (W) x 1.1" (D)
• Color: White

Features

• Wireless PIR occupancy sensing for accurate detection of presence or vacancy
• Self-powered via indoor light harvesting with supplemental battery option for low-light conditions
• Transmits RF signals to compatible LevNet RF advanced wireless wall switches for seamless integration
• Mounts flush on walls or in corners with optional adjustable ceiling corner bracket
• Interchangeable lenses for tailored coverage: wide angle (default) and long range
• Built-in walk and light-level test modes for installation verification
• Supports multiple device associations for enhanced occupancy tracking and control
• Designed for indoor use in commercial and residential applications requiring energy-efficient lighting and HVAC control
