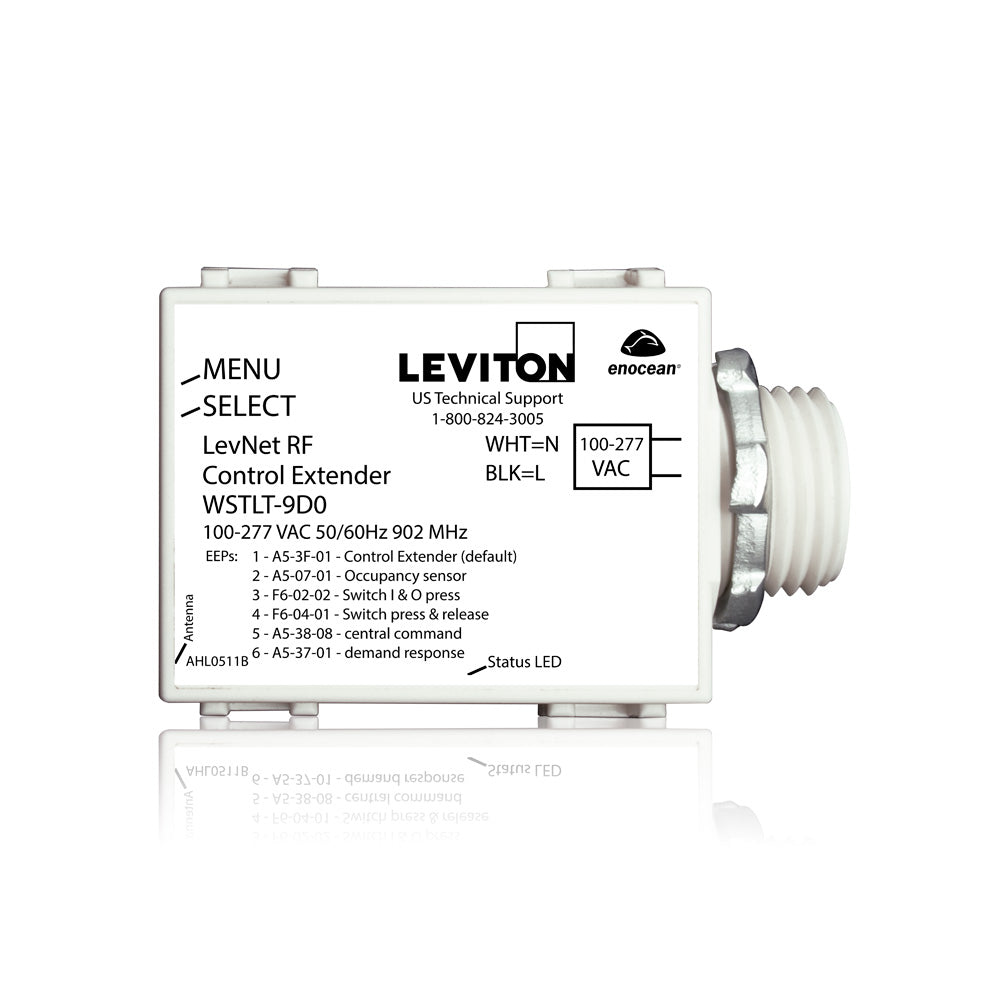

LEVITON WSTLT-9D0 WH SW LEG TRANSMITER 902MHZ THREADED MNT Control Extender

The Leviton WSTLT-9D0 Control Extender is a wireless control transmitter operating at 902 MHz designed to bridge control signals between line voltage circuits. It enables electrical distributors, lighting solutions providers, and switchgear suppliers to extend control from one circuit to another without additional wiring, facilitating integration with hardwired switches, occupancy sensors, or light sensors. Ideal for applications requiring wireless control of HVAC, lighting, or other electrical devices, this transmitter supports efficient energy management and load shedding.

Specifications

• Frequency: 902 MHz
• Power Input: 100-277 VAC, 50/60 Hz
• Power Consumption: <0.5 W @ 120 VAC
• Range: 50-150 feet (typical)
• Transmit EEP: A5-3F-01 (default)
• Addressing: Factory set unique ID (1 of 4 Billion)
• Operating Temperature: +32¬∞ to +122¬∞ F (0¬∞ to +50¬∞ C)
• Storage Temperature: -4¬∞ to +176¬∞ F (-20¬∞ to +80¬∞ C)
• Humidity: 10-95% non-condensing
• Product Weight: 22.2432 lbs

Features

• Eliminates switch-leg wiring runs for simplified installation
• Unique ID ensures reliable wireless communication with intended receivers only
• Supports energy-saving applications including load shedding and HVAC control
• Wireless control of multiple devices from a single existing switch
• Compatible with Leviton LevNet RF 902 MHz product family
• Includes MENU button for easy linking and sensor link test mode
• Complies with ETL UL 60730, CSA, CE IEC 60730, UL 2043 Plenum, IEC 61000-4-5 Surge, FCC, and IC certifications
