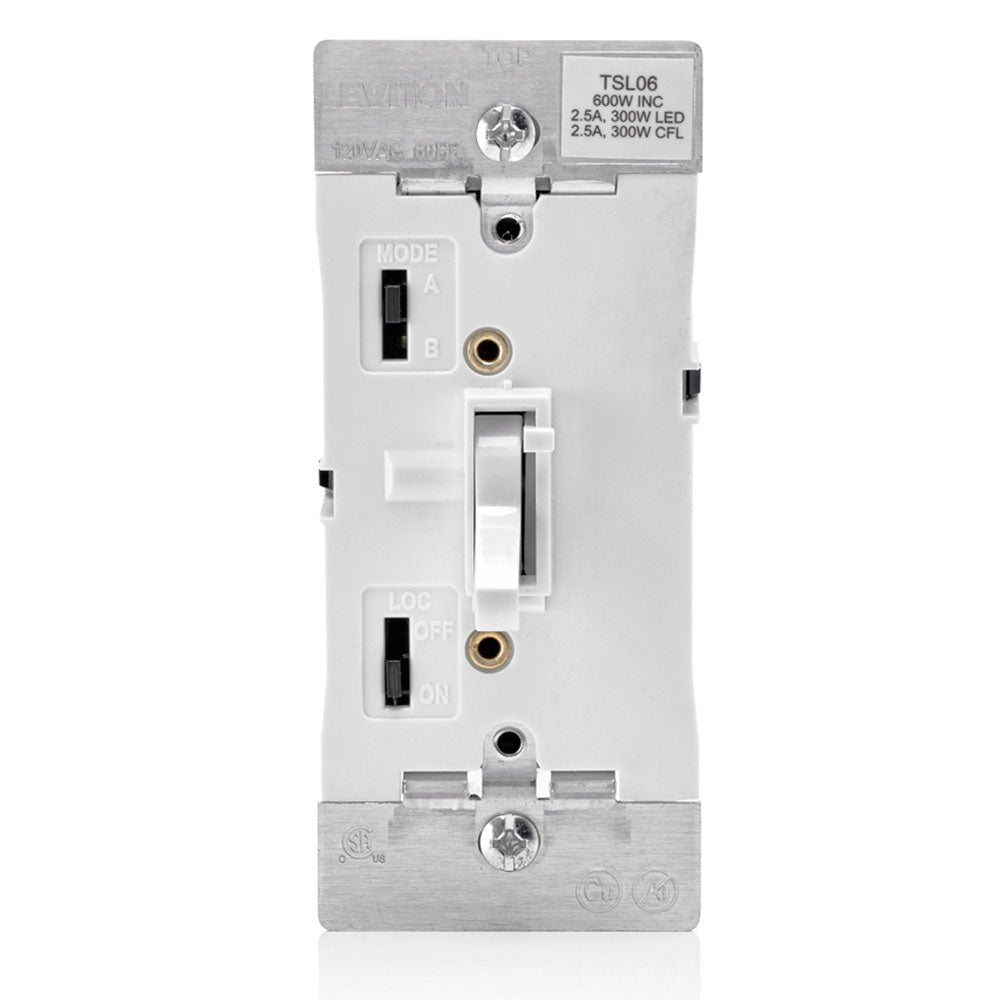

LEVITON TSL06-1LW WH Toggle Slide Universal Dimmer 300W LED/CFL

The Leviton TSL06-1LW is a toggle slide dimmer designed for precise, full-range dimming control of dimmable LED, CFL, incandescent, and halogen lighting loads. Suitable for both single pole and 3-way applications, this device integrates a traditional toggle switch with a linear slide control for smooth dimming adjustment. It is engineered to fit easily into standard wallboxes and supports multi-gang installations without fin removal. Ideal for electrical distributors and lighting solutions providers, the TSL06-1LW offers reliable performance for residential and commercial wiring and switchgear applications.

Specifications

• Manufacturer Part #: TSL06-1LW
• Voltage/Frequency: 120VAC, 60Hz
• Load Rating: 300W LED/CFL, 600W Incandescent/Halogen
• Control Type: Toggle ON/OFF switch with integrated linear slide dimmer
• Single Pole/3-Way: Yes
• Neutral Required: No
• Locator Light: Yes (optional and can be disabled)
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: 10°C to 85°C
• Relative Humidity: 20% to 90% non-condensing
• Product Weight: 3.63 lbs
• UPC: 078477771723

Features

• Integrated linear full-range slide control for precise dimming operation
• Separate ON/OFF toggle switch preserves selected lighting level
• Provides single pole or 3-way control when paired with a 3-way switch
• Slim, compact housing fits standard wallboxes and supports multi-gang installations without fin removal
• Built-in radio/TV interference filter to reduce noise
• Designed for optimal control of dimmable LED and CFL lamps with built-in starting technology
• Wider dimming range for LED and CFL lamps compared to conventional incandescent dimmers
• Adjustable minimum/maximum light level switch to eliminate flicker and optimize ambiance
• Forward phase control technology
• Optional locator light built into the switch for easy location in the dark
• Backed by a limited 5-year warranty
