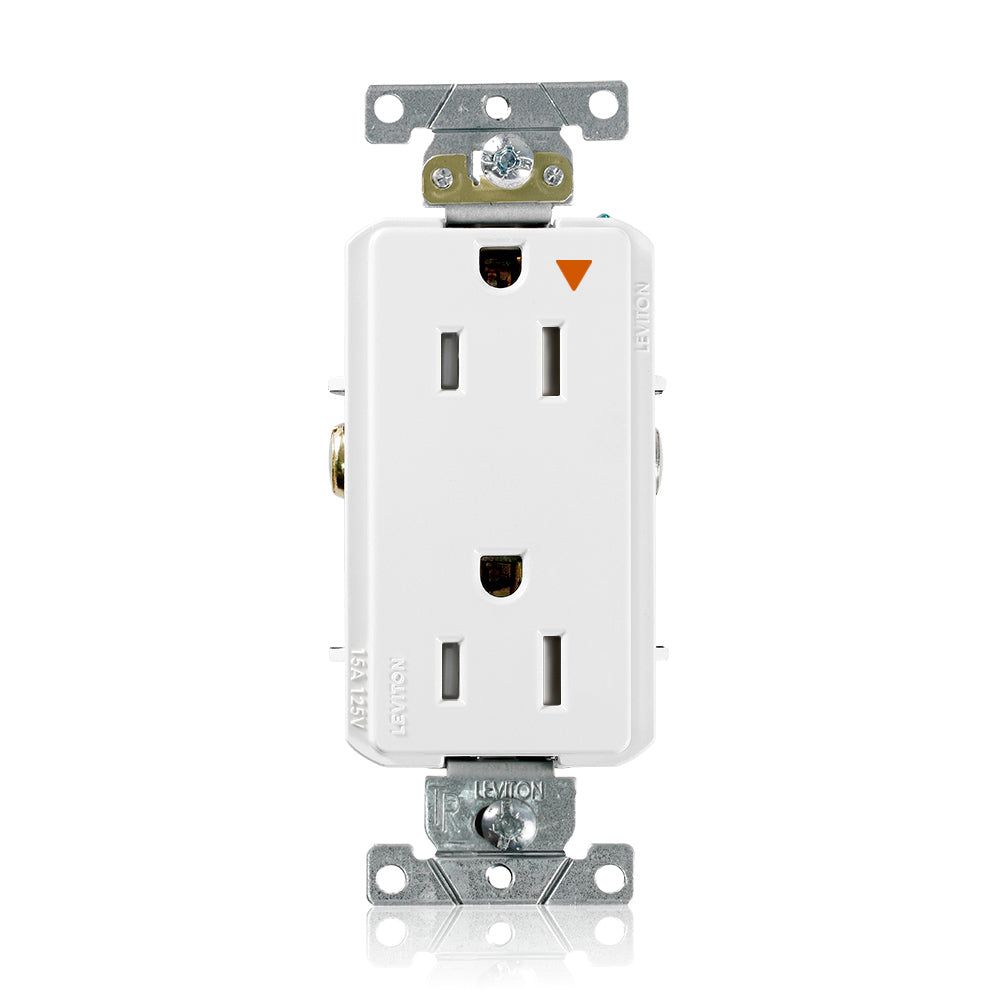

LEVITON T1626-IGW WH DEC DUPL TR REC 515R 2P3W 15A125V Industrial Grade Receptacle

The Leviton T1626-IGW is a tamper-resistant, isolated ground Decora Plus duplex receptacle designed for heavy-duty industrial applications. Rated for 15 amps and 125 volts, this specification-grade device supports back or side wiring and features a smooth face for enhanced safety and durability. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable wiring solutions and lighting solutions that meet stringent safety standards.

Specifications

• Amperage: 15 A
• Voltage: 125 VAC
• Horsepower Rating: 1/2 HP
• Dielectric Voltage: Withstands 3000 V minimum
• Poles: 2
• Wires: 3
• Temperature Rise: Max 30 °C at full rated current
• Operating Temperature: -40°C to 75°C
• Flammability: Rated V-0 per UL 94
• Termination: Back or Side Wire
• Wire Type: Stranded or Solid
• Terminal Accommodation: #14 AWG - #10 AWG
• Screw Terminal Torque: 14-18 in-lbs
• Grounding: Self-Grounding
• Device Type: Duplex Receptacle Outlet
• Color: White

Features

• Tamper-Resistant design for enhanced safety
• Isolated Ground function to reduce electrical noise
• Smooth Face for easy cleaning and maintenance
• Heavy-Duty Industrial Specification Grade for durability
• Back and side wiring options for flexible installation
• Self-Grounding with brass ground clips and contacts
• Constructed with PBT polyester blend body and face materials
• Triple-drive brass terminal screws and plated steel mounting screws
• Compliant with ANSI C-73, UL 498, Fed Spec W-C-596, CSA C22.2 No. 42
• Certified by cULus and NOM-ANCE
• RoHS compliant
