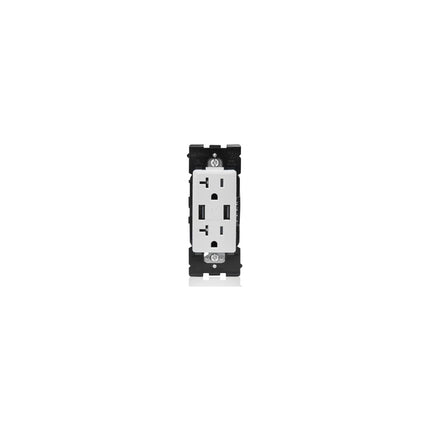

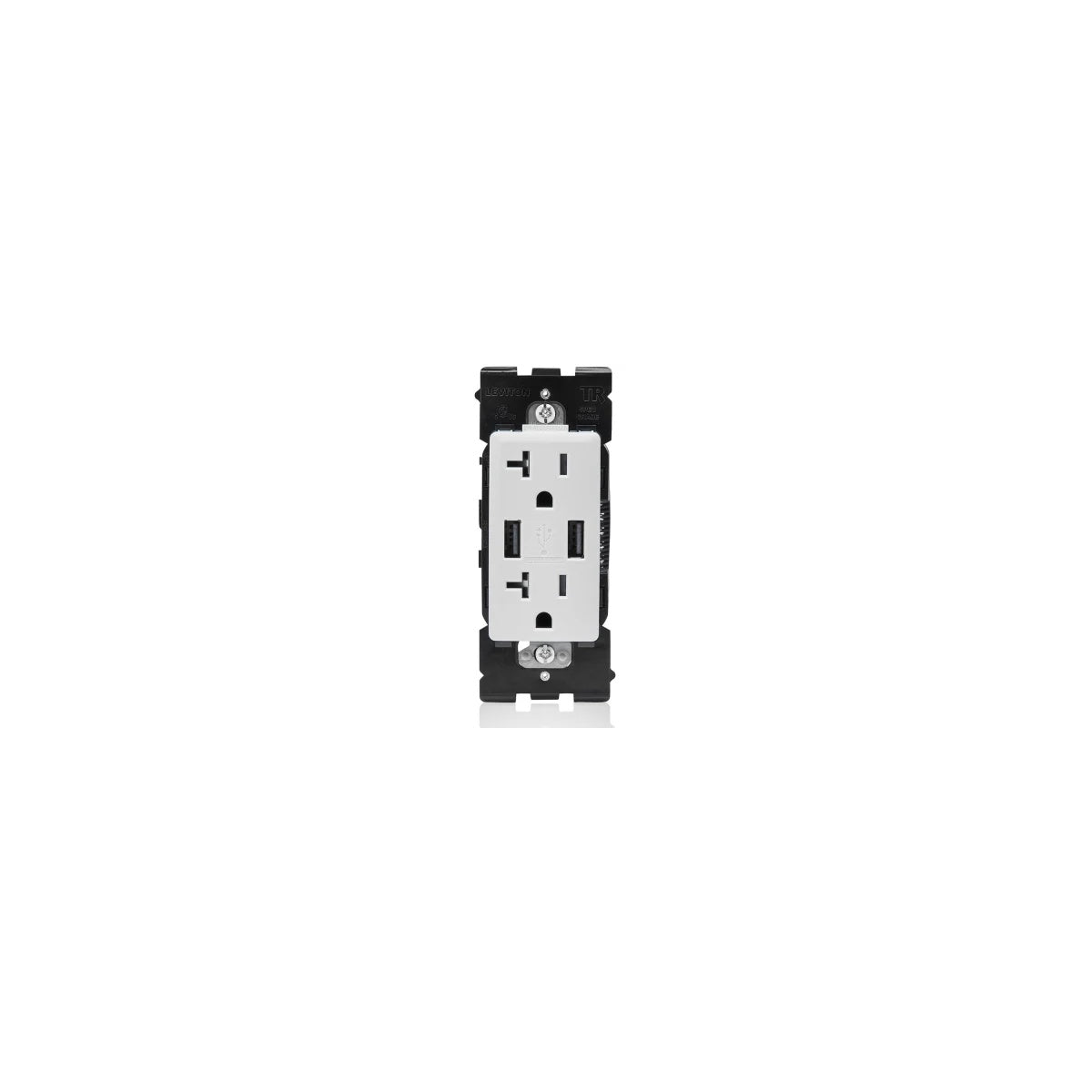

LEVITON RUAA2-WW DUR WW BX1/00/050 USB Duplex Outlet

The Leviton RUAA2-WW is a combination USB charger and tamper-resistant duplex receptacle designed for residential electrical applications. It provides two high-powered USB ports delivering 3.6A of charging power alongside two 15A or 20A/125V tamper-resistant receptacles, enabling simultaneous charging of USB-powered devices while maintaining standard outlet functionality. This device is suitable for use in lighting solutions, wire and cable installations, and as part of switchgear supplier offerings for residential electrical distributors.

Specifications

• Amperage: 20 Amp
• Receptacle Voltage: 125V AC
• Horsepower Rating: 15A-1/2 HP
• Ratings: 15A-125V
• USB Charging Output: 3.6 Amps, 5VDC, 2.0 Type A USB Chargers
• Grounding: Self-Grounding Clip and Green Ground Screw
• Operating Temperature: -10¬∞C to 40¬∞C
• Flammability Rating: V-0 per UL94
• Strap Material: Steel
• Body Material: Thermoplastic
• Cover Material: Thermoplastic
• Termination: Back and Side Wired
• Terminal Accommodation: 14-12 AWG
• Torque Range: 12-14 inch pounds
• Device Type: USB Duplex Outlet
• Color: White on White
• NEMA Configuration: 5-15R
• Grade: Residential
• Warranty: 5 Year Limited
• Certifications: cCSAus Listed, FCC Part 15 Class B, NOM 057

Features

• Two high-powered USB ports for charging tablets, smartphones, gaming devices, and other electronics
• Tamper-resistant receptacles enhance safety in residential environments
• Color change kit (RKAA2) allows easy faceplate color updates without rewiring
• Self-grounding design with green ground screw for reliable grounding
• Durable thermoplastic construction with steel strap for mechanical strength
• Back and side wiring options for flexible installation
• Part of the Leviton Renu collection offering a wide range of decorative electrical devices
