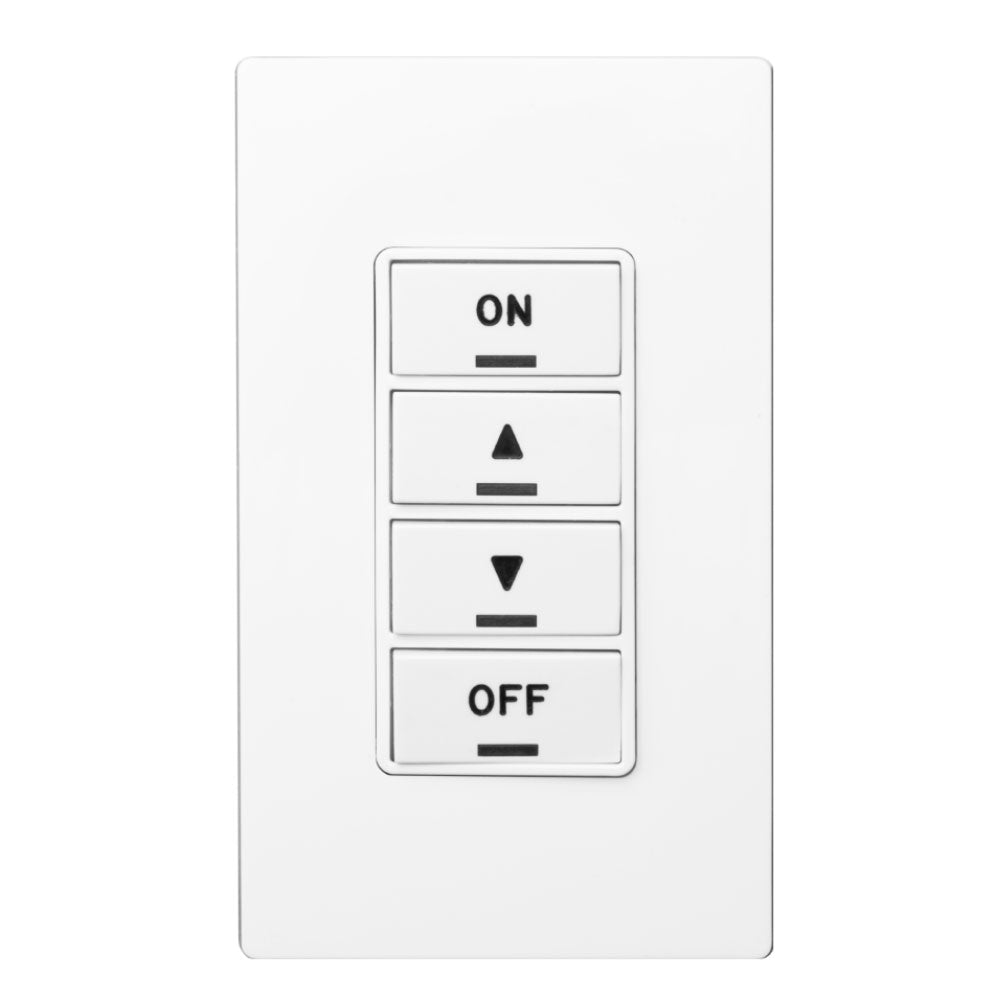

LEVITON RLVSW-4LW WH IRC LV DIM SW 4-BTN BX Low Voltage Switch

The Leviton RLVSW-4LW is a 4-button low voltage switch designed for use with the Integrated Room Control (IRC) energy management system. It provides precise control of dimmable luminaires connected to the IRC controller, enabling efficient lighting management in commercial electrical distribution and lighting solutions. This device supports multi-function operation including ON, Bright, Dim, and OFF commands, making it suitable for wire and cable low voltage control applications within switchgear supplier systems.

Specifications

• Input Voltage: 24 VDC
• Input Current: 24 mA
• Operating Temperature Range: 0°C to 55°C
• Relative Humidity: < 90% non-condensing
• Product Weight: 1.92 lbs

Features

• 4-button configuration with ON, Bright, Dim, and OFF functions
• Controls all zones for daylight harvesting and dimming
• Supports programming of daylight photocell target level and minimum lighting level
• Analog low voltage entry station wired directly to IRC controller terminals
• Compatible with IRC system for integrated energy management and lighting control
• Includes matching white wallplate; alternate colors available via color change kits
• Enables multi-zone lighting control with simple, intuitive operation
• Allows parallel wiring for three-way applications
