LEVITON RGF20-NS RENU 20A TR GFCI RCPT NAVAJO SAND
SKU: #36333
Part: #RGF20-NS
UPC: 078477797518
LEVITON RGF20-NS RENU 20A TR GFCI RCPT NAVAJO SAND
SKU: #36333
Part: #RGF20-NS
UPC: 078477797518
Description

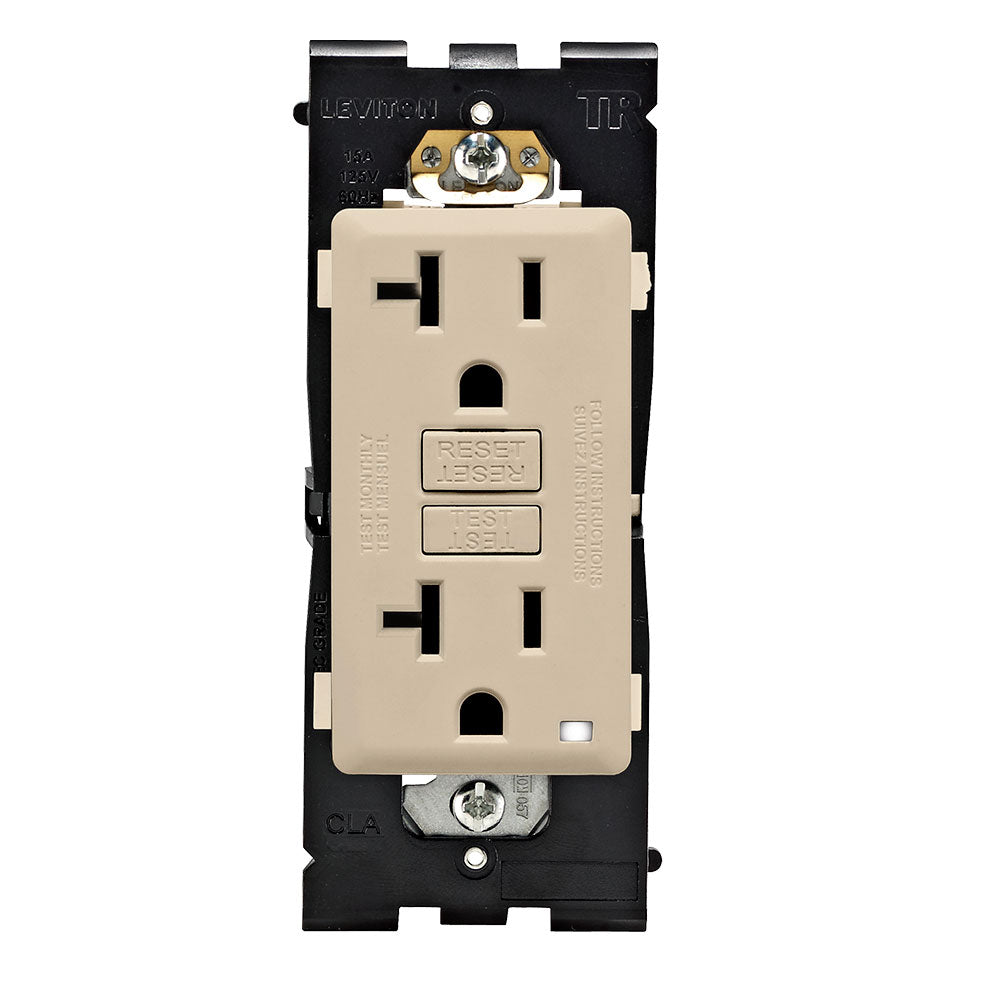

LEVITON RGF20-NS RENU 20A TR GFCI RCPT Navajo Sand - GFCI Receptacle
The Leviton RENU 20A Tamper-Resistant GFCI Receptacle is designed for residential electrical safety applications, providing ground fault circuit interruption to protect against electrical shock. Ideal for installation in areas prone to dampness or near water, it meets NEC requirements and is suitable for use by electrical distributors and switchgear suppliers offering lighting solutions and wire and cable products. This device features a shallow design for easy installation in most wallboxes, including shallow ones, and supports both back and side wiring.
Specifications
- Rating: 20A-125V Feed-Through
- UL Listed (File #7458)
- CSA Certified (File #LR-3413)
- NOM Certified (#057)
- Operating Temperature: -40°C to 65°C
- Dielectric Voltage: Withstands 1500V for 1 minute
- Overload UL 20 Test: 100 cycles at 4.8 times rated current
- Endurance: 10,000 cycles resistive, inductive, and tungsten lamp loads
- Temperature Rise: Maximum 30°C at full rated current
- Horsepower Rating: 1/2 HP @ 120V, 2 HP @ 240V
- Terminal Accommodations: Up to #12 AWG back wired, up to #12 AWG side wired, #14 AWG quick wired
- Torque Recommendations: 12-14 inch pounds
- Color: Navajo Sand (-NS)
- Product Weight: 13.8 oz
Features
- Tamper-Resistant with built-in shutter mechanism to block access unless a two-prong plug is inserted
- Self-Test auto-monitoring system periodically verifies GFCI functionality
- Patented RESET lockout feature prevents resetting if GFCI is not operating properly
- Shallow depth design saves up to 25% space in wallbox for easier installation
- Self-grounded when installed in a properly grounded metal wallbox
- Back and side wiring options for fast and convenient installation
- Terminals designed to withstand high torque and resist wire pullout
- Innovative tongue and groove design for effortless alignment in multi-gang installations
- No subplate behind wallplate or visible mounting screws
- Faceplate easily snaps OFF and ON to change color; compatible with Renu color change kits
- Use only with Renu screwless wallplates (sold separately)
- Backed by a Five-Year Limited Warranty
