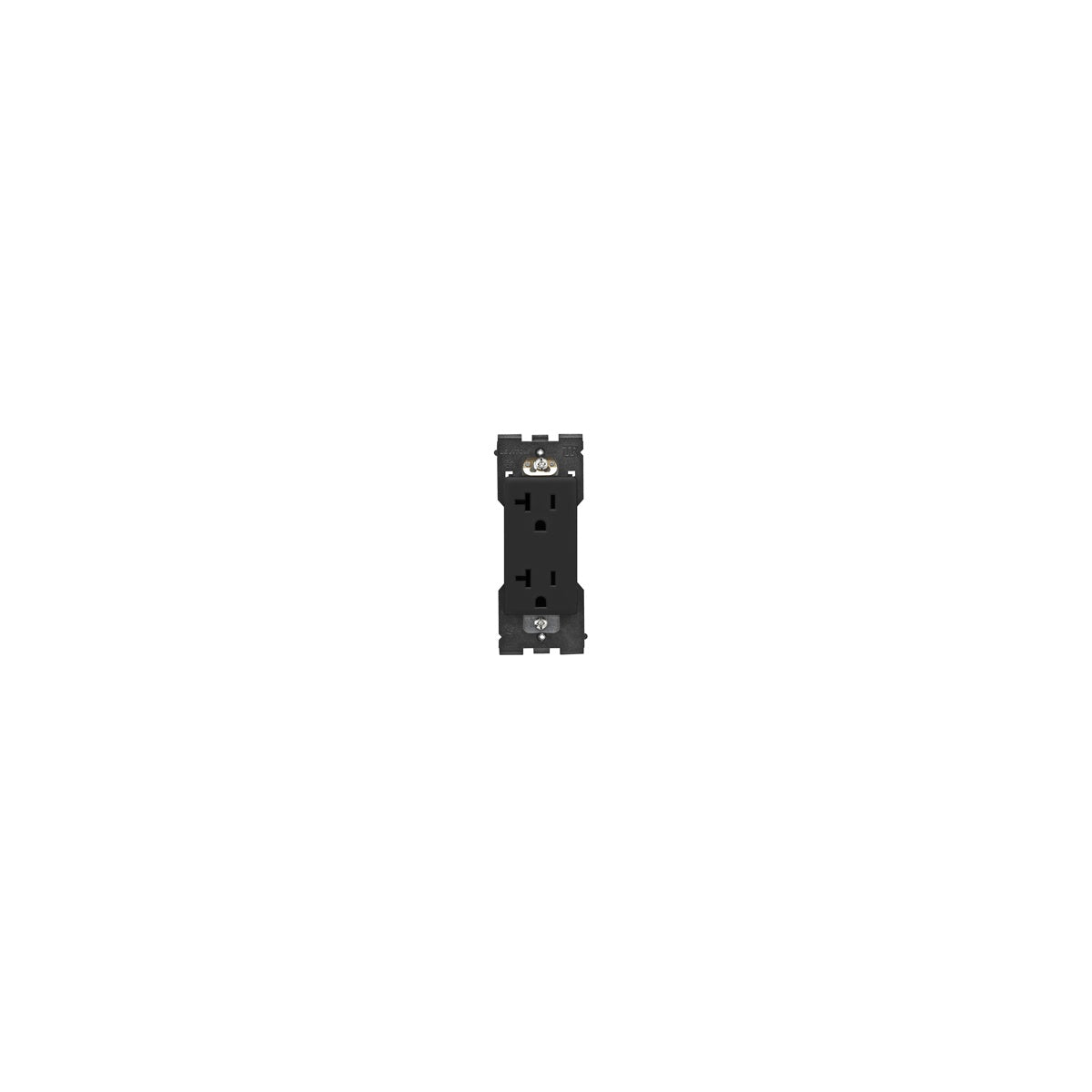

LEVITON RER20-OB RENU 520R TR RECEP ONYX BLACK Tamper-Resistant Receptacle

The Leviton RER20-OB Renu 520R Tamper-Resistant Receptacle in Onyx Black is designed for safe and convenient electrical distribution in residential and commercial settings. It features a shallow design for easy installation in any wallbox and is self-grounded when installed in a properly grounded metal wallbox. This receptacle supports both back and side wiring options, facilitating quick installation by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers.

Specifications

• Manufacturer: Leviton
• Manufacturer Part Number: RER20-OB
• Color: Onyx Black
• Product Weight: 1.93 lbs
• Rating: 20A, 125V
• Tamper-Resistant: Yes, built-in shutter mechanism
• UL Listed (File #7458)
• CSA Certified (File #LR-3413)
• NOM Certified (#057)
• Operating Temperature: -40°C to 65°C
• Dielectric Voltage: Withstands 1500V for 1 minute
• Endurance: 10,000 cycles resistive, inductive, and tungsten lamp loads
• Terminal Accommodations: Up to #12 AWG back wired, up to #12 AWG side wired, #14 AWG quick wired
• Torque Recommendations: 12-14 inch pounds

Features

• Shallow depth for easier installation in any wallbox
• Self-grounding when installed in a properly grounded metal wallbox
• Back and side wired for fast, easy installation
• Terminals designed to withstand high torque and resist wire pullout
• Tamper-Resistant to meet National Electrical Code® child safety requirements
• Innovative tongue and groove design for effortless alignment in multi-gang installations
• No subplate behind the wallplate or visible mounting screws
• Receptacle face easily snaps off and on to change color with available color change kits
• Compatible with Renu screwless wallplates (sold separately)
• Backed by a Five-Year Limited Warranty
