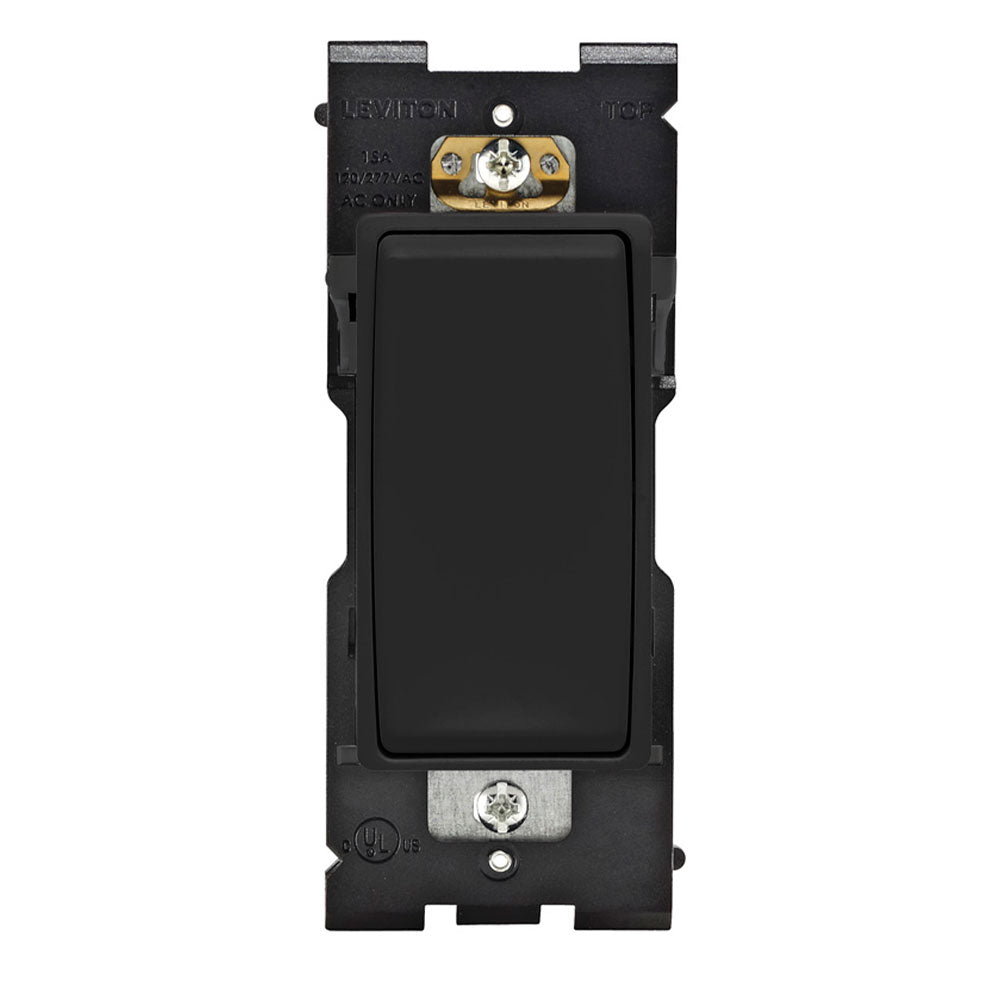

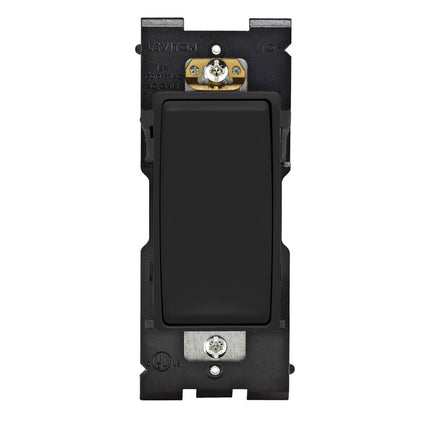

LEVITON RE153-OB RENU 3-Way Switch Onyx Black

The LEVITON RE153-OB is a 3-way switch designed for controlling lighting from multiple locations. It features a shallow design for easy installation in any wallbox and is self-grounded when installed in a properly grounded metal wallbox. This switch is suitable for use by electrical distributors and switchgear suppliers seeking reliable lighting solutions and wiring components in Onyx Black color.

Specifications

• Rating: 15A-120/277VAC
• Color: Onyx Black
• Material Characteristics: UL-94 V-2 Flammability Rating
• Operating Temperature: -40˚C to 65˚C
• Dielectric Voltage: Withstands 1500V for 1 minute
• Endurance: 10,000 cycles resistive, inductive, and tungsten lamp loads
• Horsepower: 15A-1/2HP @ 120V, 2HP @ 240V
• Terminal Accommodations: Up to #12 AWG back wired or side wired, #14 AWG quick wired
• Torque Recommendations: 12-14 inch pounds
• UL Listed, CSA Certified, NOM Certified

Features

• Shallow depth for easier installation
• Self-grounded when installed in a properly grounded metal wallbox
• Back, side, and Quickwire™ wiring options for fast installation
• Terminals designed to withstand high torque and resist wire pullout
• 3-way switch functionality for controlling lights from multiple locations
• Innovative tongue and groove design for effortless alignment in multi-gang installations
• No subplate behind the wallplate or visible mounting screws
• Switch face easily snaps off and on to change color
• Compatible with Renu screwless wallplates (sold separately)
• Backed by a Five-Year Limited Warranty
