LEVITON PE400-10W WH POWER EXTENDER 120V/1000W/VA ELV

The Leviton PE400-10W Power Extender is designed to extend the dimming zone capacity for electronic low voltage and incandescent lighting loads. It enables electrical distributors, lighting solutions providers, and switchgear suppliers to control higher and different types of loads with dimmers and architectural dimming systems than would otherwise be possible. This model operates at 120VAC with a load rating of 1000W/VA and is compatible with various dimmers, ensuring smooth dimming and brightness control.

Specifications

• Input Voltage: 120VAC 50/60Hz
• Load Rating: 1000W/VA
• Dimmer Input: 120V 60Hz
• Product Weight: 2.2 lbs
• Manufacturer Part #: PE400-10W
• Color: White

Features

• Emulates characteristics of connected dimmers in terms of dimming range and resolution
• Includes low-end trim adjustment for setting minimum brightness level
• LED indicator for “load on” notification

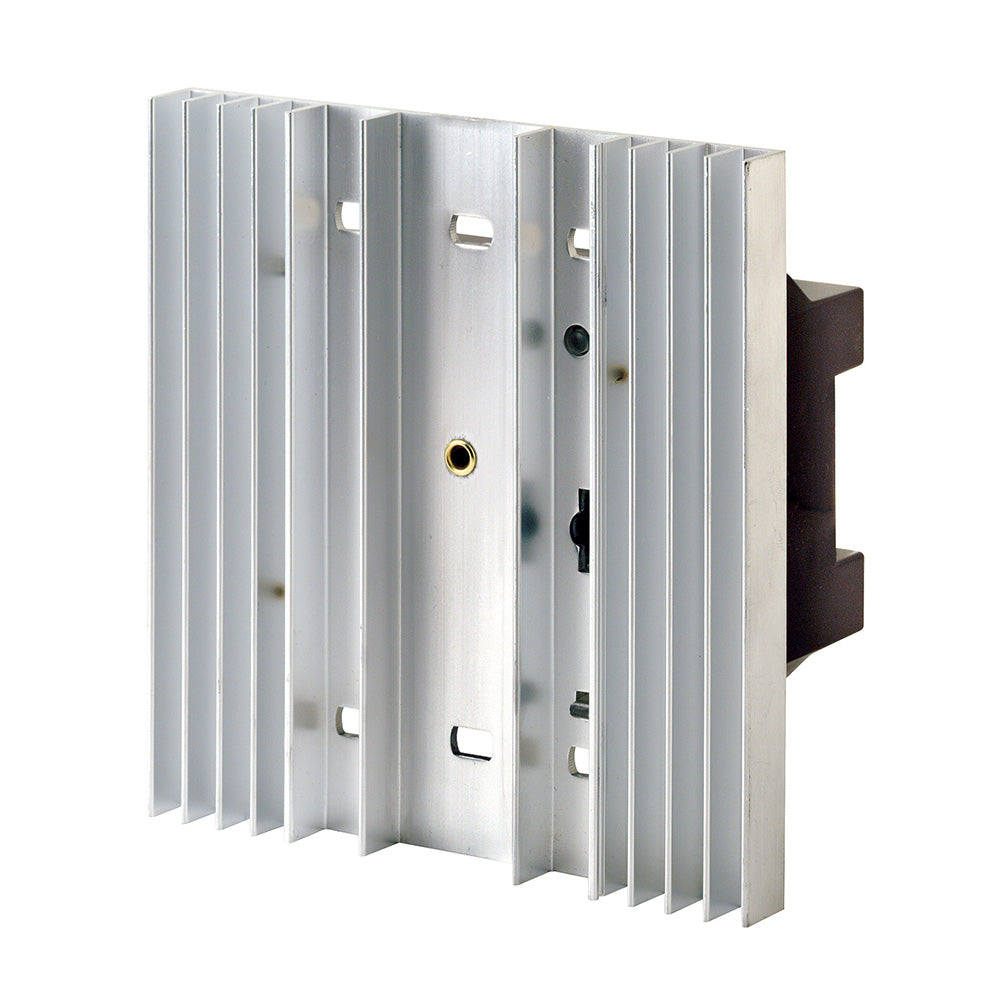

• Extruded aluminum heat sink for effective heat dissipation
• Compatible with electronic low-voltage and incandescent loads up to 1000W/VA
• Supports surface or flush mounting in standard 1900 box or metal 2-gang wall box
• UL Listed for safety and compliance
• Works with Dimensions 3200 Series Multizone Controllers and various architectural dimming systems
