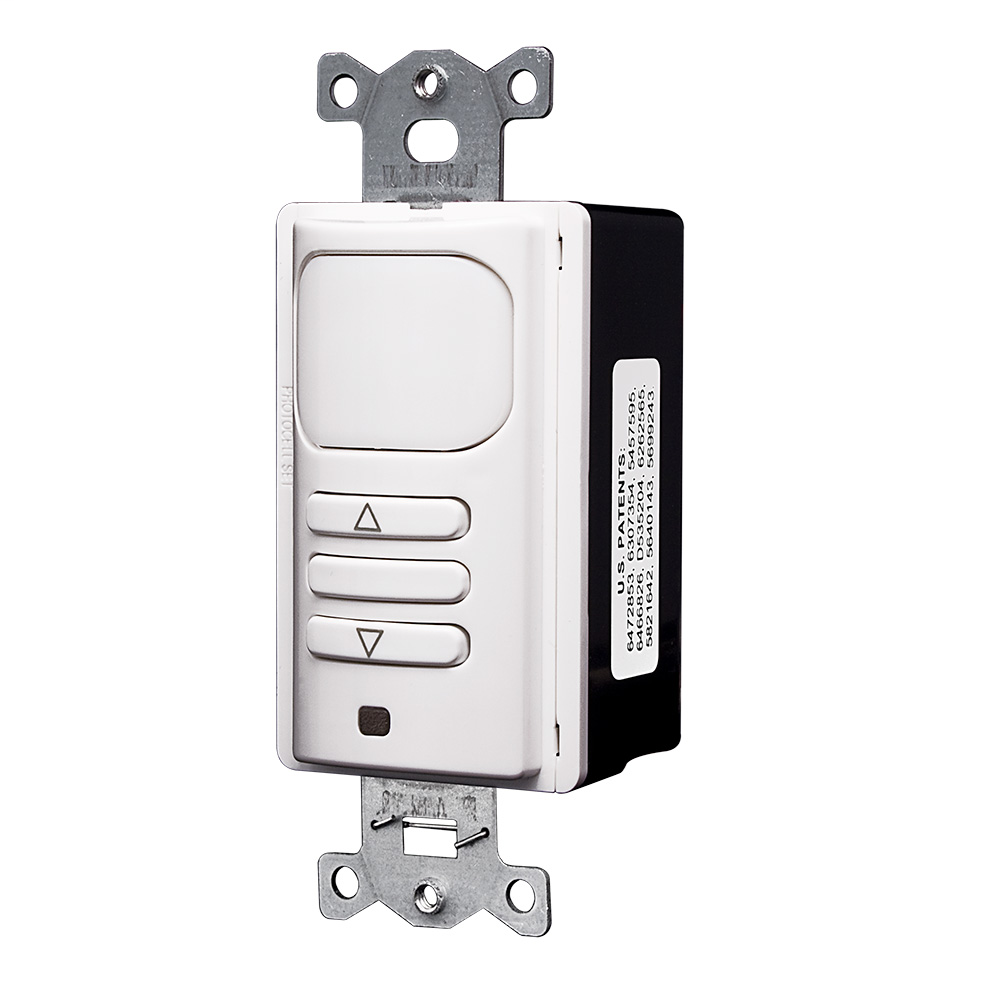

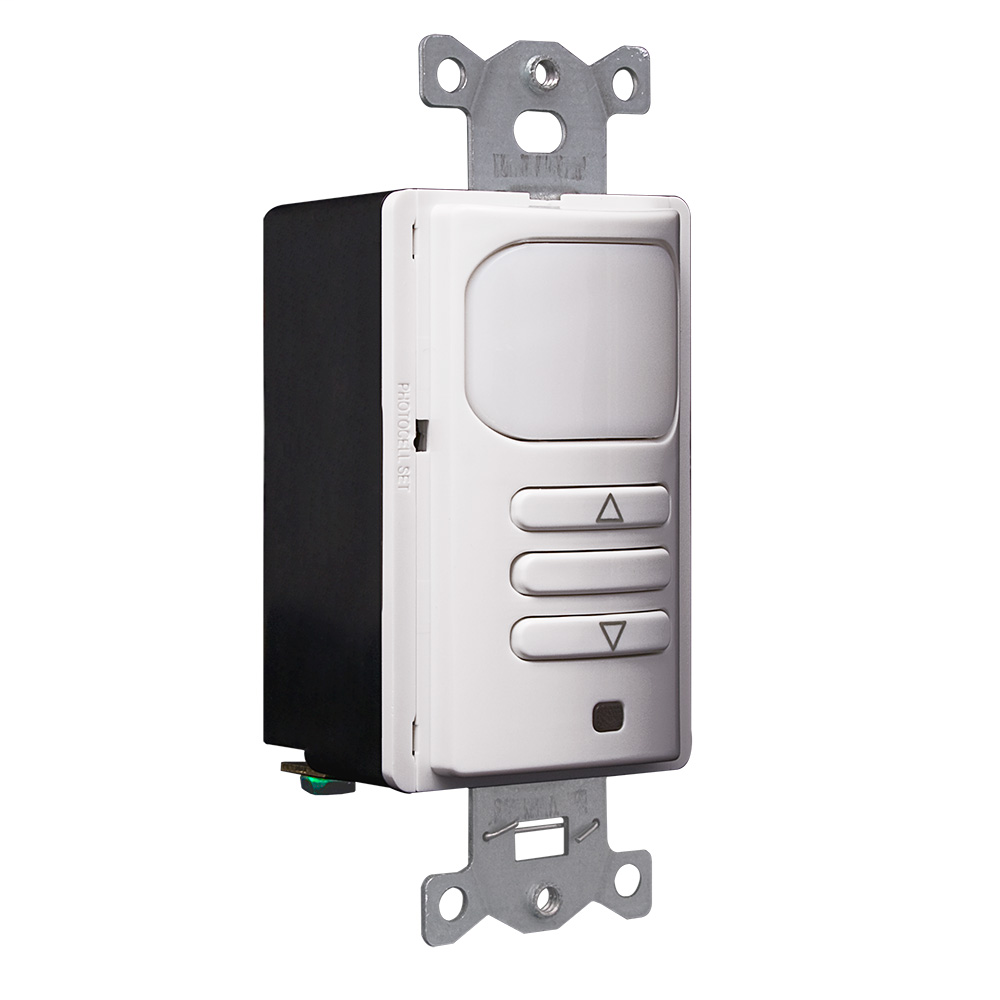

LEVITON OSD10-I0W WH 0-10V Dim PIR Wall Occupancy Sensor

The Leviton OSD10-I0W is a 0-10V Passive Infrared (PIR) dimming wall switch sensor designed for energy-efficient lighting control in indoor commercial environments. It integrates occupancy sensing with dimming capabilities, making it suitable for applications such as small offices, lobbies, meeting rooms, and restrooms. This device is ideal for electrical distributors and lighting solutions providers seeking reliable occupancy sensors compliant with modern energy codes.

Specifications

• Power Requirements: 120/277VAC, 50/60Hz
• Electrical Ratings (120VAC): 800W Electronic Ballast/LED Driver, 1000W Magnetic Ballast, 1/6 HP Motor
• Electrical Ratings (277VAC): 1800W Electronic Ballast/LED Driver/Magnetic Ballast, 1/6 HP Motor
• Coverage Area: 1,000 square feet, 180° field of view
• Photocell Range: 10 to 500 Foot Candles (107.63 to 5381.96 Lux)
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Operating Environment: Indoor only
• Relative Humidity: 0-95% non-condensing
• Dimensions: 4.2” H x 1.8” W x 1.75” D (106.68mm x 45.42mm x 44.45mm)
• Color: White
• Construction: High-impact, injection-molded plastic with impact resistant lens
• Country of Origin: China
• Listings: UL and cUL listed; compliant with ASHRAE 90.1, 2016 Title 24, Part 6 occupancy sensing requirements, IECC
• Warranty: Limited five-year warranty

Features

• Self-adaptive technology with no manual adjustment required
• Selectable operating modes: Auto-ON/OFF and Manual-ON/Auto-OFF
• Adjustable time delay with adaptive timer (4-30 minutes) and fixed timer options (4, 8, 15, 30 minutes)
• Test mode with 5-second timeout for simplified commissioning
• No minimum load requirement and zero arc point switching for extended relay life
• Integral photocell for daylight harvesting with adjustable ambient light level (10 to 500FC)
• Maintenance-free, install-and-forget operation
• Single relay module for single-level switching
