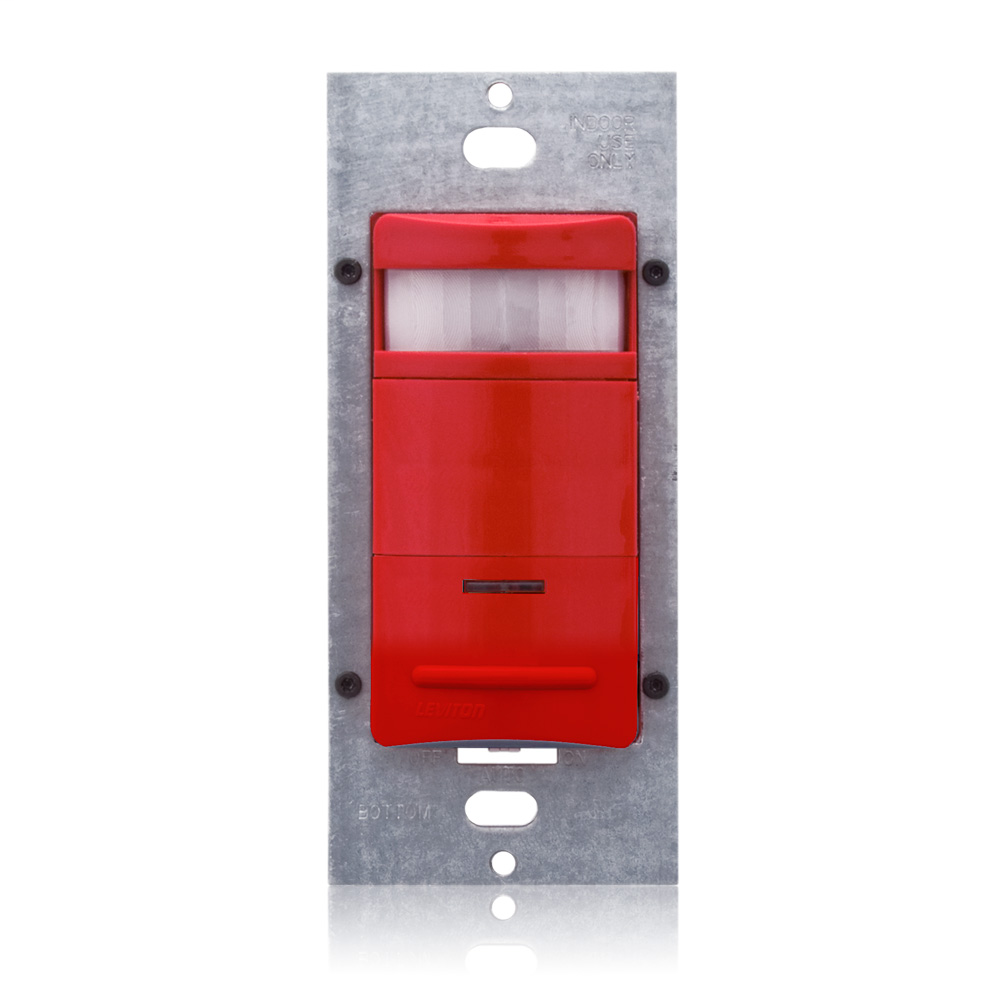

LEVITON ODS10-INR RD PIR OCC SNSR NAFTA Occupancy Sensor

The LEVITON ODS10-INR RD PIR Occupancy Sensor is a wall switch sensor designed to detect motion within a coverage area of up to 2100 square feet. It automatically controls lighting by turning lights ON when motion is detected and OFF after a preset time-out when no motion is sensed. Ideal for use by electrical distributors and lighting solutions providers, this device integrates seamlessly into standard single gang wallboxes and supports applications requiring efficient lighting control. It operates at 50/60 hertz frequency and is manufactured in Mexico, meeting UL and CSA certifications as well as California Title 24 compliance.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: ODS10-INR
• Color: Red
• Coverage Area: 2100 square feet
• Frequency: 50/60 hertz
• Country of Origin: Mexico
• Product Weight: 0.32 lbs
• UPC: 078477515884

Features

• Passive Infrared (PIR) motion detection for reliable occupancy sensing
• Automatic lighting control with adjustable time-out settings (factory preset to 10 minutes)
• Low profile, tamper-resistant lens design
• Ambient light override to prevent lights from turning ON when sufficient daylight is present
• Compatible with electronic and magnetic ballasts, incandescent lamps, and fans
• Push-button manual override for ON/OFF control
• Adjustable field-of-view with blinders to prevent unwanted activation
• UL listed and CSA certified, compliant with California Title 24 requirements

Downloads & Links

• Instruction Sheet
• Specification (AIA) - Occupancy Sensors
• Compliance Letter - NAFTA
• Technical Article - Occupancy Sensors and Fluorescent Lamp Life
• Application Note - IECC VS ASHRAE 90.1-2001
• Technical Article - Microphonics and Occupancy Sensors
• Instruction sheet - French - Spanish
• Application Note - ADA and FDA Ultrasonic and MultiTechnology
• Application Note - Changes in Title 24
• Application Note - Energy Policy Act of 2005
• Technical Article - PIR and US Occupancy Sensor Technologies
• Product Specification and Data Sheet
• Application Note - How Leviton is Ready to Help You Achieve Leed Points
• Reference - Occupancy Sensor Technology Intro
• Application Note - IRS AND ENERGY MANAGEMENT OFFICIAL STATEMENT
