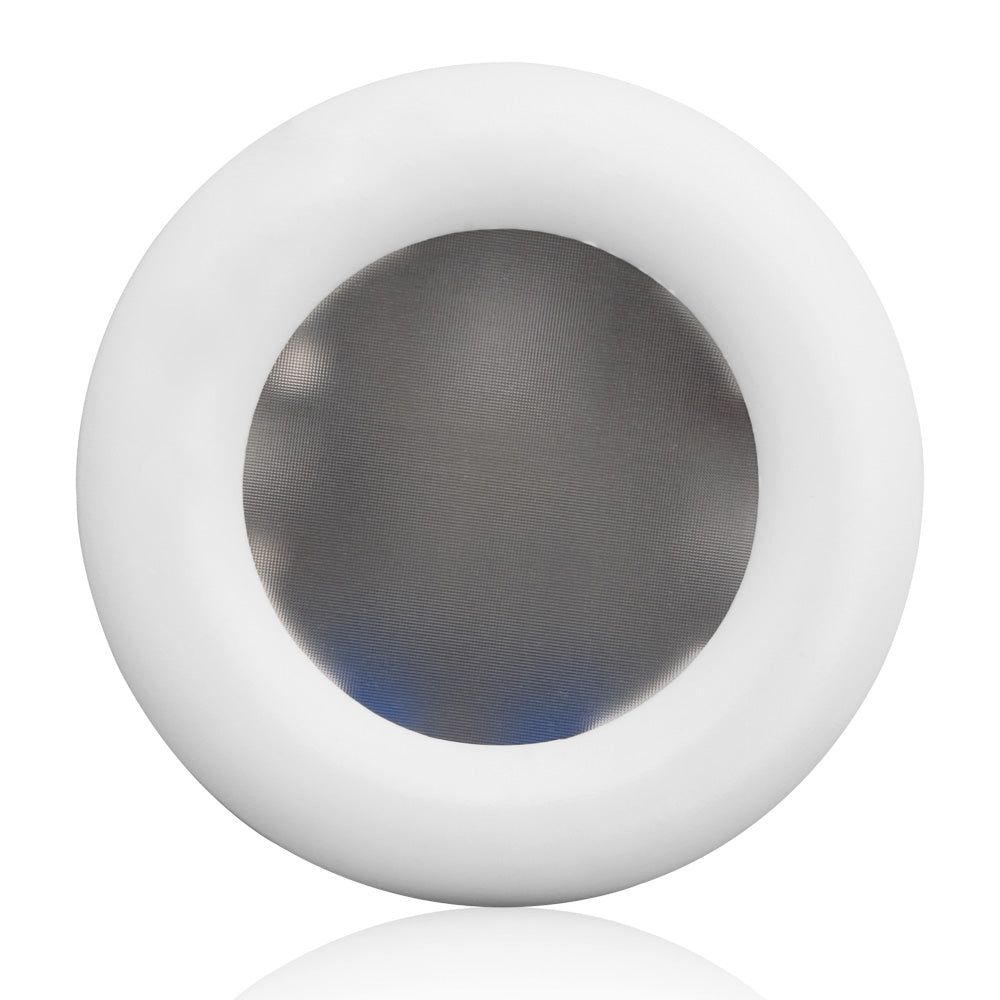

LEVITON ODC0P-D0W WH DIM LV PHOTOCELL 0-1500FC 1-10VDC
SKU: #33764
Part: #ODC0P-D0W
UPC: 078477705070
LEVITON ODC0P-D0W WH DIM LV PHOTOCELL 0-1500FC 1-10VDC
SKU: #33764
Part: #ODC0P-D0W
UPC: 078477705070
Description
LEVITON ODC0P-D0W WH DIM LV PHOTOCELL 0-1500FC 1-10VDC Daylight Harvesting Controller
The Leviton ODC0P-D0W is an indoor daylight harvesting controller designed for precise dimming control of 1-10V ballasts or LED drivers. It continuously adjusts lighting levels based on natural and artificial light contributions within spaces that have windows, such as corridors, bathrooms, airport lobbies, and conference rooms. This device is suitable for electrical distributors and lighting solutions providers seeking energy-efficient control components compatible with Leviton lighting control systems. It requires hardwiring to a Leviton OPP Power Pack for 12-24V power and relay control, providing compliance with energy codes and enabling significant energy savings through automated daylight harvesting.
Specifications
- Manufacturer: Leviton
- Manufacturer Part #: ODC0P-D0W
- Photocell Type: Dimming Photocell
- Color: White
- Input Voltage: 12-24 VDC ±10%
- Current Consumption: Approximately 10mA
- Photocell Sensing Range: 1-16,000 Lux (1-1600fc equivalent)
- Weight: 1.2 lbs
- Field of View: 60° cone
- Mounting Options: Surface mount, flush mount, or 4" round/octagonal outlet box
- Wiring: Class 2 wiring per NEC guidelines
Features
- Continuous dimming control between 1-10V based on ambient light levels
- Manual and automatic calibration modes for precise daylight design level setting
- Adjustable dimming fade rate for smooth light level transitions
- Closed-loop daylight harvesting for maintaining constant lighting levels in controlled areas
- Compatible with Leviton lighting control products and power packs for integrated energy management
- Automatic hands-free daylight harvesting reduces electric lighting usage when sufficient natural light is present
- LED indicators for calibration status, device operation, and troubleshooting
- Designed for indoor use only with copper or copper-clad wiring
- IP54 rated for protection against dirt, dust, oil, and non-corrosive materials (typical for Leviton photocells)
- Supports compliance with energy codes and enhances productivity through optimized lighting control
