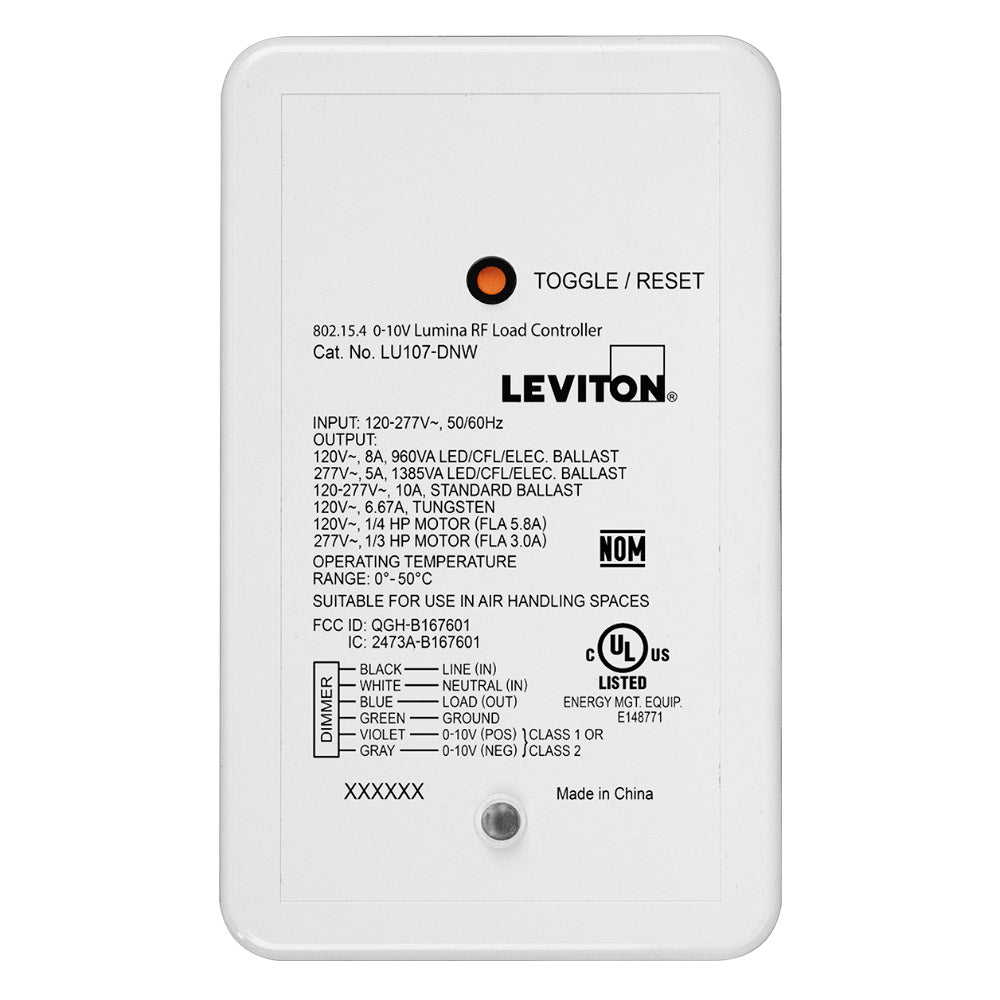

LEVITON LU107-DNW Wireless Phase 0-10V Dimmer – Lighting Control Solutions

The LEVITON LU107-DNW is a wireless phase 0-10V dimmer designed for precise lighting control applications. It is suitable for use in electrical distribution and lighting solutions, providing compatibility with various load types including LED, CFL, electronic ballasts, and motors. This dimmer supports integration into advanced wire and cable setups and is ideal for use by switchgear suppliers and electrical distributors seeking reliable load control in commercial or industrial environments.

Specifications

• Input Voltage: 120-277V~, 50/60Hz
• Output Ratings:
  • 120V~, 8A, 960VA LED/CFL/Electronic Ballast
  • 277V~, 5A, 1385VA LED/CFL/Electronic Ballast
  • 120-277V~, 10A Standard Ballast
  • 120V~, 6.67A Tungsten
  • 120V~, 1/4 HP Motor (FLA 5.8A)
  • 277V~, 1/3 HP Motor (FLA 3.0A)
• Operating Temperature Range: 0° to 50°C
• Product Weight: 0.3540 lbs
• Certifications: UL Listed, NOM Certified

Features

• Wireless 0-10V Lumina RF Load Controller compliant with 802.15.4 standard
• Toggle/reset button for manual control and configuration
• Suitable for use in air handling spaces
• Color-coded wiring for easy installation: Black (Line In), White (Neutral In), Blue (Load Out), Green (Ground), Violet (0-10V Positive), Gray (0-10V Negative)
• Energy management equipment compliant
