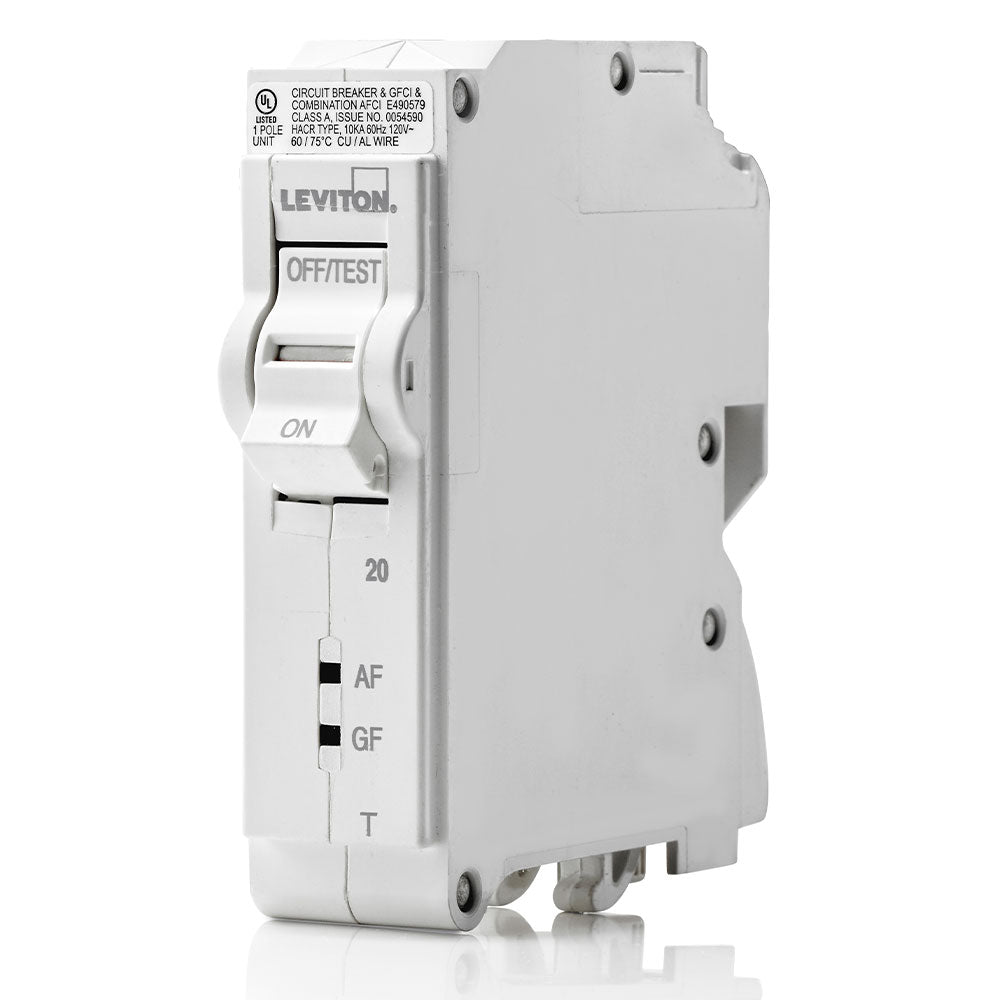

LEVITON LB120-DFT 20A 1-POLE TM AFCI/GFCI Breaker

The Leviton LB120-DFT is a 20 Amp, single-pole combination Arc Fault Circuit Interrupter (AFCI) and Ground Fault Circuit Interrupter (GFCI) branch circuit breaker designed for residential electrical distribution. This device provides dual-function protection against arc faults and ground faults, enhancing electrical safety in residential applications. Suitable for use by electrical distributors and switchgear suppliers, it integrates into load centers to protect branch circuits in compliance with electrical codes.

Specifications

• Manufacturer: Leviton
• Manufacturer Part Number: LB120-DFT
• Rating: 20 Amps
• Poles: 1-Pole
• Voltage: 120V
• Type: Combination AFCI/GFCI breaker
• Product Weight: 0.54 lbs
• UPC: 078477644836
• Wire Gauge Compatibility: #4 AWG - #14 AWG copper or copper-clad wire
• Torque Specifications: 35 in-lbs for #10-#14 AWG, 45 in-lbs for #4-#8 AWG (load and neutral terminals)
• Short-Circuit Rating: 10kA
• Application: Residential single-phase 120/240 VAC grounded system

Features

• Dual-function protection combining arc fault and ground fault interruption
• LED status indicators for arc fault (AF) and ground fault (GF) conditions, visible even when tripped
• Reset lockout feature prevents breaker from being turned on if internal self-test fails
• Compatible with copper or copper-clad wire only; not for use with shared neutral circuits
• Installation requires a licensed electrician and must comply with electrical codes
• Includes test instruction label and occupant test reminder card
• Designed to reduce nuisance tripping by avoiding connection to legacy swimming pool equipment
• UL Listed and compliant with FCC and Industry Canada regulations
