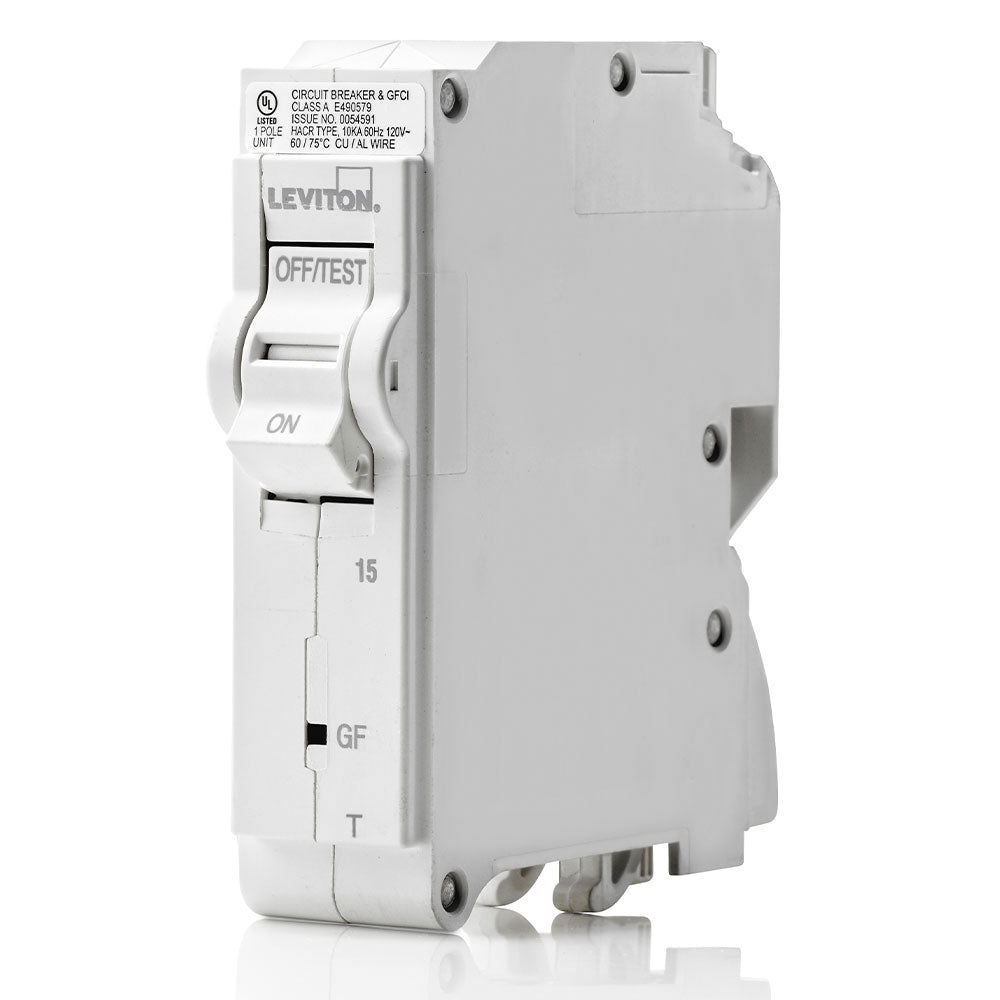

LEVITON LB115-GFT 15A 1-POLE TM√° GFCI BRKR Ground Fault Circuit Breaker

The Leviton LB115-GFT is a 15 Amp, 1-pole Ground Fault Circuit Interrupter (GFCI) branch circuit breaker designed for residential electrical distribution panels. It provides personnel protection by detecting ground faults with a 5 mA trip sensitivity and interrupting the circuit to prevent electrical shock hazards. This breaker is suitable for use in single-phase 120 VAC systems and is compatible with copper or copper-clad wire installations. As a key component for electrical distributors and switchgear suppliers, it ensures safety and code compliance in residential wiring and lighting solutions.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: LB115-GFT
• Amperage Rating: 15A
• Poles: 1-Pole
• Voltage: 120V
• Ground Fault Trip Sensitivity: 5 mA
• Short Circuit Rating: 10kA
• Wire Compatibility: Copper or copper-clad wire only
• Product Weight: 0.52 lbs
• UPC: 078477644843

Features

• Provides ground fault protection for personnel in residential applications
• Includes a test/reset handle with LED status indicators for operational and fault diagnostics
• Internal electronics powered from line side, allowing LED indication even when breaker is tripped
• Reset lockout feature prevents breaker from being turned on if internal self-test fails
• Installation requires connection of load neutral to the neutral terminal, not main neutral
• Designed for use only in permanently installed and listed enclosures
• Complies with UL standards and FCC Class B digital device requirements
• Includes monthly test instructions to ensure continued protection
