Description

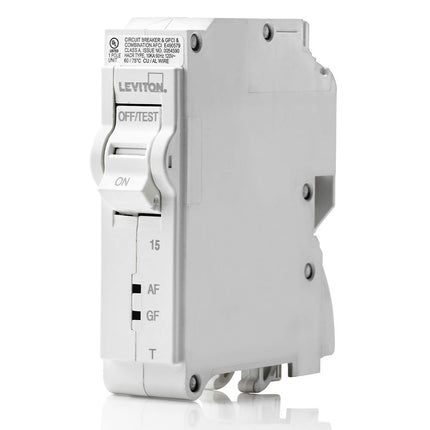

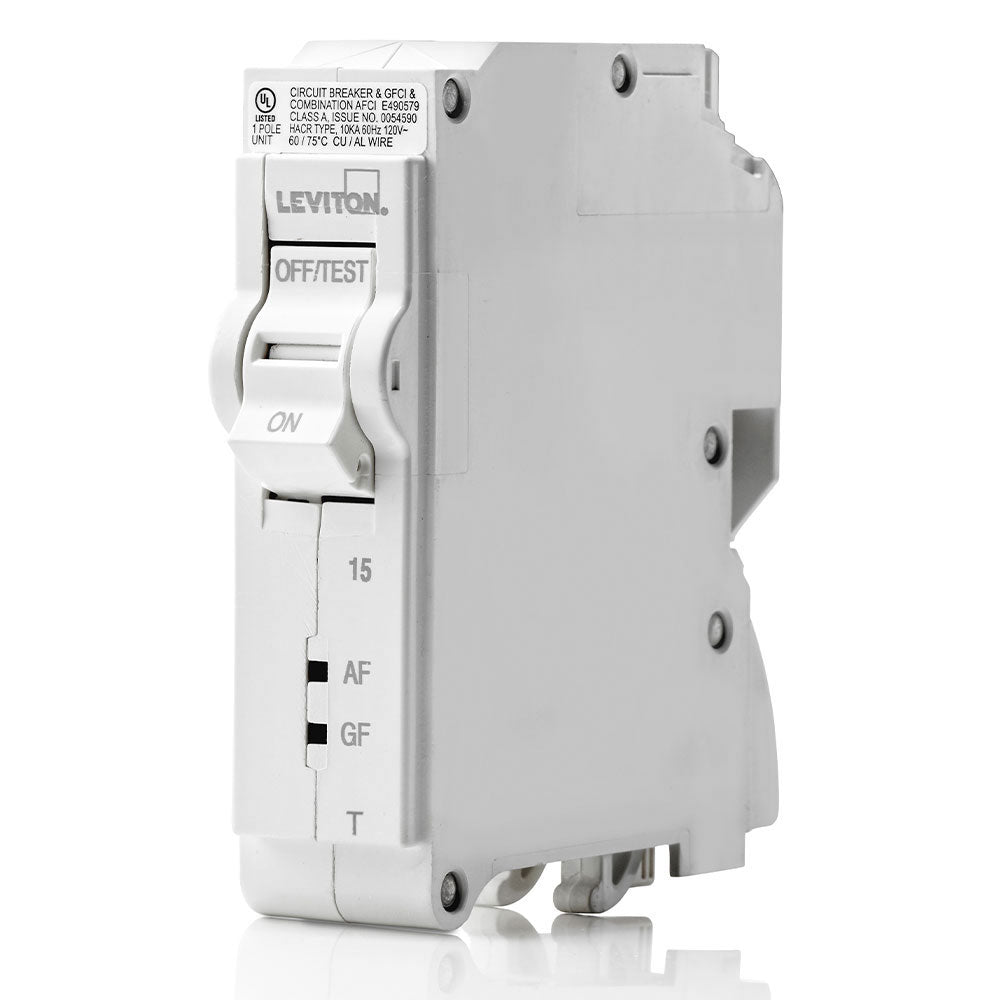

LEVITON LB115-DFT 15A 1-POLE TM AFCI/GFCI Breaker
The Leviton LB115-DFT is a dual-function 15 Amp, 1-pole branch circuit breaker combining Arc Fault Circuit Interrupter (AFCI) and Ground Fault Circuit Interrupter (GFCI) protection. Designed for residential electrical distribution, it provides enhanced safety by detecting both arc faults and ground faults on a single-phase 120/240 VAC system. This breaker is suitable for use in load centers and panels supplied by electrical distributors and switchgear suppliers focused on advanced lighting solutions and wire and cable safety.
Specifications
- Manufacturer: Leviton
- Manufacturer Part #: LB115-DFT
- Rating: 15 Amp
- Poles: 1 Pole
- Voltage: 120/240 VAC, single phase
- Short-Circuit Rating: 10kA
- Product Weight: 0.52 lbs
- UPC: 078477644829
Features
- Dual-function breaker providing both AFCI and GFCI protection
- Integral LED indicators for arc fault (AF) and ground fault (GF) status
- Reset lockout feature prevents breaker from being turned ON if internal self-test fails
- Compatible with copper and copper-clad wire only
- Designed for residential use on grounded single-phase 120/240 VAC systems
- Handle window with color-coded LED diagnostics to indicate operational status and trip conditions
- Installation requires connection of load neutral to dedicated neutral terminal (not main neutral)
- Complies with UL standards and includes safety instructions to prevent false trips and ensure proper installation
