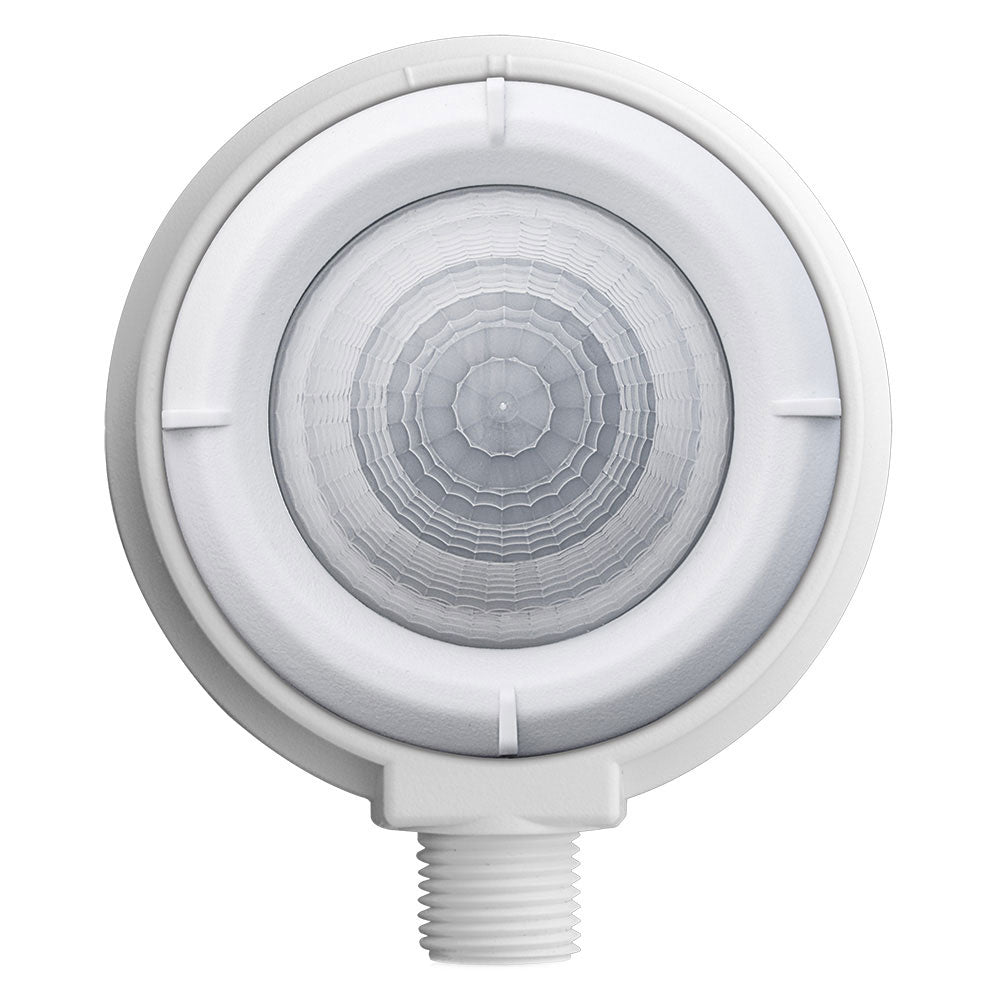

LEVITON HBE11-IUB WH DIM PIR Occupancy Sensor for Lighting Solutions

The LEVITON HBE11-IUB is a 0-10V dimming occupancy sensor designed for industrial and commercial lighting control. It is suitable for mounting directly on fluorescent fixtures or electrical junction boxes to manage 0-10V dimmable ballasts. This sensor is IP65 rated, making it ideal for indoor and outdoor wet locations, including wash down environments, and supports voltage levels of 120/277/347VAC. It is a reliable choice for electrical distributors and switchgear suppliers seeking effective occupancy-based lighting control solutions.

Specifications

• Manufacturer Part #: HBE11-IUB
• Voltage Rating: 120/277/347VAC, 60Hz
• IP Rating: IP65 Compliant
• Operating Temperature: -40¬∞ to 149¬∞F (-40¬∞ to 65¬∞C)
• Load Ratings: 800W tungsten or standard ballast / 600W electronic ballast at 120VAC; 1200W ballast at 277VAC; 1500W ballast at 347VAC; motor load 1/4-HP @ 120V, 1/6-HP @ 347V
• Timer Delay Settings: 4, 8, 16, 30 minutes (adjustable via DIP switches)
• Daylight Sensor Range: 1 FC to 50 FC or 5 FC to 500 FC (selectable)
• Product Weight: 11 lbs
• UPC Code: 078477705858

Features

• Controls 0-10V dimmable ballasts for daylight harvesting applications
• Interchangeable high/low area detection lenses available for 360¬∞ or aisle patterns (lenses sold separately)
• Adjustable unoccupied dimming presets: 70%, 60%, 50%, and 20%
• Selectable downward or upward facing daylight sensor via DIP switch
• Full OFF timer delay option with 8-second test mode and multiple timeout settings
• Water-tight, gasketed enclosure suitable for wet and low-temperature outdoor environments
• Meets energy code requirements including ASHRAE 90.1, California Title 24, and IECC
• UL and cUL Listed for safety and compliance
