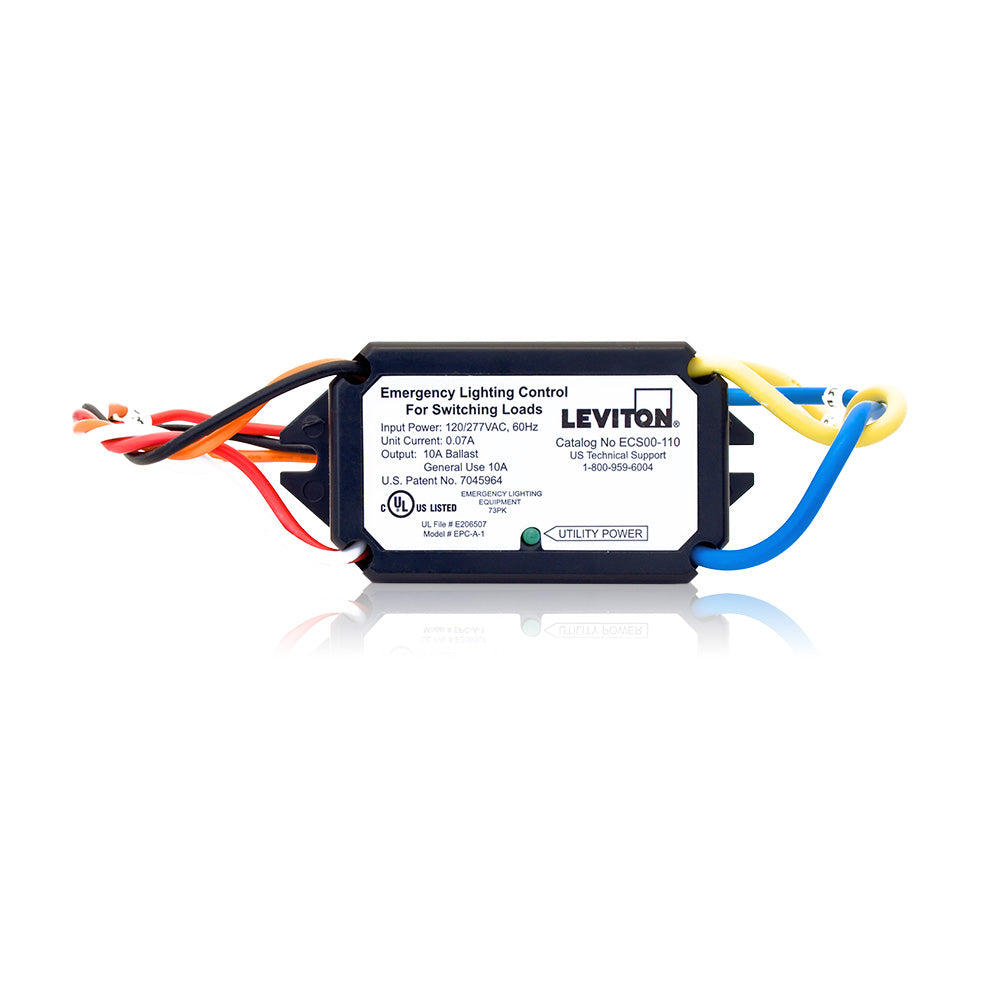

LEVITON ECS00-110 Emergency Lighting Control

The Leviton ECS00-110 is an emergency lighting control designed for switching loads in lighting applications. It enables simultaneous control of regular and emergency luminaires through a single room switch, eliminating the need for a dedicated emergency room switch. This device is suitable for electrical distributors and lighting solutions providers requiring reliable emergency power control compatible with various switching controls, including occupancy sensors and relay panels.

Specifications

• Input Voltage: 120/277 VAC, 60 Hz
• Load Rating: 10 Amp
• Unit Current: 0.07 A
• Contact Type: Normally Closed (N.C.)
• Mounting: Universal Mount for wall or ceiling installation
• Dimensions: 3-3/4" (L) x 1-3/4" (W) x 1-1/2" (H) including mounting ears
• Color: Black
• Operating Temperature: 32¬∞F to 140¬∞F
• UL924 Listed Emergency Lighting Equipment
• UL94V-0 Flame Rating
• Shipping Weight: 8 oz

Features

• Automatic diagnostic function activates emergency luminaires for 2.5 seconds when the room switch is turned off to verify emergency power source and device operation
• Green LED indicator confirms availability of utility power and correct wiring
• Compatible with all switching controls including occupancy sensors, relay panels, and switches
• Allows local room switch or lighting control to turn on both regular and emergency luminaires simultaneously
• Can be mounted in plenum spaces when ceiling tiles are removable
• Eliminates need for accessible test switch by providing automatic diagnostic feature
• Designed for use with UL1008 Transfer Switch or equivalent emergency power source
