LEVITON DT820-IGW WH DEC DUP TR HG REC 2P3W 515R 15A125V
SKU: #29760
Part: #DT820-IGW
UPC: 078477675342
LEVITON DT820-IGW WH DEC DUP TR HG REC 2P3W 515R 15A125V
SKU: #29760
Part: #DT820-IGW
UPC: 078477675342
Description

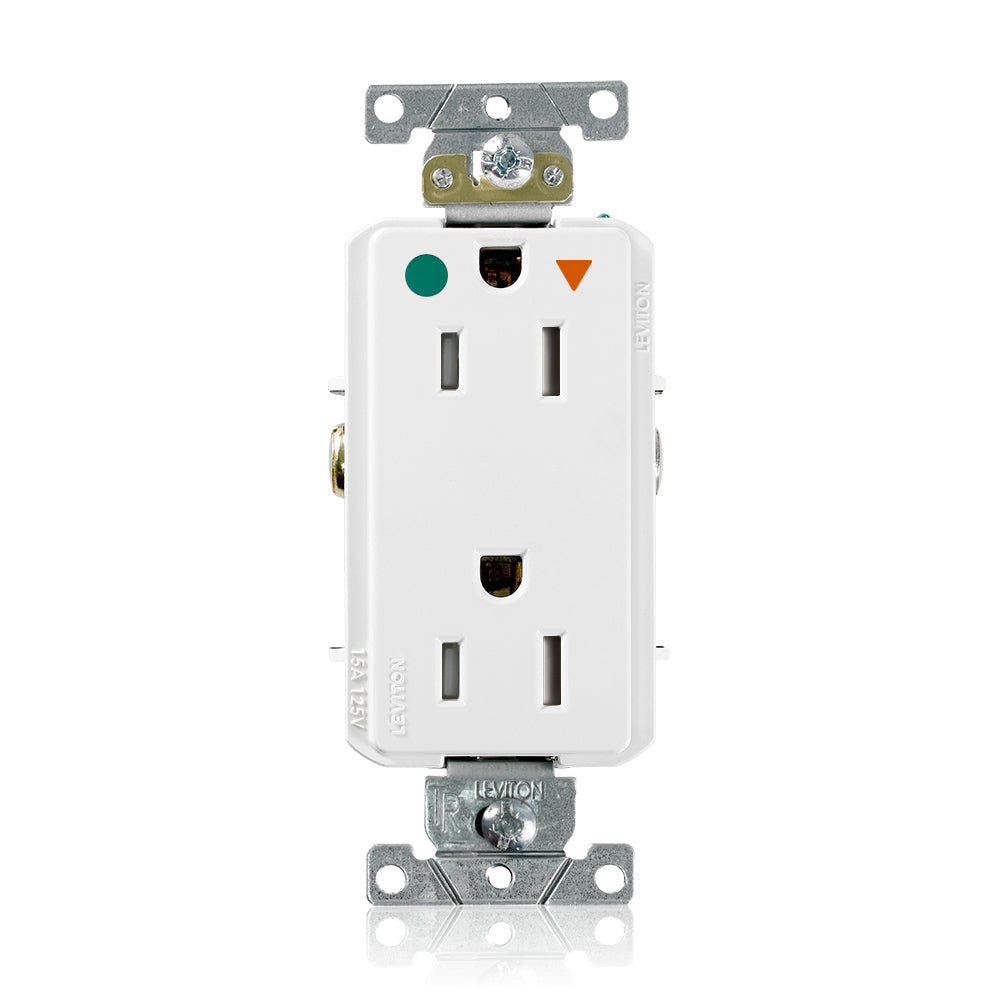

LEVITON DT820-IGW WH Decora Duplex Receptacle 15A 125V - Hospital Grade Isolated Ground
The LEVITON DT820-IGW is a heavy-duty, hospital grade Decora Plus™ duplex receptacle designed for use in sensitive electrical environments. It features an isolated ground configuration to protect sensitive electronic equipment by providing a separate grounding path, minimizing electromagnetic interference. This device is suitable for electrical distributors and switchgear suppliers seeking reliable wiring devices for commercial and healthcare applications.
Specifications
- Manufacturer: Leviton
- Manufacturer Part #: DT820-IGW
- Rating: 15A, 125V AC
- Configuration: Duplex, Isolated Ground
- Mounting: Back and Side Wired
- UPC: 078477675342
- Product Weight: 11.64 oz
Features
- Durable thermoplastic face in white color
- Hospital grade tamper-resistant with shutter mechanism preventing foreign object insertion
- Isolated ground receptacle identified by an orange triangle on the face
- Self-grounding clip riveted to the mounting strap for reliable grounding
- Power Indication™ meets UL 498 Hospital Grade identification requirements
- Back and side wiring accepts #10, 12, or 14 AWG solid or stranded copper or copper-clad wire
- Limited 10-year warranty
