Leviton Architectural Edition powered by JBL 5-Channel Surround Sound Home Cinema Speaker System

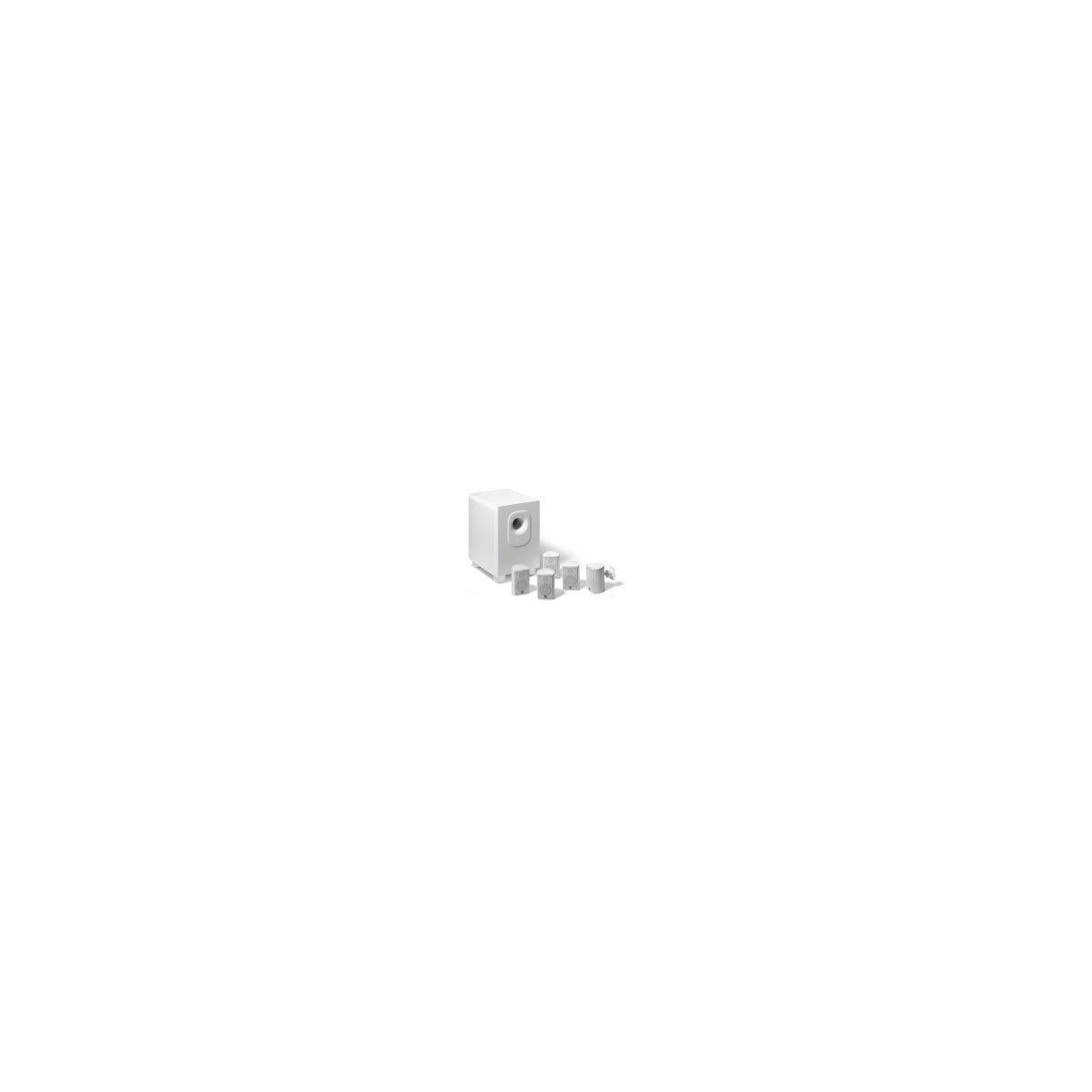

The Leviton AEH50 is a professional-grade on-wall home cinema speaker system designed to deliver high-fidelity surround sound for residential and commercial applications. This 5-channel surround-sound system includes five two-way magnetically-shielded satellite speakers and a 100 Watt powered subwoofer, engineered to reproduce full-frequency audio with clarity and powerful bass response. Ideal for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers seeking quality audio solutions, the AEH50 system supports 5.1 surround sound and can be expanded to 6.1 or 7.1 configurations with optional satellite speakers. Its flexible installation options and compatibility with standard AV receiver outputs make it suitable for a variety of home theater environments where in-wall speaker installation is impractical.

Specifications

• Speaker Complement: Five 2-way magnetically-shielded satellite speakers with 2.5 in (63.5 mm) woofer and 0.5 in (12.7 mm) tweeter
• Subwoofer: One 8 in (200 mm) 100 Watt powered subwoofer with LFE input, adjustable level control, and built-in crossover network
• Enclosure Type: Bass-reflex with FreeFlow™ flared port
• Recommended Power Range: 10-100 Watts
• Subwoofer Frequency Response (+/- 3dB): 35 Hz - 160 Hz
• Subwoofer Crossover Frequency: 120 Hz, 24 dB/octave with LFE/Normal switch in NORMAL position
• Satellite Frequency Response (+/- 3dB): 150 Hz - 20 kHz
• Satellite Speaker Sensitivity (2.83V/1m): 86 dB
• Satellite Impedance: Nominal 8 Ohms
• Subwoofer Dimensions (H x W x D): 16.25 in x 11 in x 13.75 in (413 mm x 279 mm x 349 mm)
• Subwoofer Weight: 28 lb (12.7 kg)
• Satellite Speaker Dimensions (H x W x D): 5 in x 3.5 in x 3.5 in (127 mm x 88 mm x 88 mm)
• Satellite Speaker Weight: 1.8 lb (0.8 kg) per speaker

Features

• Expandable 5-channel system upgradable to 6.1 or 7.1 surround sound with optional AESS5 satellite speakers
• Includes five architectural-grade adjustable mounting brackets for flexible on-wall or ceiling installation
• Subwoofer input RCA cable included for easy connection to AV receiver SUB OUT or LFE OUT jacks
• Magnetically shielded satellite speakers allow placement near video displays without interference
• Available in white or black finish to suit installation aesthetics
• Compatible with full range of surround, speaker, and EQ modes available in modern AV receivers
