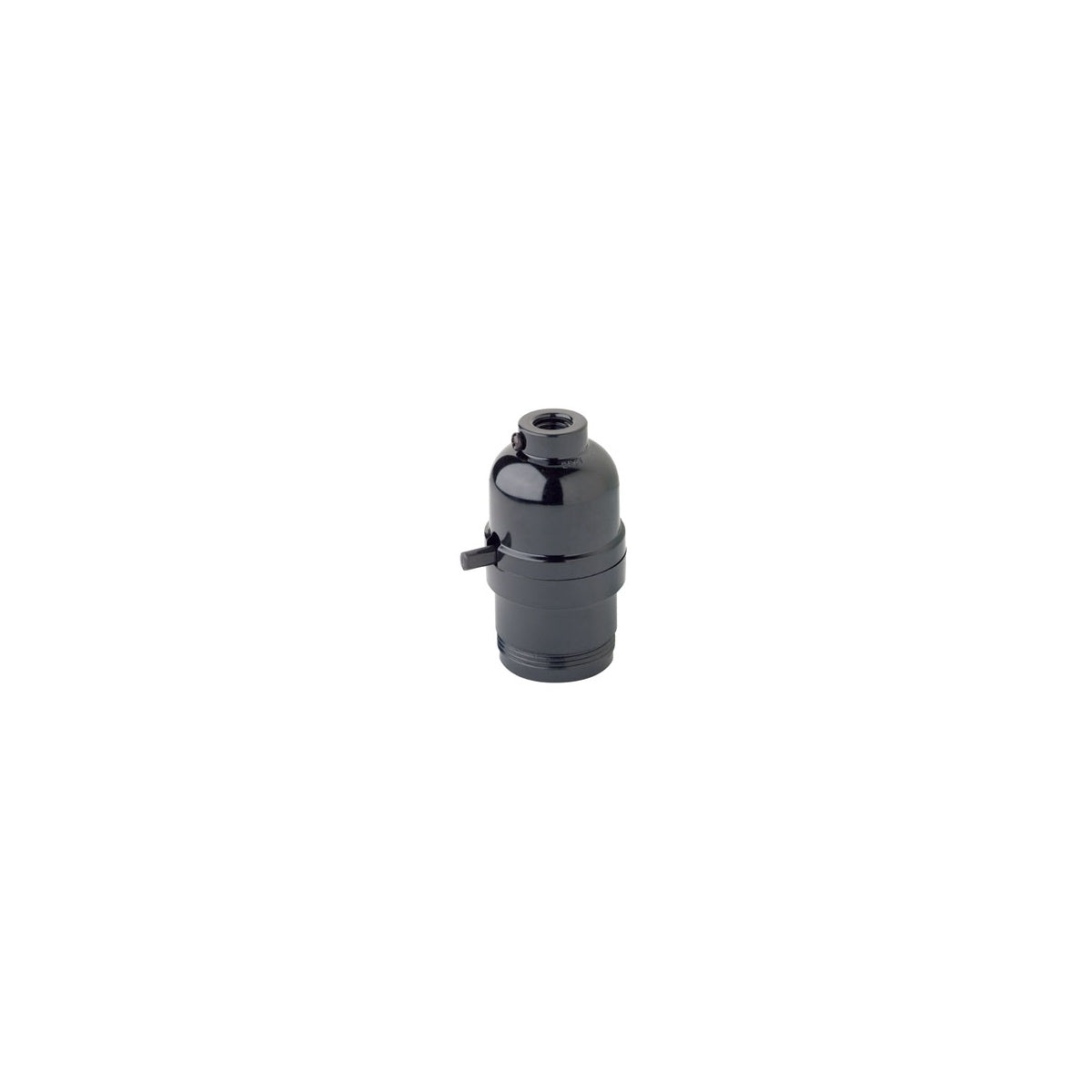

LEVITON 95110 Push Thru Bake Socket - Incandescent Lampholder

The LEVITON 95110 is a medium base, complete phenolic shell incandescent lampholder designed for electrical distributors and lighting solutions requiring reliable wire and cable connections. It features a push-through operator type with a single circuit configuration, suitable for use in switchgear supplier applications and electrolier style lighting fixtures. This lampholder supports a 660W, 250V rating and is constructed for pipe mounting with a 1/8 IPS tapped bushing and set screw for secure installation.

Specifications

• Product Weight: 11.8 lbs
• UPC: 078477490600
• Manufacturer Part #: 95110
• Availability: Distribution
• Circuit: Single Circuit
• Construction: Complete
• Lamp Base: Medium
• Lamp Socket Base: Medium
• Lampholder Type: Shell Lampholders
• Light Type: Incandescent
• Operator Type: Push-Through
• Pipe Mount: 1/8 IPS Tapped Bushing with Set Screw
• Sequence: ON-OFF
• Shell Material: Phenolic
• Interior Material: Phenolic
• Screw Shell Material: Aluminum
• Terminal Screws: Brass
• Termination: 2 Terminal Screws
• Voltage: 250 Volt
• Wattage Rating: 660W
• Color: Black
• Style Name: Electrolier
• Set Screw Thread: 8-32
• Standards and Certifications: UL Listed (File E3810), CSA Certified (File LR-1863)
• Country of Origin: Mexico

Features

• Phenolic shell and interior provide durability and heat resistance for incandescent applications.
• Push-through operator type allows easy lamp installation and replacement.
• Pipe mount with 1/8 IPS tapped bushing and set screw ensures secure and stable fixture attachment.
• Brass terminal screws for reliable electrical connections.
• UL and CSA certifications ensure compliance with North American safety standards.
• Black color finish suitable for various electrolier lighting fixtures.
