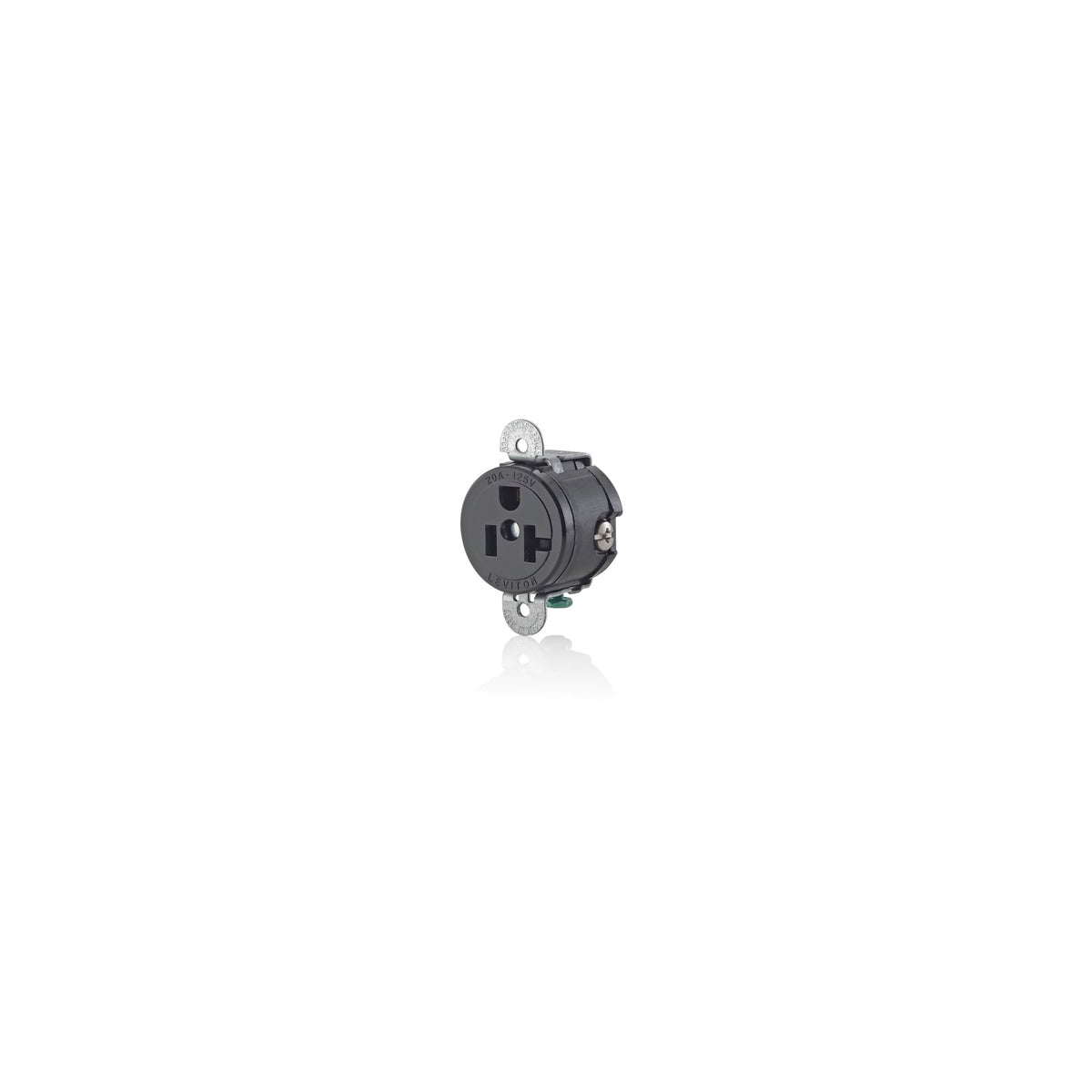

LEVITON 5558-SS EB REC SGL SHRT STRAP 2PO3WI5-20R20A125V Commercial Receptacle

The LEVITON 5558-SS is a heavy-duty commercial specification grade single receptacle designed for demanding electrical applications. Rated for 20 Amps and 125 Volts, this side-wire receptacle features a NEMA 5-20R configuration suitable for commercial and institutional environments such as hotels, schools, hospitals, and office buildings. It is manufactured with durable materials to ensure long-lasting performance and reliability, making it an ideal product for electrical distributors, lighting solutions providers, and switchgear suppliers.

Specifications

• Amperage: 20 A
• Voltage: 125 VAC
• Poles: 2
• Wires: 3
• NEMA Configuration: 5-20R
• AC Horsepower Rating: 1 HP at rated voltage
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rise: Max 30°C after 100 cycles overload at 150% rated current
• Operating Temperature Range: -40°C to 60°C
• Terminal Accommodation: 14-10 AWG
• Torque Range: 14-16 in-lbs
• Product Weight: 5.13 lbs
• Country of Origin: Mexico
• UPC: 078477419854

Features

• Heavy-duty brass power contacts for maximum conductivity and plug retention
• Galvanized steel mounting strap for durability
• Side wire termination for secure and reliable connections
• Plated steel terminal screws and grounding screw for corrosion resistance
• Base and cover made of durable nylon material
• Certified for current interrupting at full rated current
• Flammability rated V-2 per UL 94
• UL Listed, CSA Certified, NOM Certified, ANSI C-73 compliant
• Backed by a 10-year limited warranty
