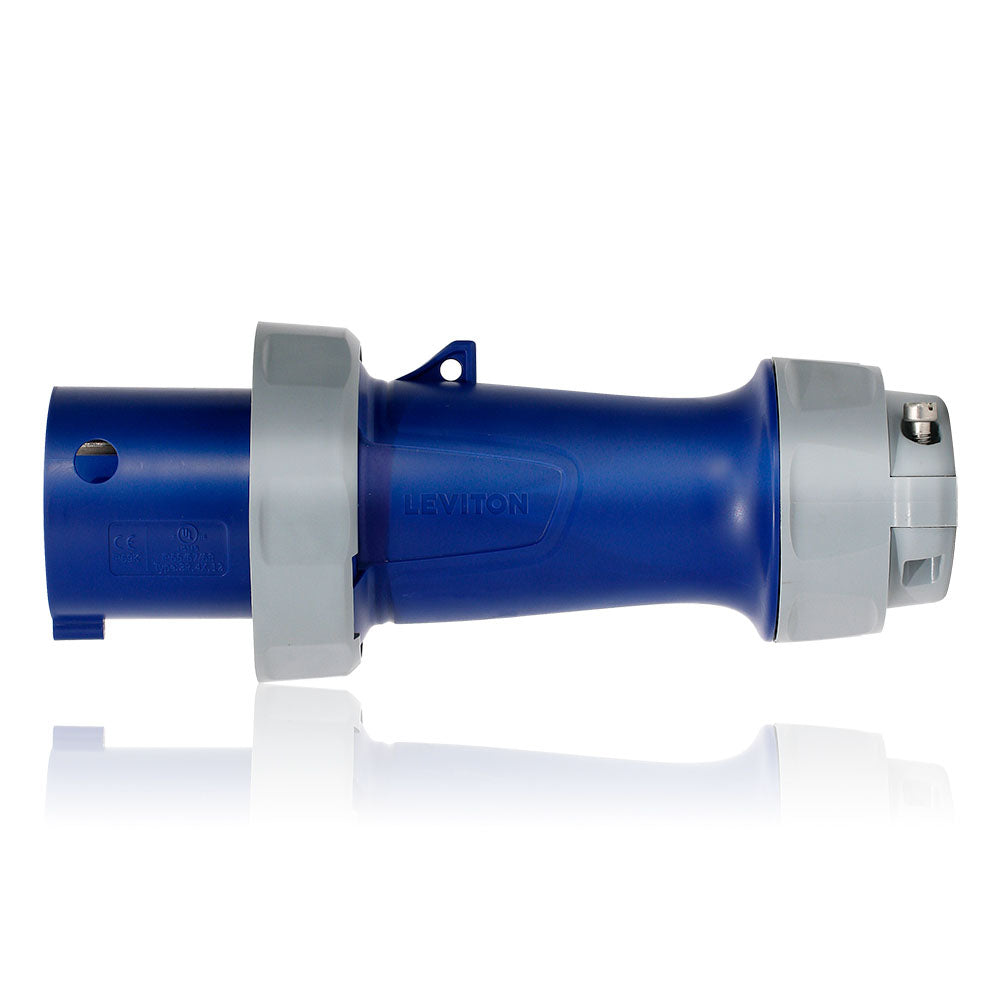

LEVITON 5100P9WLEV 100 Amp Pin & Sleeve Plug - Industrial Electrical Connector

The LEVITON 5100P9WLEV is a 100 Amp, 120/208 Volt, 3-Phase, 4-Pole, 5-Wire pin and sleeve plug designed for industrial applications requiring reliable and watertight electrical connections. This North American-rated IEC 60309-1 & 60309-2 compliant device is ideal for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers in environments demanding durability and safety, including food and beverage processing facilities.

Specifications

• Amperage: 100 A
• Voltage: 120/208 VAC
• Phase: 3-Phase
• Poles: 4
• Wires: 5
• Horsepower Rating: 5 HP
• Dielectric Voltage: 2000 V for 1 minute
• Overload UL20 Test: 150% of rated current and 100% of rated voltage for 50 cycles
• SCCR: 200kA
• Temperature Range: -40°C to +60°C without impact; -35°C to +60°C with impact
• IP Rating: IP66, IP67, IP68, IP69K
• Material: Impact Modified Nylon housing, Glass filled Nylon contact carrier
• Conductor Range: #6 AWG to #1 AWG
• Lockout/Tagout Provision: Lockout hole on housing
• Standards: UL 1682, UL 1686 C2, CSA C22.2 No. 182.1-13, IEC 60309-1 & 60309-2, NOM-ANCE
• Certifications: NSF 14159-1 hygienic design, CE certified, RoHS compliant
• Country of Origin: Mexico
• Product Weight: 1.0 lb

Features

• Threaded housing design for quicker and easier installation by reducing screw count
• Superior watertight ratings including IP69K for washdown and outdoor applications and exclusive IP68 for long-term submersion
• NSF certified sanitary design suitable for food and beverage environments
• Nickel-plated brass pins and sleeves provide corrosion resistance and self-cleaning performance
• Durable construction tested to withstand impact at extreme temperatures
• Lockout/tagout provisions for OSHA compliance
• UV stabilized housing for outdoor durability
• Product markings include brand, UL, CE, environmental ratings, and NSF certification for easy identification
• Backed by a 5-year limited warranty
