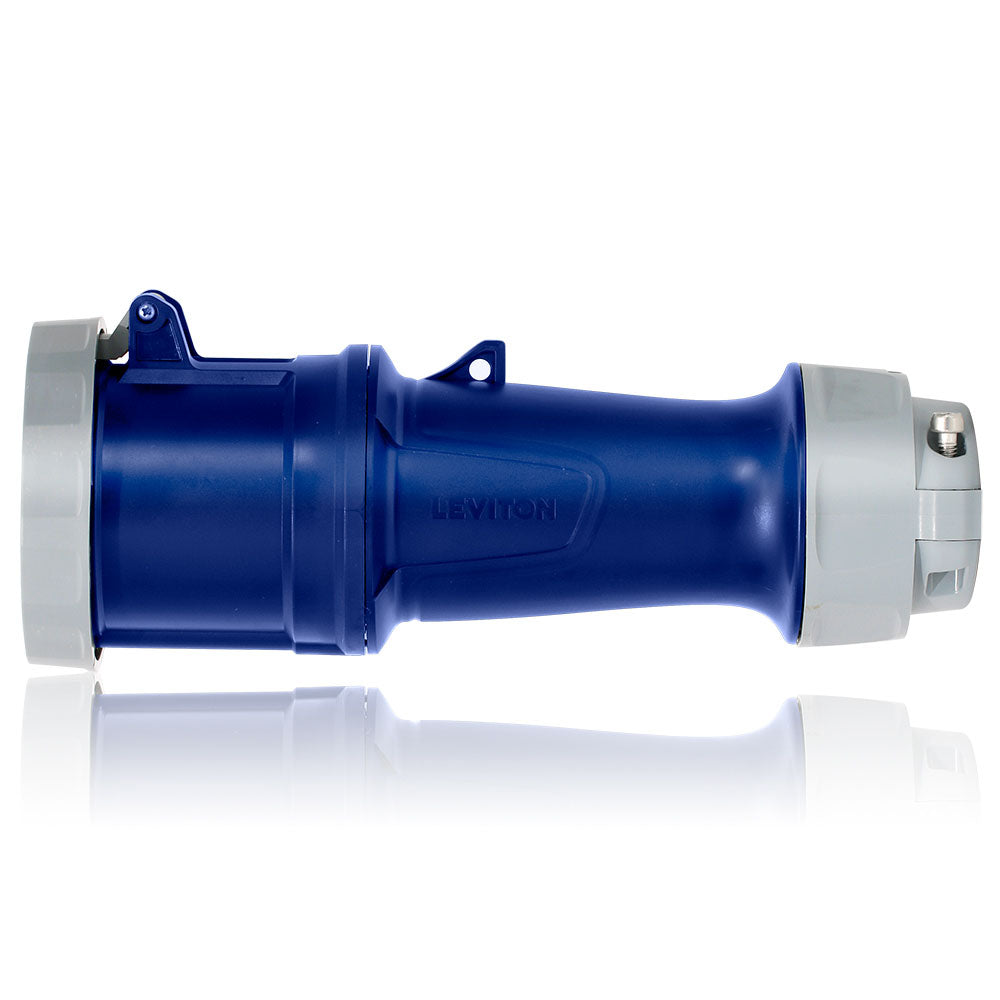

LEVITON 5100C9WLEV 100 Amp Pin & Sleeve Connector - Blue

The LEVITON 5100C9WLEV is a 100 Amp, 120/208 Volt, 3-Phase, 4-Pole, 5-Wire pin and sleeve connector designed for industrial-grade electrical distribution. This North American-rated IEC 60309-1 & 60309-2 device is engineered to deliver reliable, watertight connections in demanding environments. It is ideal for electrical distributors and switchgear suppliers requiring durable connectors with superior corrosion resistance and high ingress protection for wire and cable applications in harsh conditions, including food and beverage facilities.

Specifications

• Amperage: 100 A
• Voltage: 120/208 VAC
• Phase: 3-Phase
• Poles: 4
• Wires: 5
• Horsepower Rating: 5 HP
• Dielectric Voltage: 2000V for 1 minute
• Endurance: 2000 cycles total (1000 at rated current voltage, 1000 at no load)
• Overload UL20 Test: 150% rated current, 100% rated voltage for 50 cycles
• SCCR: 200kA
• Temperature Rise: Max 30°C rise at full rated current (after overload)
• IP Rating: IP66, IP67, IP68, IP69K
• Operating Temperature: -40°C to +60°C without impact, -35°C to +60°C with impact
• Material: Impact Modified Nylon housing, glass filled nylon contact carrier, Buna-N gasket
• Conductor Range: #6 AWG to #1 AWG
• Assembly Screws: 303 Stainless Steel
• Color: Blue
• Clock Position: 9 o'clock
• Country of Origin: Mexico

Features

• Improved speed of assembly with threaded housings and fewer screws for reduced installation time
• Superior watertight ratings including IP69K for washdown and outdoor applications, plus industry-exclusive submersible IP68
• Nickel-plated brass pins and sleeves providing self-cleaning and corrosion resistance
• Certified for current interrupting at full rated current and voltage
• Salt fog tested for corrosion resistance
• NSF certified sanitary design compliant for food and beverage environments
• UV stabilized F1 rated housings for outdoor durability
• Meets North American IEC 60309-1 and 60309-2 standards
• Listed to UL 1682, UL 1686, CSA, NOM-ANCE standards
• 5-year limited warranty
