LEVITON 47612-42B WH EXTENDER BRKT FOR SMC 420
SKU: #15473
Part: #47612-42B
UPC: 078477168431
LEVITON 47612-42B WH EXTENDER BRKT FOR SMC 420
SKU: #15473
Part: #47612-42B
UPC: 078477168431
Description

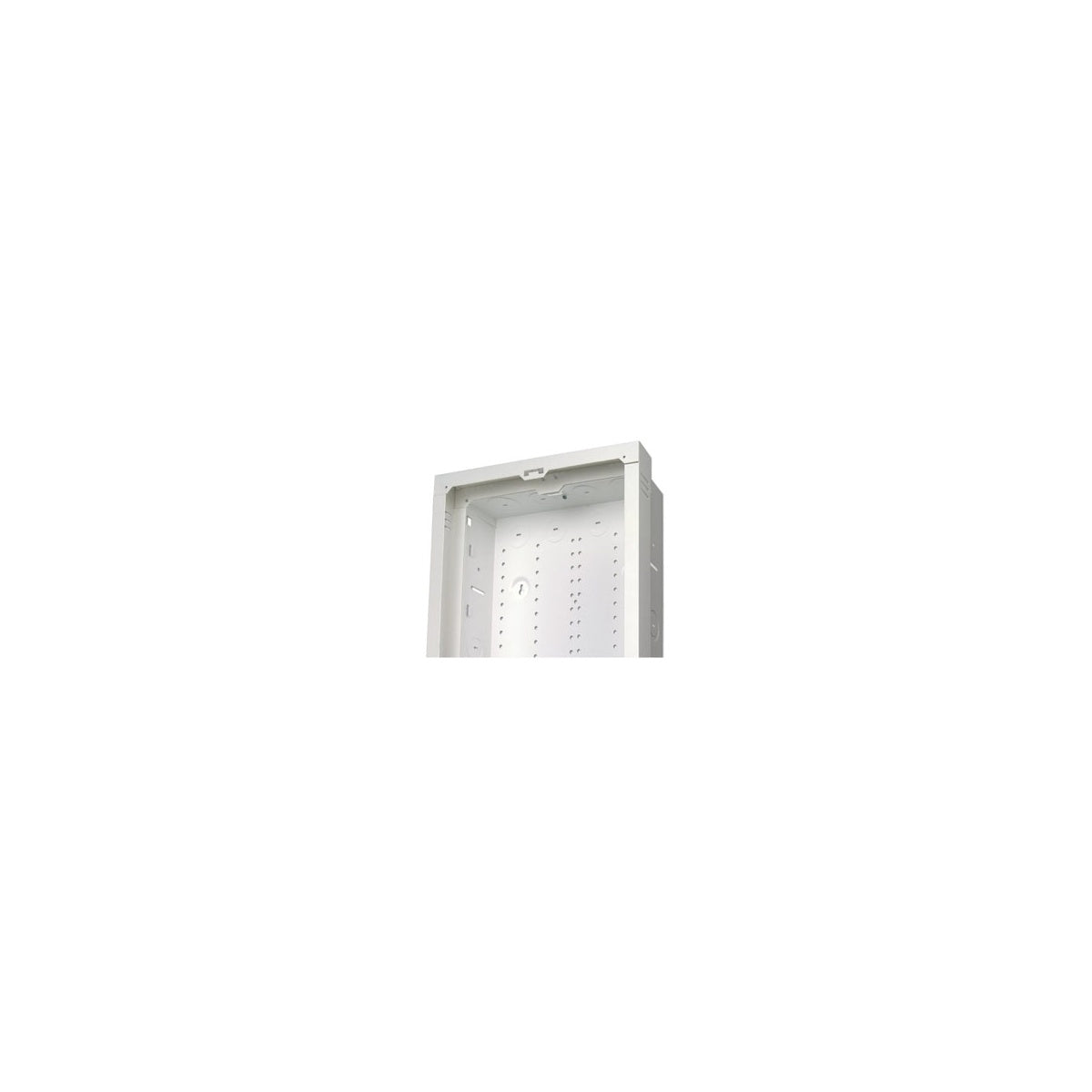

LEVITON 47612-42B WH Extender Bracket for Structured Media Enclosures
The LEVITON 47612-42B extender bracket is designed to provide additional depth and enhanced ventilation for Series 280 and 420 Structured Media Enclosures. This extender bracket attaches between the enclosure and cover, increasing the depth by 2 inches to improve cable management and accommodate larger modules such as audio amplifiers. It is suitable for electrical distributors and switchgear suppliers looking to expand residential or commercial wire and cable enclosures with better airflow and space efficiency.
Specifications
- Depth: 2 Inch
- Height: 43.25 Inch
- Width: 16.10 Inch
- Material: Steel
- Gauge of Steel: 18 Gauge
- Color: White
- Paint Finish: Powder-Coated
- Series: Series 420
- Warranty: 2-Year Limited
- Item: 2 Inch Extender Brackets
Features
- Constructed of sturdy white powder-coated 18-gauge sheet metal
- Louvers enhance ventilation to prevent heat build-up from installed modules
- Provides greater depth for improved cable management and mounting larger modules within the enclosure
