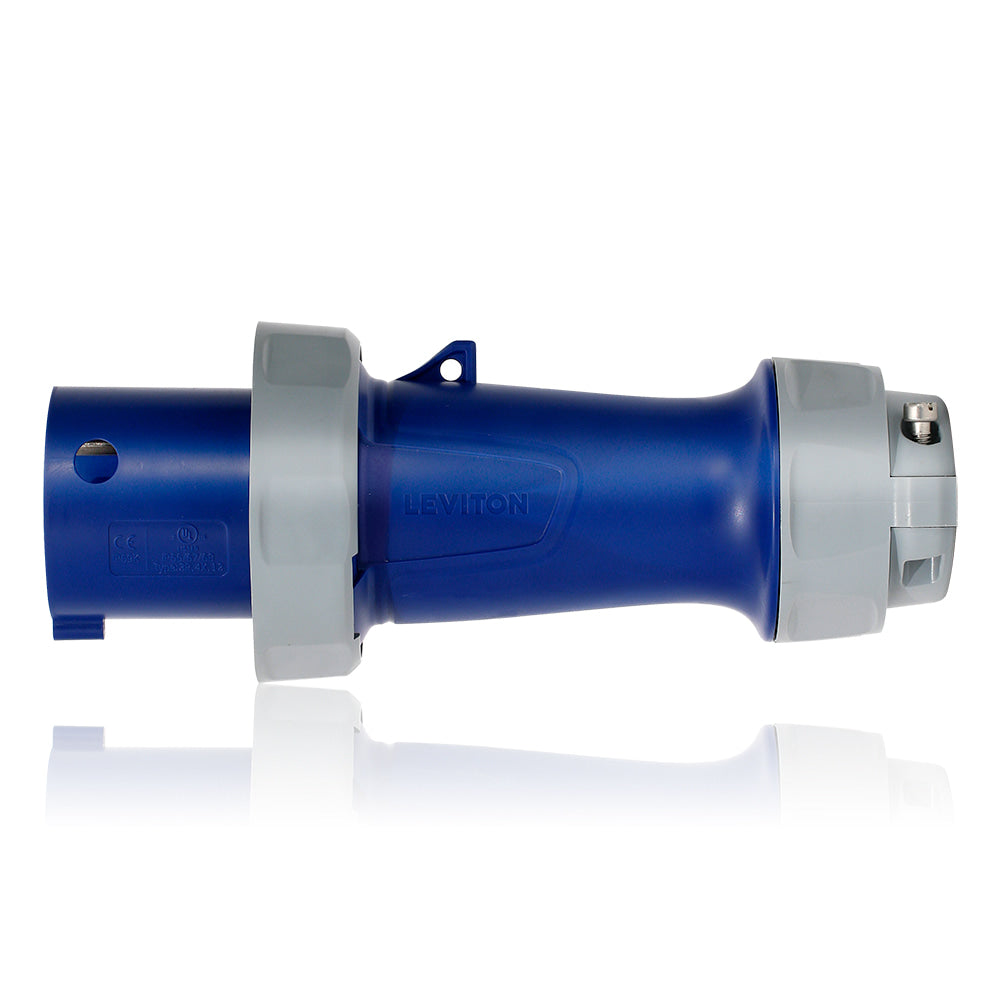

LEVITON 460P9WLEV 60 AMP Pin & Sleeve Plug - Industrial Electrical Connector

The LEVITON 460P9WLEV is a 60 Amp pin and sleeve plug designed for industrial electrical applications requiring secure, watertight connections. This plug is part of the LEV Series, trusted by electrical distributors and switchgear suppliers for its robust construction and compliance with North American IEC 60309-1 and 60309-2 standards. It is suitable for use in demanding environments including food and beverage facilities, offering reliable performance in wet and harsh locations.

Specifications

• Manufacturer: Leviton
• Manufacturer Part Number: 460P9WLEV
• Amperage Rating: 60 Amp
• Plug Type: Pin & Sleeve
• Voltage: 250V AC (3-phase)
• Configuration: 3Ø (3-phase), 4 wire
• Color: Blue
• Product Weight: 1.0 lb
• UPC: 078477901625
• Standards: UL 1682, UL 1686, CSA, NOM-ANCE, IEC 60309-1 and IEC 60309-2
• Ingress Protection: IP66, IP67, IP68, IP69K rated for watertight and dust-tight performance
• Material: Impact modified nylon housing with nickel-plated brass pins and sleeves
• Sanitary Design: NSF certified for use in food and beverage environments

Features

• Nickel-plated brass pins and sleeves provide corrosion resistance and self-cleaning contact surfaces
• Watertight and dust-tight rated to IP66, IP67, IP68, and IP69K for long-term submersion and harsh conditions
• Impact-resistant construction designed to withstand extreme temperatures and physical abuse
• Complies with OSHA Lockout/Tagout provisions for enhanced safety
• Available with screwless back clamp assembly option for faster installation (on 20 and 30 Amp models; standard clamp on 60 Amp)
• Meets North American IEC standards for pin & sleeve devices
• Backed by a limited 5-year warranty from Leviton
