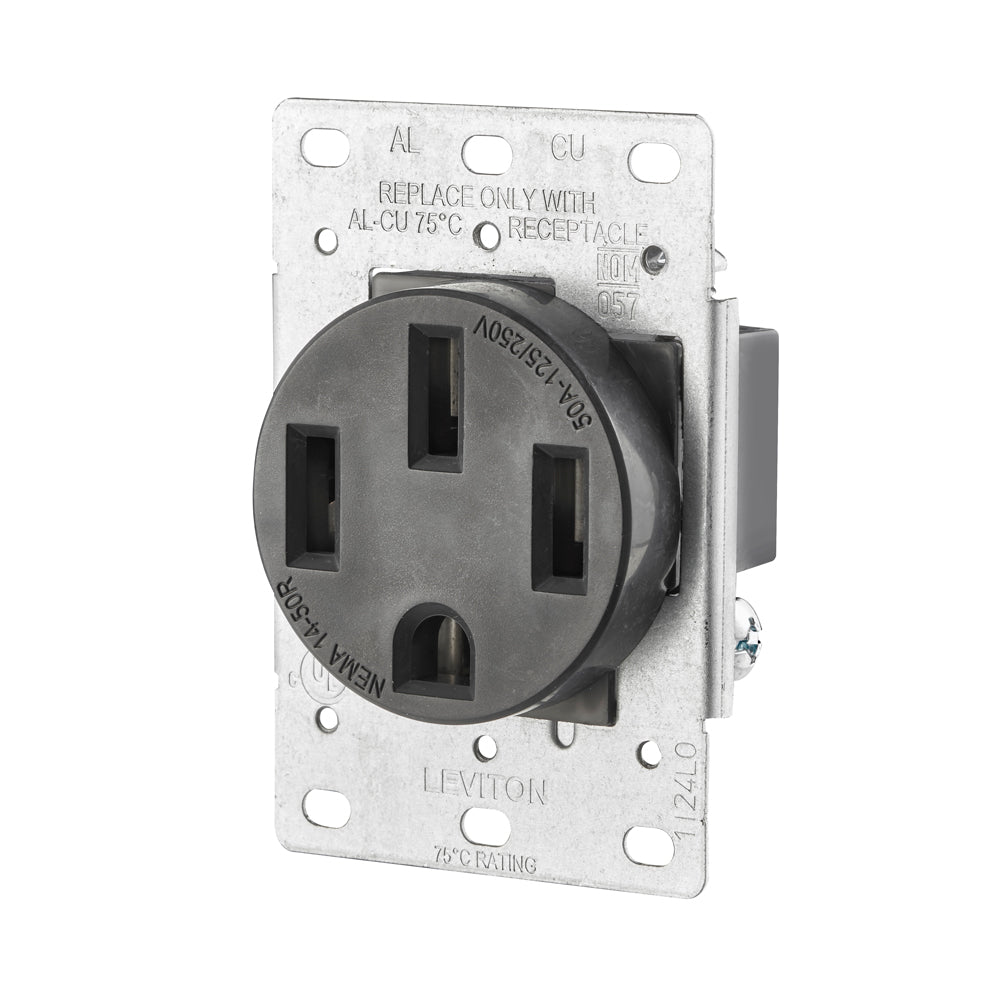

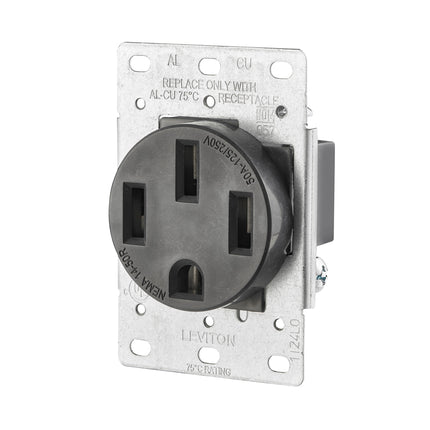

LEVITON 279-S00 EB SHLW REC SHL 3PO4WI GRND 50A125/250V Flush Mount Outlet

The Leviton 279-S00 is a 50 Amp, 125/250 Volt flush mount electrical outlet designed for heavy-duty applications. It is suitable for use in commercial and industrial wiring installations, providing a secure and reliable connection point. This device is ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring a robust receptacle for high-current circuits.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: 279-S00
• Voltage Rating: 125/250V AC
• Current Rating: 50 Amp
• Configuration: 3 Pole, 4 Wire with Ground
• Product Weight: 3.14 lbs
• Dimensions: 3.75" (H) x 2.42" (W) x 1.57" (D)
• Wire Compatibility: #6 AWG Aluminum/copper-clad or #6 - #8 AWG Copper

Features

• Flush mount design for secure installation in 2-gang wall boxes
• Rated for use with 50A circuits at 125/250V for heavy-duty power delivery
• Terminals torque to 40 in-lbs to ensure safe and reliable wiring connections
• Constructed to meet applicable electrical codes and standards
• Not recommended for electric vehicle charging applications
