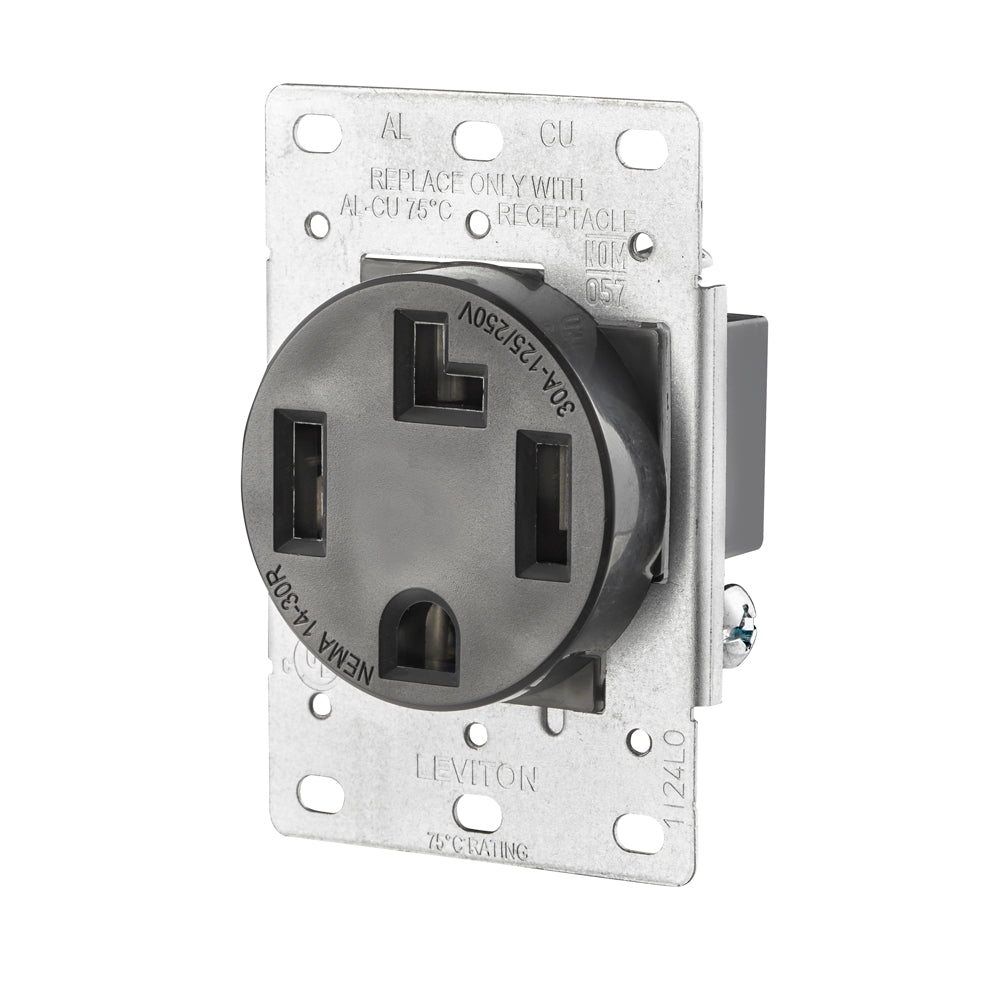

LEVITON 278-S00 EB IG Shallow Single Receptacle 3P/4W 30A/125/250V Outlet

This Leviton 278-S00 flush mount electrical receptacle is designed for 30 Amp, 125/250 Volt applications, suitable for commercial and industrial electrical distribution. It serves as a reliable component in lighting solutions, wire and cable systems, and switchgear assemblies, ensuring secure and efficient power connections.

Specifications

• Manufacturer: Leviton
• Model Number: 278-S00
• Rating: 30 Amp, 125/250 Volt AC
• Configuration: Single Receptacle, 3 Pole / 4 Wire
• Product Weight: 3.14 lbs
• Dimensions: 3.75 in (H) x 2.42 in (W) x 1.57 in (Depth)
• Wire Compatibility: #6 - #8 AWG Aluminum/copper-clad or #6 - #10 AWG Copper
• Mounting: Flush mount, requires 2-gang wallplate (2.15" diameter opening)
• Torque Requirement: Terminal screws tightened to 40 in-lbs

Features

• Designed for use with aluminum and copper conductors
• Shallow design for space-saving installations
• Durable construction suitable for commercial electrical distributor applications
• Meets electrical codes and regulations for safe installation
• Requires proper torque tightening to ensure secure electrical connections
• Not recommended for electric vehicle charging applications
