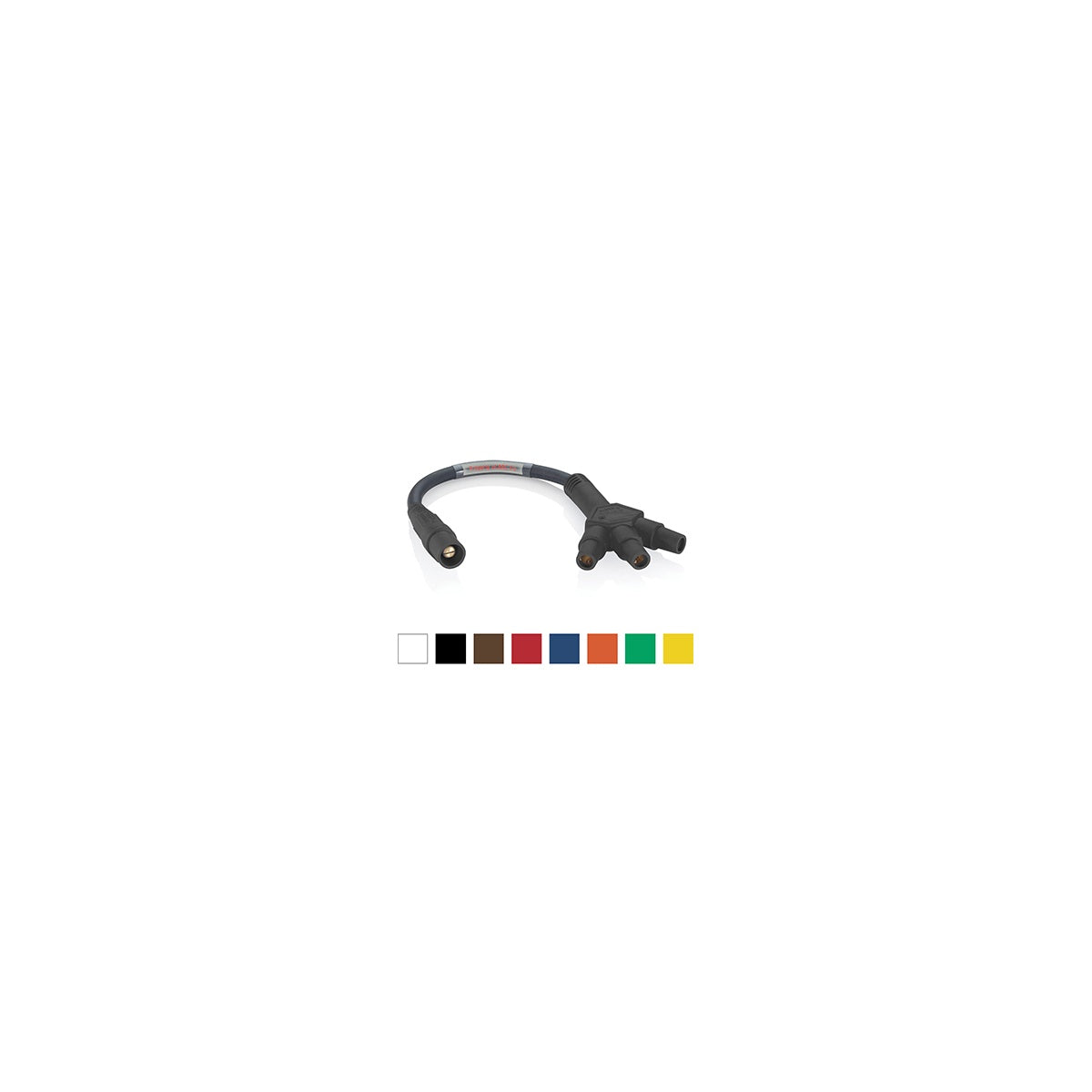

LEVITON 16A33-UG GN 16 Series Soft 3-Fer Adapter

The Leviton 16A33-UG is a 16 Series Cam-Type Taper Nose "Soft" 3-Fer adapter designed for temporary power distribution in industrial and commercial applications. It features a male plug to female/female/female tri-tap configuration with a 24-inch cable length and supports up to 400 amps and 600 volts AC/DC. This adapter is suitable for use by electrical distributors and switchgear suppliers providing reliable lighting solutions, wire and cable assemblies, and power distribution systems in environments such as entertainment venues, oil and gas, mining operations, construction sites, and other temporary power applications.

Specifications

• Max Amperage: 400 Amp
• Max Voltage: 600 Volt
• Material - Contacts: Brass
• Material - Insulator: Santroprene TPV
• Gender: Male-Female-Female-Female
• Style Name: Soft 3-Fer
• NEMA Rating: Type 3R (Outdoor Use when mated)
• UL Listing: UL 1691, 508 – 35k A / 600V Short Circuit Current Rating
• Color: Green

Features

• Single or double set screw or crimp tube termination
• Designed with cylindrical profile to reduce snap
• Color-coded insulating sleeves for fast and easy phase identification
• Shatter and crack proof high durometer thermoplastic vulcanizate (TPV)
• Compatible and interoperable with competitive cam-type plugs and receptacles
• Quick connect/disconnect with positive, vibration-proof double cam design
• NEMA 3R rated for outdoor use when mated
