LEVITON 16A33-UE EB 16 Series Soft 3-Fer Adapter – Cam-Type Electrical Connector

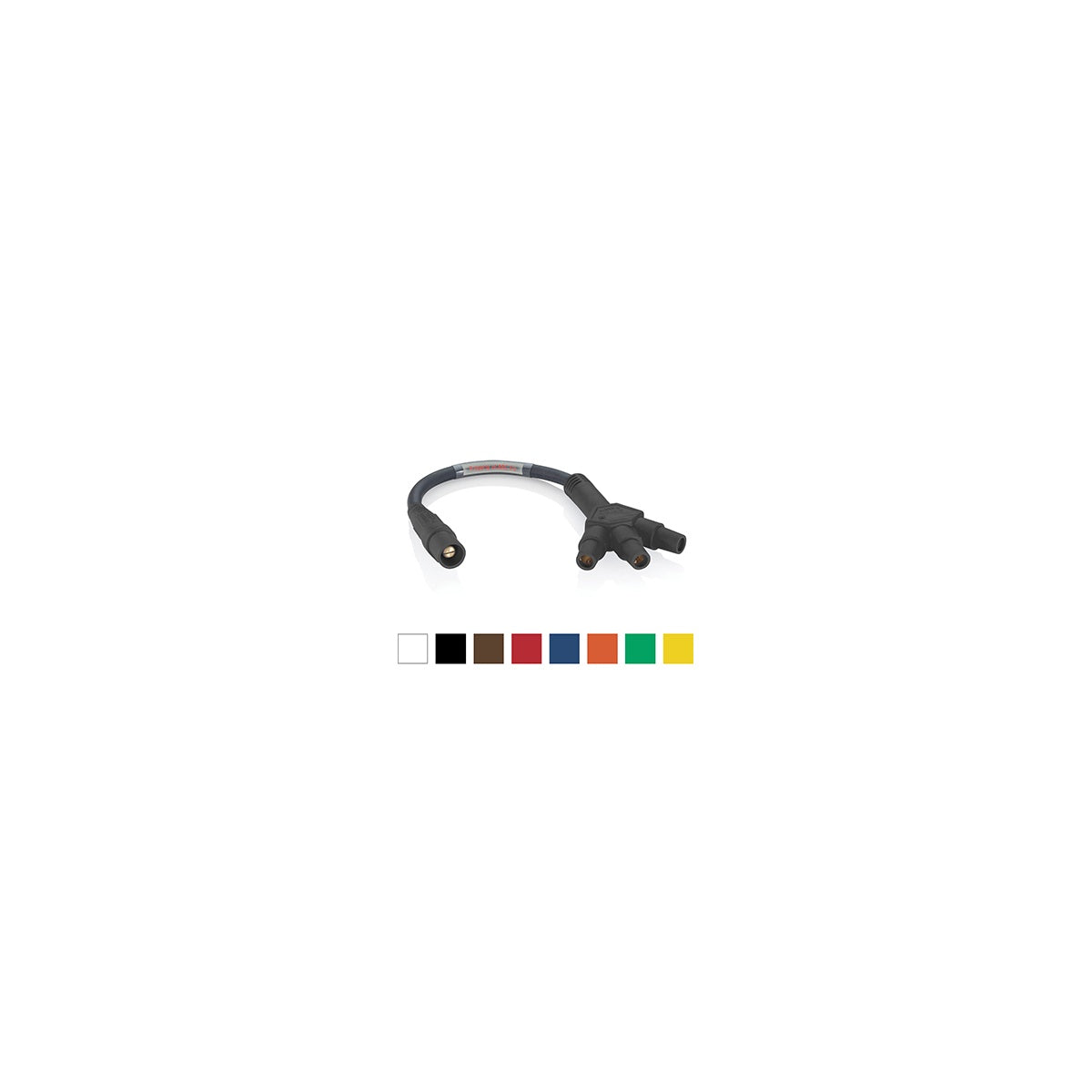

The LEVITON 16A33-UE is a 16 Series Cam-Type Taper Nose "Soft" 3-Fer adapter designed for temporary power distribution applications. This cable assembly features a male plug to female/female/female tri-tap configuration with a 24-inch cable length and supports up to 400 amps at 600 volts AC/DC. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers in industries such as entertainment, oil and gas, mining operations, construction sites, and other temporary power applications.

Specifications

• Max Amperage: 400 Amp
• Max Voltage: 600 Volt
• Material - Contacts: Brass
• Material - Insulator: Santroprene TPV
• Gender: Male-Female-Female-Female
• Style Name: Soft 3-Fer
• NEMA Rating: Type 3R (Outdoor Use when mated)
• UL Listings: UL 1691, UL 508 – 35k A / 600V Short Circuit Current Rating
• Color: Black (also available in Blue, Green, Red, White)
• Cable Length: 24 inches
• Manufacturer Part Number: 16A33-UE

Features

• Single or double set screw or crimp tube termination for secure connections
• Designed with cylindrical profile to reduce snap and improve handling
• Color-coded insulating sleeves for fast and easy phase identification
• Shatter and crack proof thermoplastic vulcanizate (TPV) construction for durability
• Intermateable and interchangeable with competitive cam-type plugs and receptacles
• Meets NEC requirements and suitable for outdoor use under NEMA 3R rating
• Quick connect/disconnect design with high conductivity and vibration-proof cam connection
