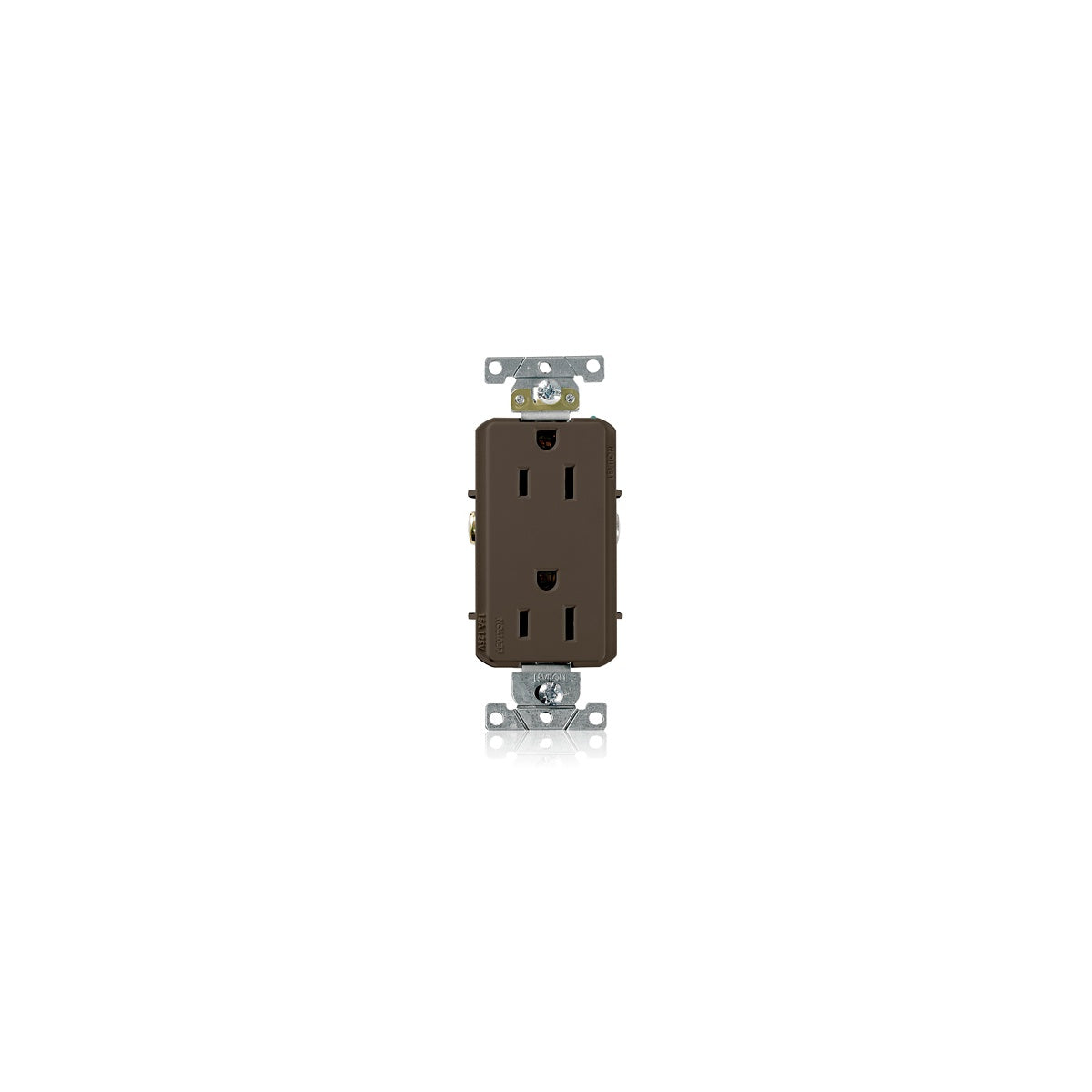

LEVITON 16252-GY GY REC DUP DEC 2PO 3WI 5-15R 15A125V Industrial Grade Receptacle

The Leviton 16252-GY is a heavy-duty industrial grade duplex receptacle designed for demanding commercial and institutional electrical applications. This Decora® Plus™ receptacle features a durable thermoplastic face and impact-resistant construction, suitable for use by electrical distributors and lighting solutions providers requiring reliable wiring components. It supports back and side wiring terminals for ease of installation and accommodates up to #10 AWG solid or stranded copper or copper-clad wire.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: 16252-GY
• Rating: 15A, 125V
• Configuration: Duplex, 2 Pole, 3 Wire
• NEMA: 5-15R
• Color: Gray
• Product Weight: 11.1 lbs
• UPC: 078477819692

Features

• Durable thermoplastic face with impact-resistant construction
• Shallow design for maximum wiring room in wallbox
• Back and side terminal wiring options for fast installation
• Heavy-gauge zinc-plated steel locked-in wrap-around strap
• Heavy-duty triple-wipe brass contacts for long service life
• Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
• Brass staked on self-grounding clip for reliable grounding
• Back and side wiring terminals accommodate up to #10 solid or stranded copper wire
• Compatible with copper or copper-clad wire only
• Backed by a limited 10-year warranty
