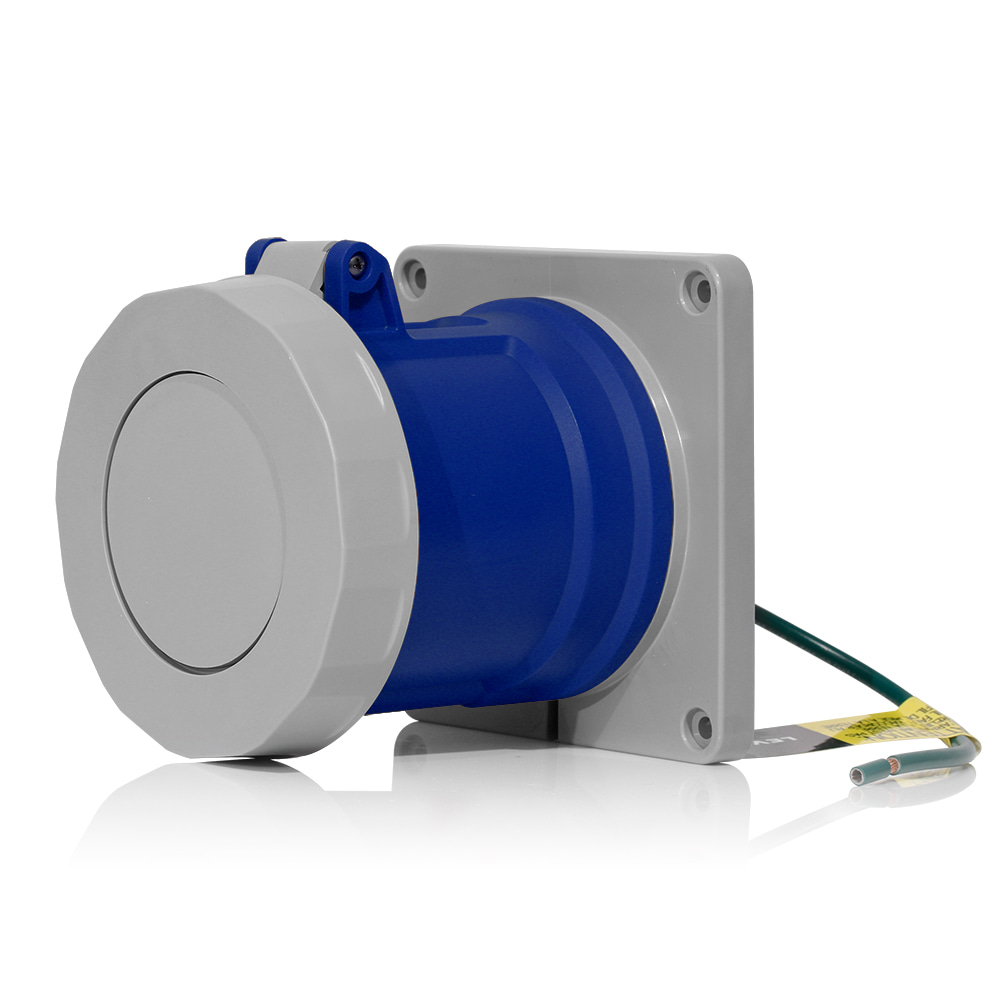

LEV Series IEC Pin & Sleeve Receptacle - Industrial Grade Electrical Distributor Connector

The LEV Series IEC Pin & Sleeve Receptacle by Leviton is a 60 Amp, 120/208 Volt, 3-Phase, 4-Pole, 5-Wire industrial-grade connector designed for demanding electrical distribution and lighting solutions applications. Rated for North American use and compliant with IEC 60309-1 and IEC 60309-2 standards, this receptacle provides a watertight connection suitable for harsh environments, making it ideal for wire and cable assemblies and switchgear supplier systems requiring robust, reliable power connections.

Specifications

• Amperage: 60 amperes
• Voltage: 120/208 Volt, 3-Phase
• Number of Poles: 4
• Number of Wires: 5
• Maximum Voltage: 600 volts
• Horsepower Rating: 5 horse power
• Housing Material: Impact Modified Nylon
• Dielectric Withstand Voltage: 3000 volts
• Color: Blue
• Flammability Class: Rated HB or better per UL94
• Country of Origin: Mexico
• Manufacturer: Leviton
• Manufacturer Part Number: 560R9WLEV
• Product Weight: 1.0000 lbs
• UPC: 078477901502
• Device Type: Receptacle
• IEC Compliance: IEC 60309-1 & IEC 60309-2
• Ingress Protection: IP66/IP67/IP68/IP69K Watertight

Features

• Industrial-grade watertight pin and sleeve receptacle designed for harsh and wet environments
• Impact modified nylon housing for enhanced durability and chemical resistance
• Meets North American and international IEC standards for safety and performance
• Rated for high dielectric withstand voltage of 3000 volts to ensure electrical safety
• Rated HB or better flammability per UL94 for enhanced fire safety
• Color-coded blue housing for easy identification of voltage and amperage rating
• Pre-attached gasket and grounding wire for faster installation and reliable grounding
• Suitable for use by electrical distributors, lighting solutions providers, wire and cable manufacturers, and switchgear suppliers
• Designed for 3-phase, 4-pole, 5-wire systems with a maximum voltage rating of 600 volts
