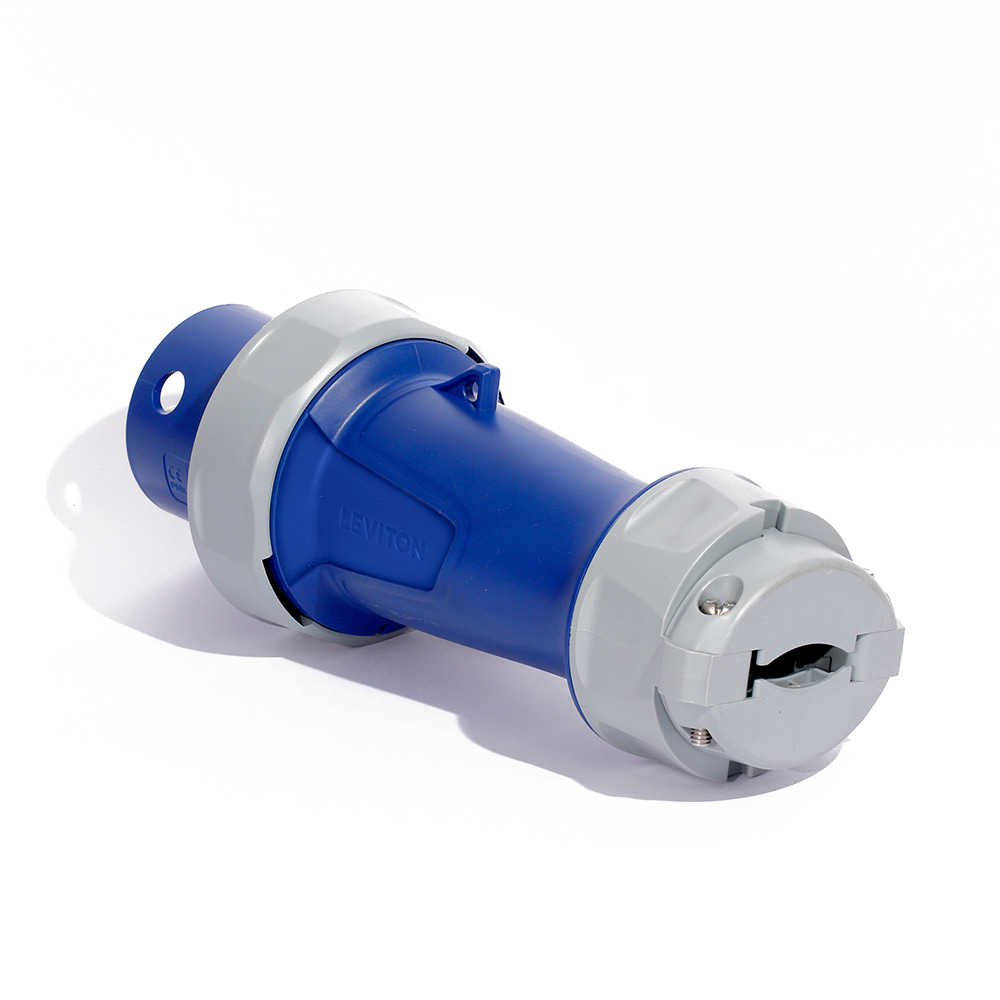

LEV Series IEC Pin & Sleeve Plug – Industrial Grade Electrical Distributor Component

The LEV Series IEC Pin & Sleeve Plug is a 60 Amp, 250 Volt, 2 Pole, 3 Wire industrial-grade plug designed for demanding electrical distribution applications. Rated to North American IEC 60309-1 and 60309-2 standards, it provides reliable and watertight connections with IP66/IP67/IP68/IP69K protection, making it suitable for harsh environments requiring robust lighting solutions, wire and cable connectivity, and switchgear supplier compatibility. The plug’s impact-modified nylon housing ensures durability while meeting flammability standards, ideal for industrial and commercial electrical installations.

Specifications

• Amperage: 60 amperes
• Maximum Voltage: 600 volts
• Poles: 2
• Wires: 3
• Dielectric Strength: 3000 volts
• Housing Material: Impact Modified Nylon
• Flammability Class: Rated HB or better per UL94
• Ingress Protection: IP66/IP67/IP68/IP69K (Watertight)
• Country of Origin: Mexico
• Manufacturer: Leviton (Part # 360P6WLEV)
• Color: Blue
• Product Weight: 1.0 lb

Features

• Industrial grade construction compliant with IEC 60309-1 & 60309-2 standards

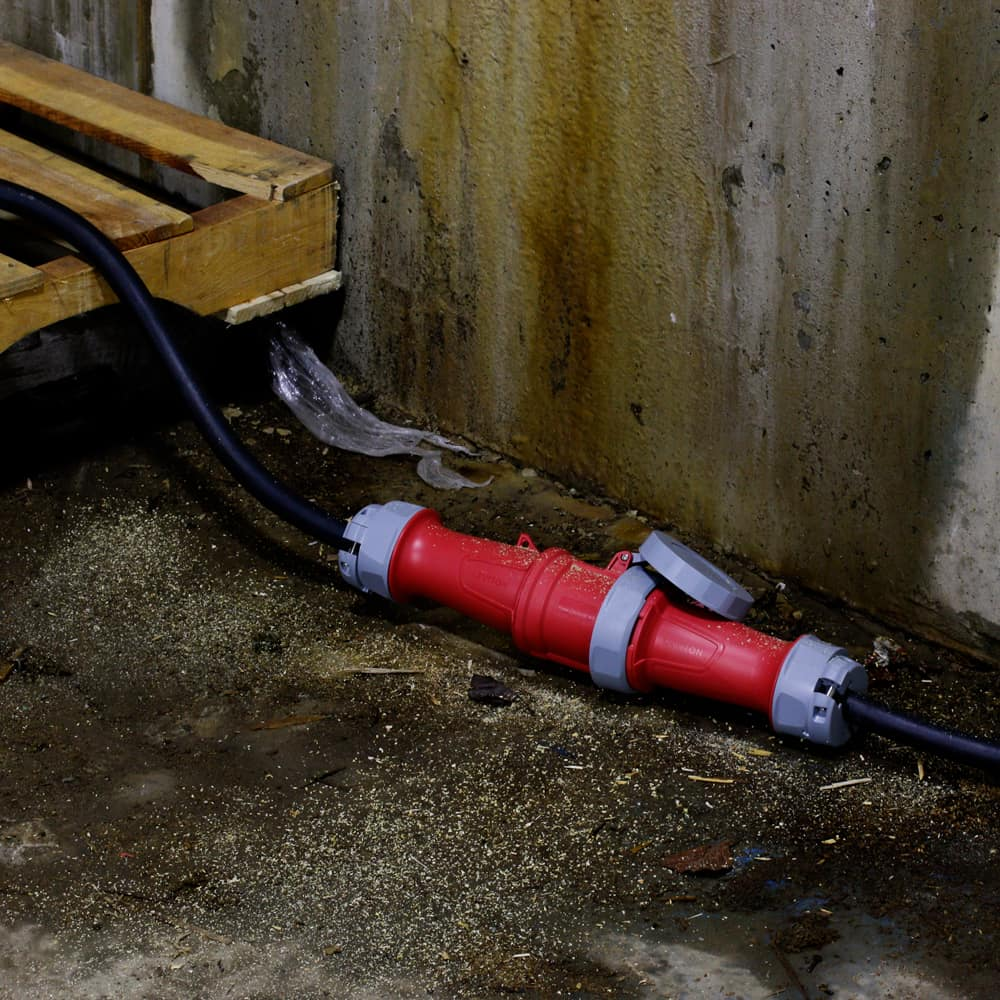

• Watertight design suitable for wet and outdoor environments

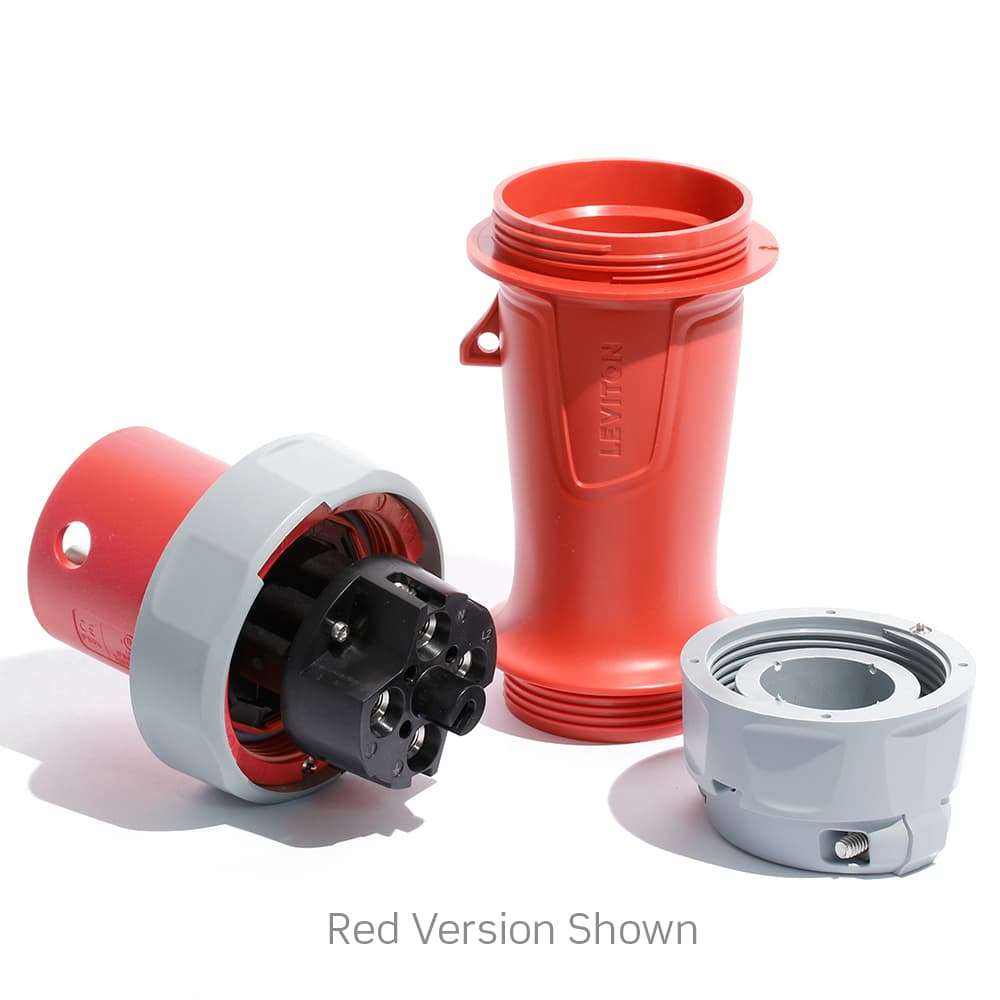

• Impact-resistant nylon housing for enhanced durability and safety
• Quick lock pin mechanism for secure and reliable connections
• Compatible with copper or copper-clad wire for electrical distributor applications
• Designed to support heavy-duty lighting solutions and switchgear integration
• Meets rigorous safety codes including UL94 flammability and electrical insulation requirements
• Color-coded for easy identification and system organization

Downloads & Links

• Pin and Sleeve-Full Line Brochure Q-907F
• PK-A3278-10-00-0B-W
• ORB4013-D02
• LEV Series Mini Brochure Q-1294A-min
• ORB4013-M02
