Features

• LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and outlast the competition:

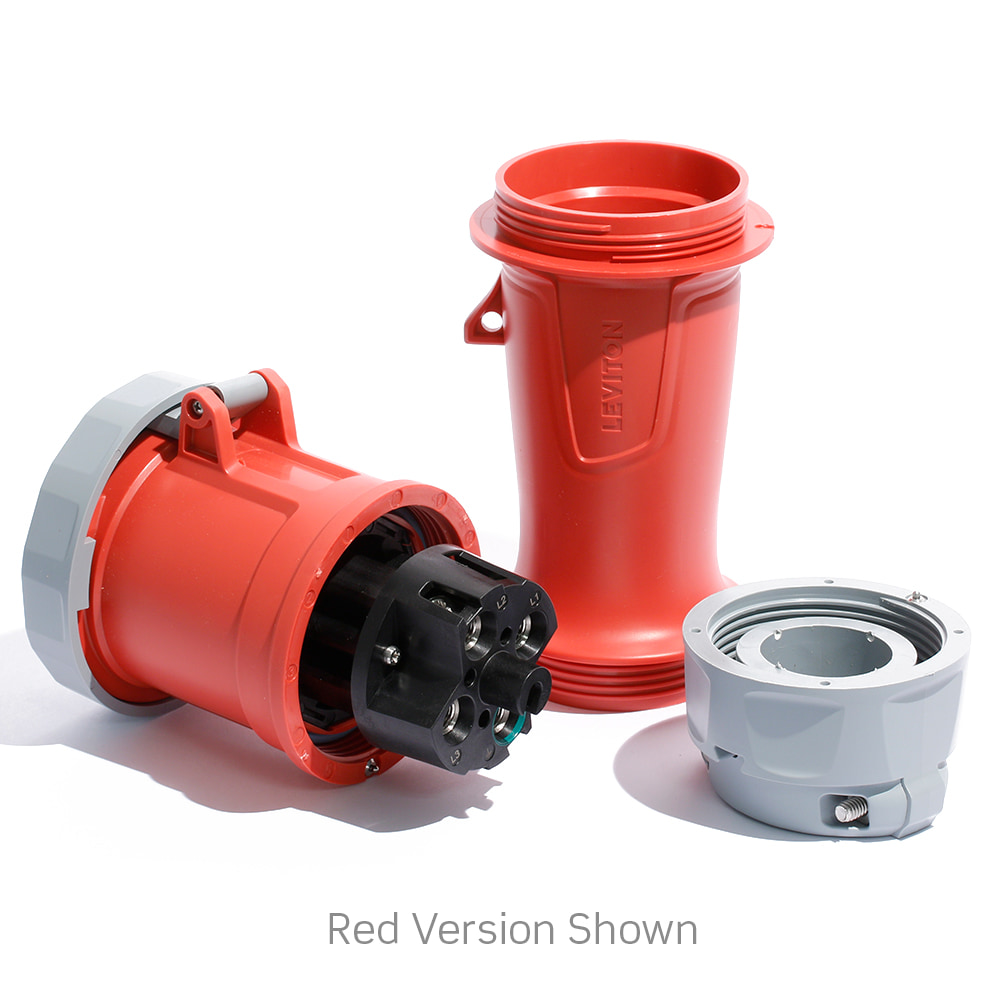

• Improved speed of assembly with threaded housings that have less screws for reduced installation time

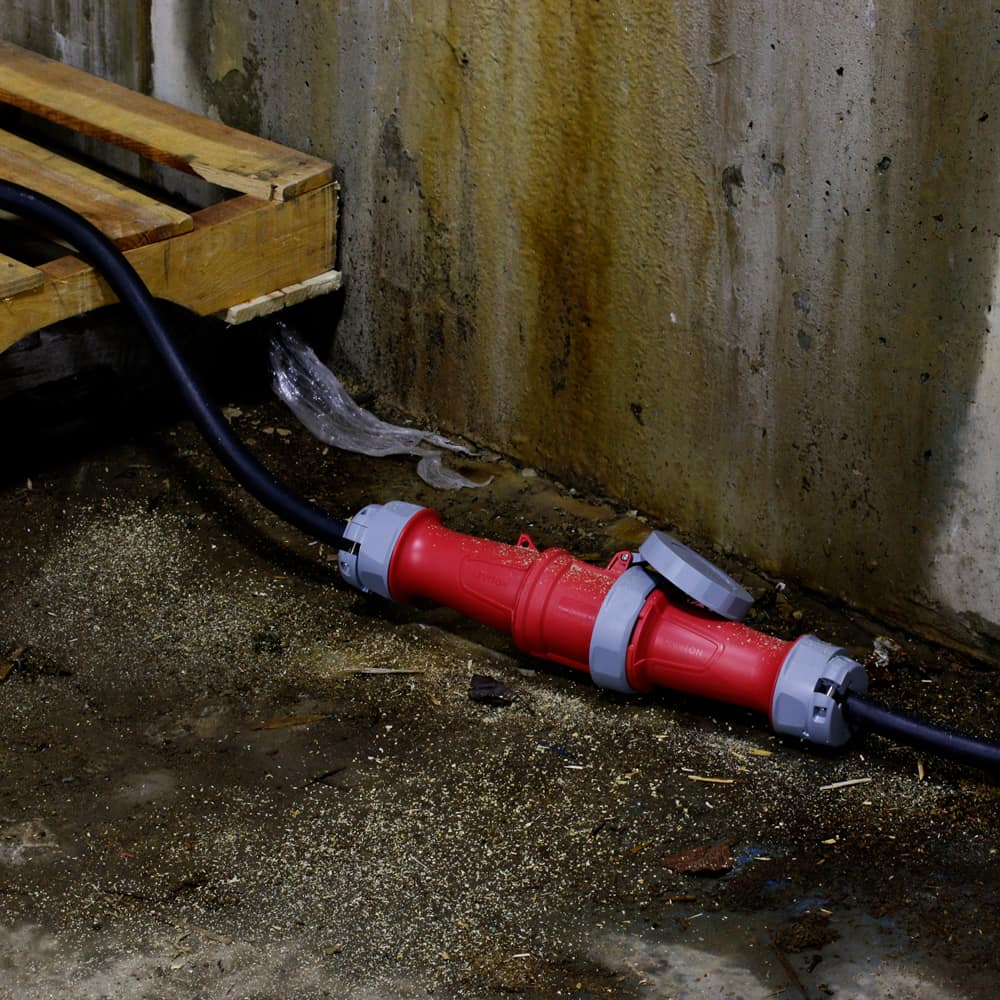

• Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68
• Best in class 5-year limited warranty! Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007. Calculate Time & Money Saved with the LEV Series Calculator!

Patents

• US10431922
• US11271342

Specifications

• Country of Origin: Mexico
• RoHS Compliant: False

Mechanical Specifications

• Amperage: 60 A
• Cable Clamp Screw Torque: 10 in-lb
• Conductor Range: #8 AWG to #2 AWG
• Crush Test: 250 lbs for 1 min after -25°C for 6 hrs
• Current Interrupting: Certified for current interrupting at full-rated current and voltage
• Dielectric Voltage: 3000V for 1 min.
• Endurance: 1000 cycles rated V and I load, 1000 cycles no-load (60A)
• Hardware Head Type: Hex style socket screws for terminals, combination screws for all others
• Horsepower Rating: 5 HP
• Impact: Drop from 30" 8 times after conditioning to -25°C, for 6 hoursDrop from 72" after conditioning to -35°C, for 6 hours
• Max. Voltage: 600V
• Overload UL20 Test: 50 cycles
• Phase: 3-Phase
• Pole: 4
• SCCR: 200kA
• Screw Terminal Torque: 50 in-lb
• Temperature Rise: Max 30°C rise at full rated current (after overload)
• Voltage: 120/208 VAC
• Wire: 5

Material Specifications

• Assembly Screws: 303 Stainless Steel
• Contact Carrier: Glass filled Nylon
• Grommet/Gasket: NBR/Buna N
• Housing: Impact Modified Nylon
• Locking Ring: Impact Modified Nylon
• Terminal Screws: 303 Stainless Steel

Standards and Certifications

• CE: CE certification
• CSA: CSA C22.2 No 182.1-13 (Harmonized with UL 1682)
• IEC Rating: 60309-1, 60309-2
• NOM: NOM –ANCE standards
• RoHS: RoHS compliant components
• UL: UL 1686 C2, UL 1682

Product Features

• Clock Position: 9 o'clock

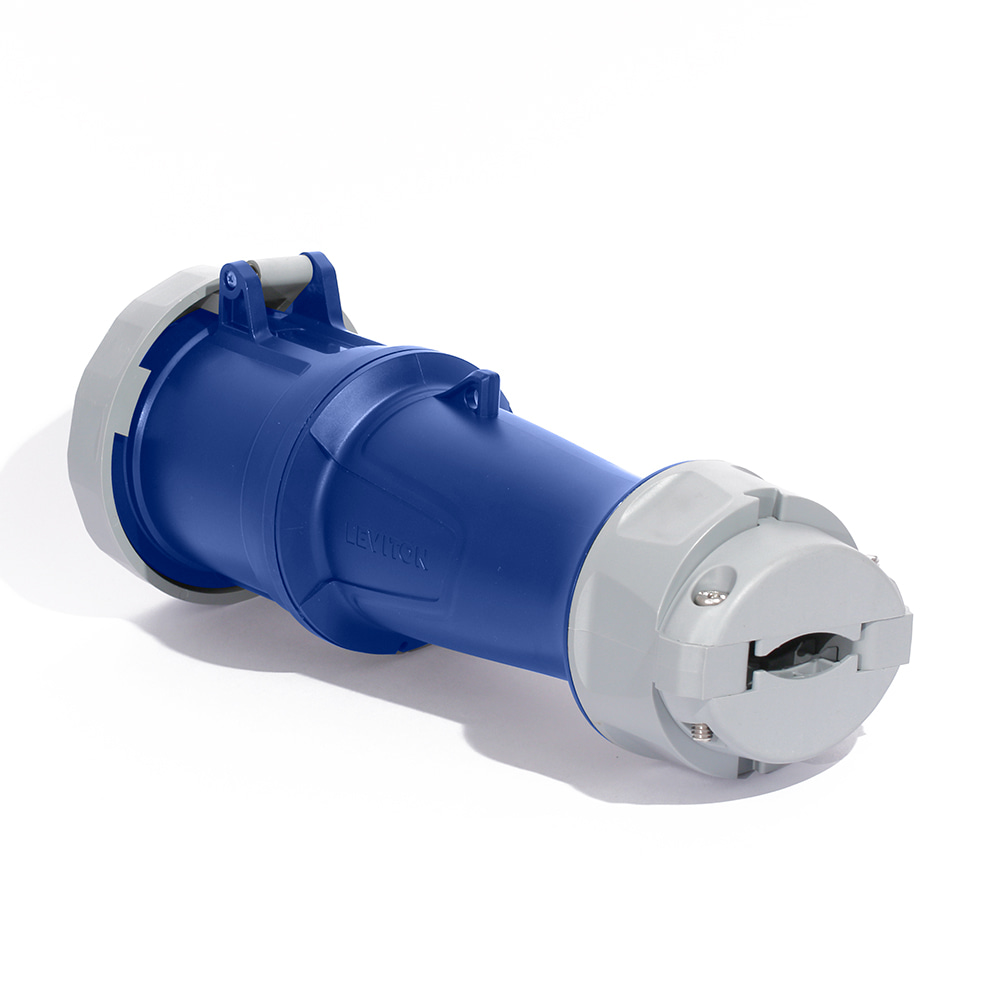

• Color: Blue
• Configuration: North American
• Device Type: Connector
• Lockout/Tagout Provision: Lockout hole on housing
• Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
• Series: LEV Series

Environmental Specifications

• Corrosion Resistance: Salt fog tested
• Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
• IP Rating: IP66, IP67, IP68, IP69K
• NEMA Enclosure Type: 3R, 4X, 6P and 12
• NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
• UV Resistance: UV stabilized F1 rated housings

Warranty

• Warranty: 5-Year Limited
