Lev-Lok Toggle Switch

Leviton
SKU #32827Part #M1221-IUPC 078477494325

Lev-Lok Toggle Switch

Leviton
SKU #32827Part #M1221-IUPC 078477494325

Product form

Out of stock, Call 1-866-853-4768 for availability and price. Most out of stock items can be ordered and are usually available to ship in 1-3 business days.

Product Substitutes

Description

Features

Color Variations

Brown

Patents

CA2655707
CA2667092
US7357652
US7666010
US8096818

Specifications

Country of Origin: Mexico
RoHS Compliant: True

Standards and Certifications

ANSI: C-73
NEMA: WD-1 & WD-6
NOM: 057
RoHS: Compliant
Warranty: 10-Year Limited
cULus: File # E7458

Electrical Specifications

Amperage: 20 A
Dielectric Voltage: Withstands 1500V for 1 minute
Endurance: 50,000 cycles minimum
Grounding: Self-Grounding
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
Temperature Rise: Maximum 30 degrees C rise
Voltage: 120/277 VAC

Material Specifications

Base Material: PBT
Color: Ivory
Contact Material: Silver Alloy
Cover Material: Nylon
Dome: Nylon
Ground Clips: Brass
Strap Material: Galvanized Steel
Toggle: Polycarbonate

Product Features

Brand: Lev-Lok
Device Type: Toggle Switch
Function: Single-Pole
Grade: Extra Heavy-Duty Industrial Specification Grade

Environmental Specifications

Flammability: Rated V-2 per UL94
Operating Temperature: -40°C to 65°C

AC Horsepower Ratings

HP Rating: 1HP-120V 2HP-240V

Mechanical Specifications

Product ID: Markings are permanently marked on device
Termination: Modular

Downloads

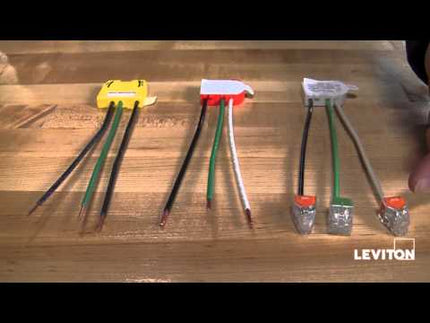

Videos

More Information

Manufacturer Catalog Number

M1221-I

Weight

11.7700

Country of Origin

Mexico

Color

Ivory

Amperage

20 amperes

Device Type

Toggle Switch

Dielectric

1500 volts

Enclosure

WD-6

Family Brand Name

Lev-Lok

Flammability Class

Rated V-2 Per UL94

Grade

Extra Heavy-Duty Industrial Specification

Grounding

Self-Grounding

Nema

WD-1

Operating Temperature

-40 degrees celsius

Temperature Rise

30 degrees celsius

Warranty Length

10 years
