Lev-Lok® USB Combination Duplex Receptacle/Outlet, Tamper-Resistant
SKU: #33141
Part: #M56AA-HGW
UPC: 078477381533
Lev-Lok® USB Combination Duplex Receptacle/Outlet, Tamper-Resistant
SKU: #33141
Part: #M56AA-HGW
UPC: 078477381533
Description

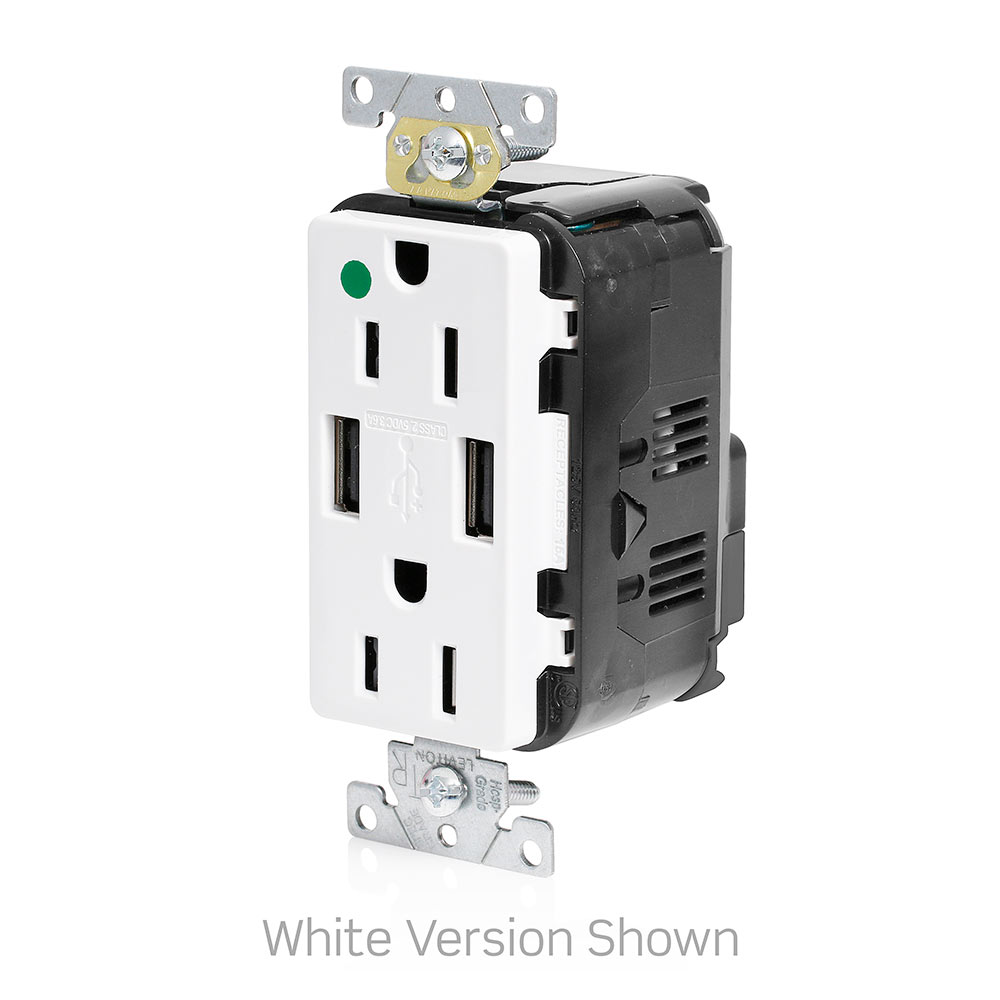

Lev-Lok® USB Combination Duplex Receptacle/Outlet, Tamper-Resistant – Heavy-Duty Hospital Grade
The Lev-Lok® USB Combination Duplex Receptacle/Outlet is a tamper-resistant electrical device designed for commercial specification and heavy-duty hospital grade applications. It integrates a NEMA 5-15R 15A-125V receptacle with dual USB charging ports, supporting both Type A and Type C USB interfaces. This combination device is suitable for healthcare facilities, airports, hospitality, educational institutions, and other commercial environments requiring reliable wire and cable solutions and lighting and electrical distribution products.
Specifications
- Device Type: Combination Device
- Grade: Heavy-Duty Hospital
- Amperage: 15 amperes
- NEMA Configuration: WD-1 (5-15R)
- Number of Poles: 2
- Number of Wires: 3
- Voltage: 125 VAC
- Grounding: Self-Grounding
- Dielectric Voltage Withstands: 2000 volts
- Horsepower Rating: 1/2 horse power
- Operating Temperature: -10 degrees Celsius to 40 degrees Celsius
- Body Material: PBT Thermoplastic polyester resin
- Face Material: Thermoplastic
- Flammability Class: Rated V-0 per UL 94
- Product Weight: 0.3900 lbs
- Manufacturer Part Number: M56AA-HGW
- Country of Origin: China
Features
- Tamper-resistant shutters meeting NEC Article 406.12 requirements
- Dual USB ports spaced for simultaneous use and reduced cable stress
- Supports USB Type A and Type C for versatile device compatibility
- Impact and chemical resistant PBT face for longer service life

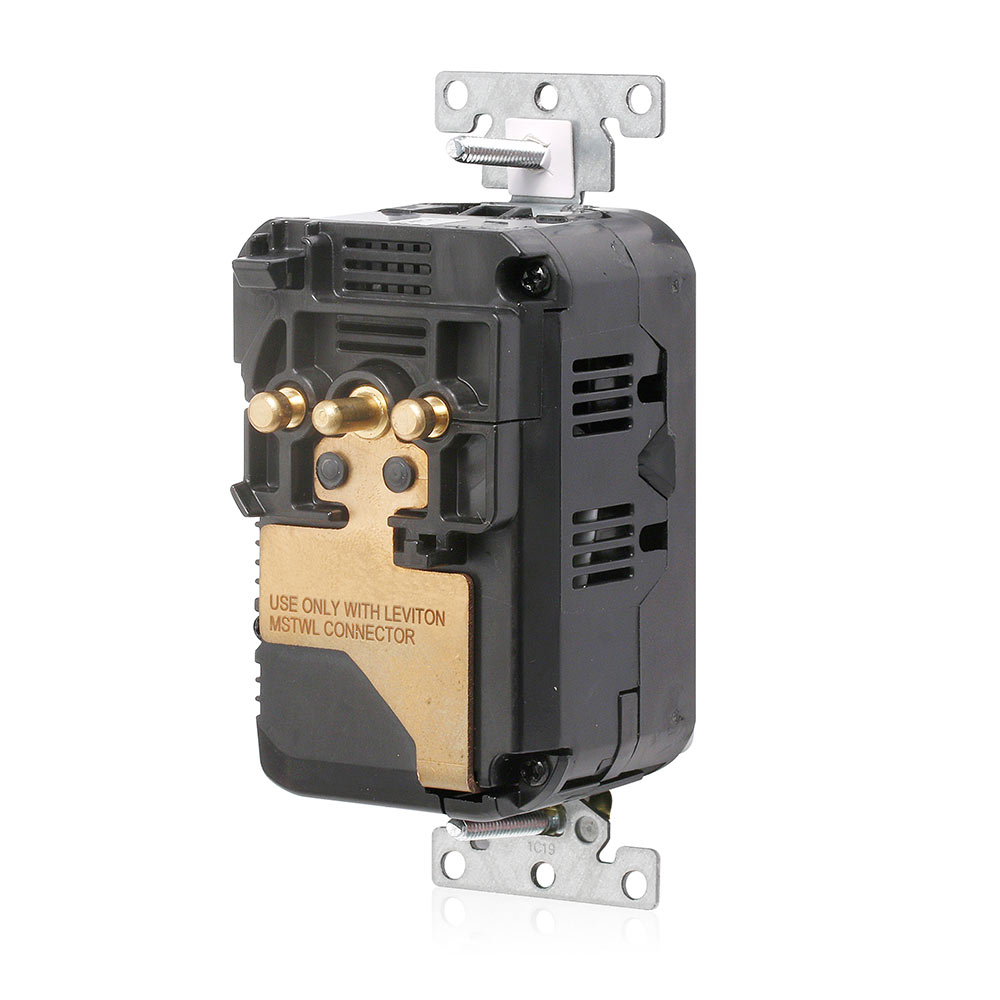

- Brass self-grounding clip and solid brass locking pin for reliable grounding and durability
- Improved strap design providing greater support even with mounting ears removed
- Compatible with a wide range of USB-powered devices including tablets, smartphones, laptops, and more

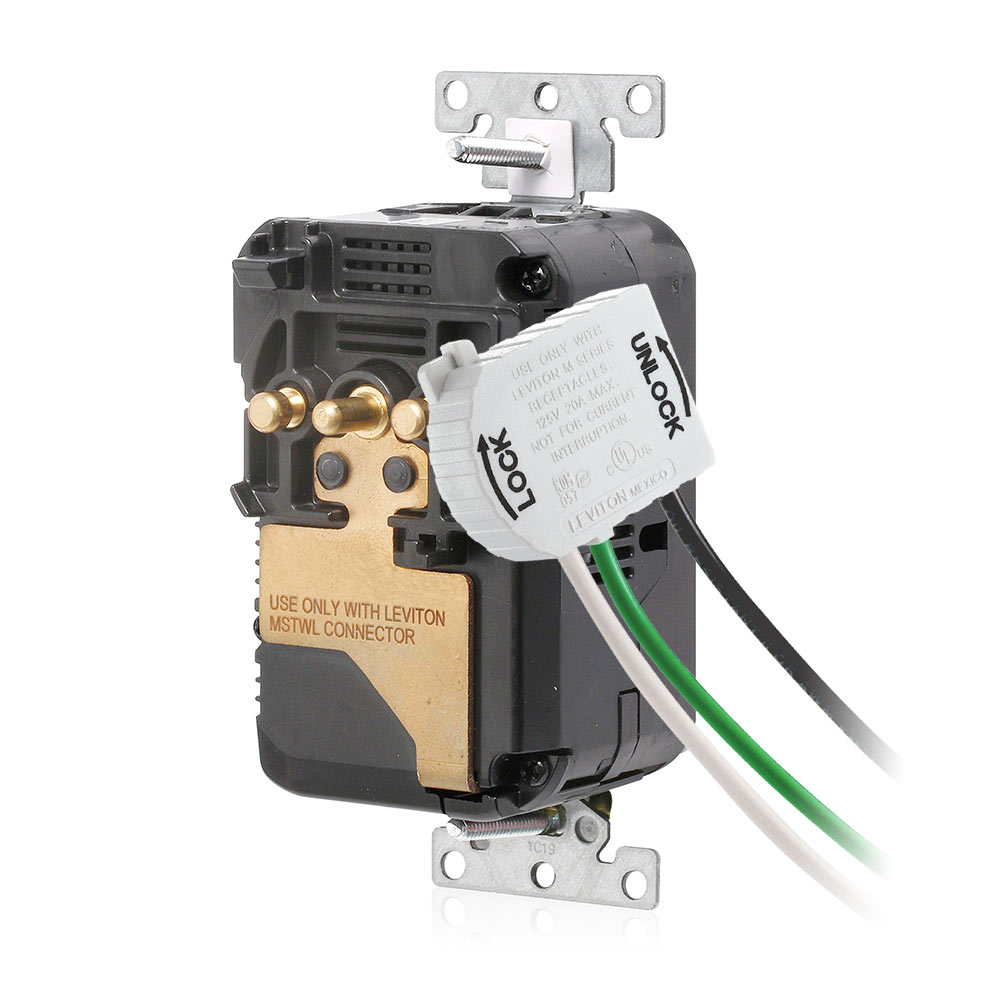

- Requires mating MSTWL Lev-Lok Wiring Device Module for installation (sold separately)
