Lev-Lok Decora Plus Receptacle Extra Heavy-Duty Hospital Grade Outlet

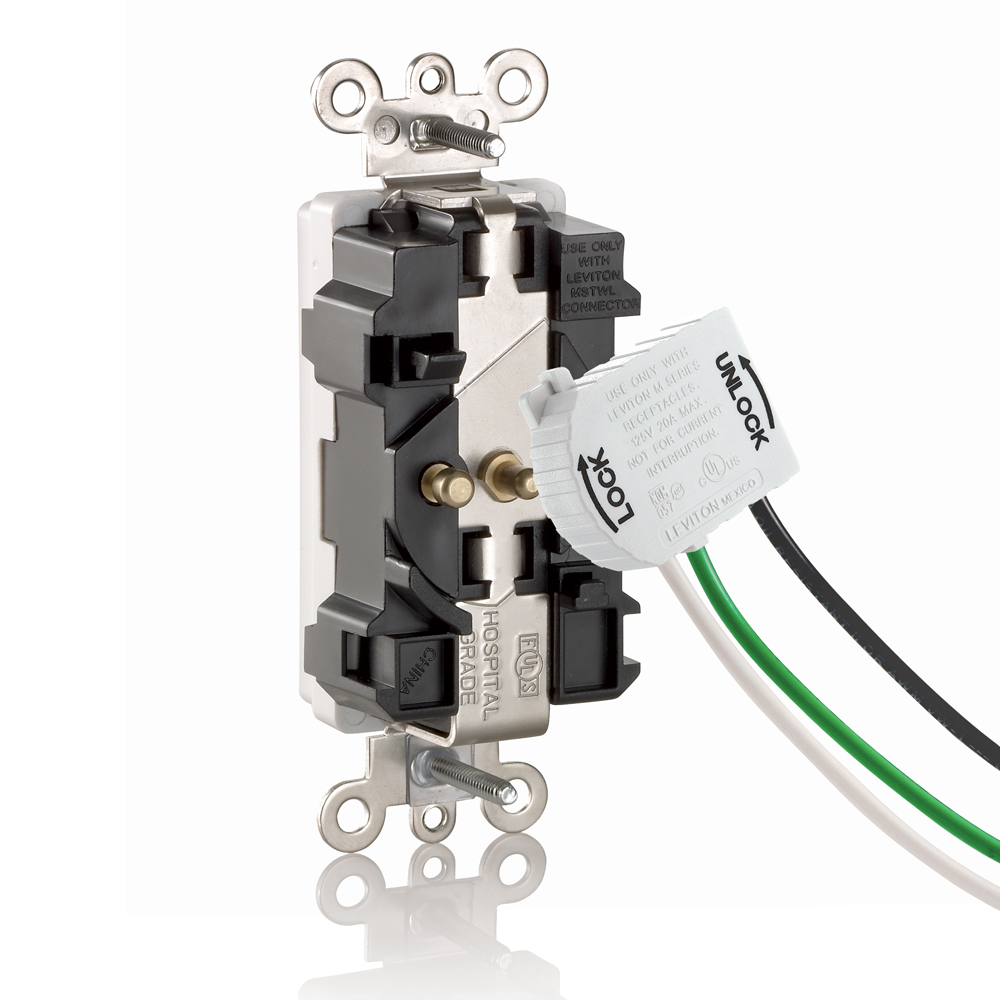

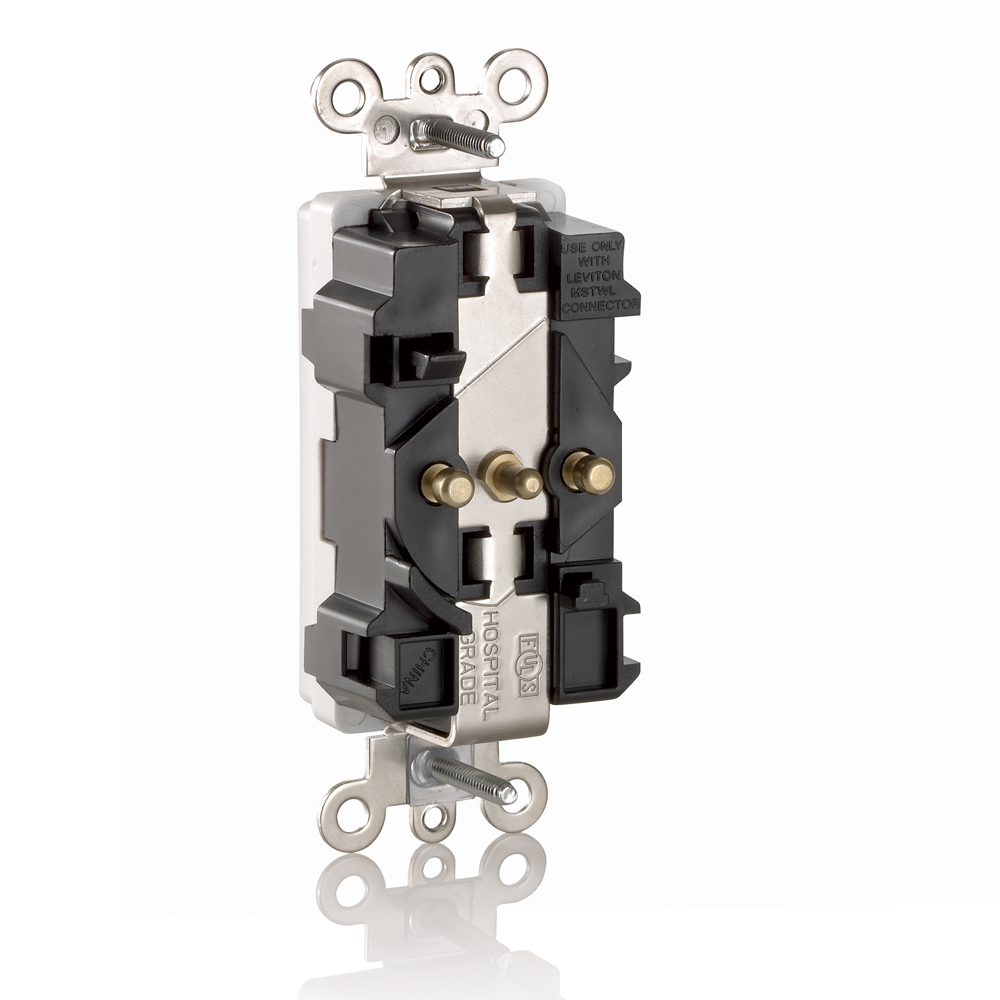

The Lev-Lok Decora Plus Receptacle is an extra heavy-duty hospital grade duplex receptacle outlet designed for reliable electrical distribution in healthcare and other demanding environments. This tamper-resistant, modular device operates at 20 amperes and 125 volts, featuring a smooth face and NEMA 5-20R configuration. It is self-grounding and requires a mating Lev-Lok wiring module for installation, providing secure and efficient connectivity ideal for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers.

Specifications

• Device Type: Duplex Receptacle Outlet
• Amperage: 20 amperes
• Voltage: 125 volts
• Grade: Extra Heavy-Duty Hospital
• Color: Red
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Self-Grounding
• Dielectric Strength: 2000 volts
• Horsepower Rating: 1 horse power
• Enclosure: WD-6
• Operating Temperature: -40 degrees Celsius
• Country of Origin: Mexico
• Manufacturer Part Number: MT163-HGR
• NEMA: WD-1
• Product Weight: 11.5 lbs

Features

• Tamper-resistant design for enhanced safety
• Modular construction compatible with Lev-Lok wiring modules
• Smooth face for easy cleaning and maintenance
• Extra heavy-duty construction suitable for hospital-grade applications
• Self-grounding feature ensures reliable grounding connection
• Red color coding for easy circuit identification, especially for emergency circuits
