LEV 16352-LE DECR PLUS WIRE L
SKU: #8802
Part: #16352-LE
UPC: 078477300558
LEV 16352-LE DECR PLUS WIRE L
SKU: #8802
Part: #16352-LE
UPC: 078477300558
Total Price: $18.09 per each Sold in increments of 1 each
Next day delivery
Description

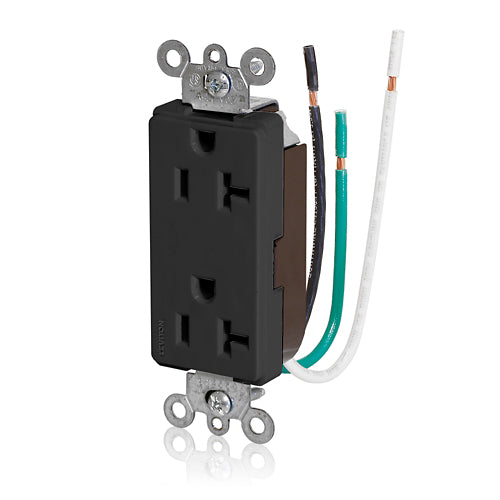

LEV 16352-LE DECR PLUS WIRE L – Commercial Grade Duplex Receptacle
The LEV 16352-LE Decora Plus Duplex Receptacle is a commercial specification grade electrical outlet designed for demanding environments. It features pre-wired leads and a smooth face design, suitable for use in commercial office buildings, schools, hospitals, and hotels. This 20 Amp, 125 Volt receptacle supports NEMA 5-20R configurations with 2-pole, 3-wire self-grounding wiring, making it a reliable choice for electrical distributors and lighting solutions providers requiring durable wire and cable accessories or switchgear components.
Specifications
- Amperage: 20 A
- Voltage: 125 VAC
- Current Interrupting: Certified for full rated current interrupting
- Dielectric Voltage Withstand: 2000V minimum per UL 498
- Grounding: Self-Grounding
- Pole: 2
- Wire: 3 (1 Hot Lead, 1 Neutral Lead, 1 Ground Lead)
- Temperature Rise: Max 30°C after 100 cycles OL at 150% rated current
- Flammability: Rated V-2 per UL 94
- Operating Temperature: -40°C to 60°C
- Base Material: Thermoplastic
- Cover Material: Thermoplastic
- Grounding Leads: 6", #12 AWG THHN
- Terminal Leads: 6", #12 AWG THHN
- Mounting Screws: Triple Combination Head, Steel
- Mounting Strap: Steel multipiece with 2 drive pins
- Power Contacts: Brass, triple wipe
- Termination: Pre-Wired Leads
- NEMA Configuration: 5-20R
- Standards and Certifications: UL/CSA
- Warranty: 10-Year Limited
- Product Weight: 1.0000 lb
- Country of Origin: Mexico
Features
- Impact-resistant thermoplastic cover and body for durability
- Heavy gauge, locked-in wrap-around mounting strap for secure installation
- Large triple-wipe brass "T" contacts providing superior contact pressure and conductivity
- Dual drive pins for sturdy assembly
- Pre-wired leads with #12 AWG THHN wire, 6-inch length for easy wiring
- Self-grounding design enhances safety and code compliance
- Commercial specification grade suitable for high-demand applications
- Backed by a limited 10-year warranty
