LEGRAND WP3450-OR CAT 5E RJ45 T568 A/B CNCTR ORG (M20)
SKU: #408496
Part: #WP3450OR
UPC: 804428024927
LEGRAND WP3450-OR CAT 5E RJ45 T568 A/B CNCTR ORG (M20)
SKU: #408496
Part: #WP3450OR
UPC: 804428024927
Total Price: $5.16 per each Sold in increments of 1 each
Description

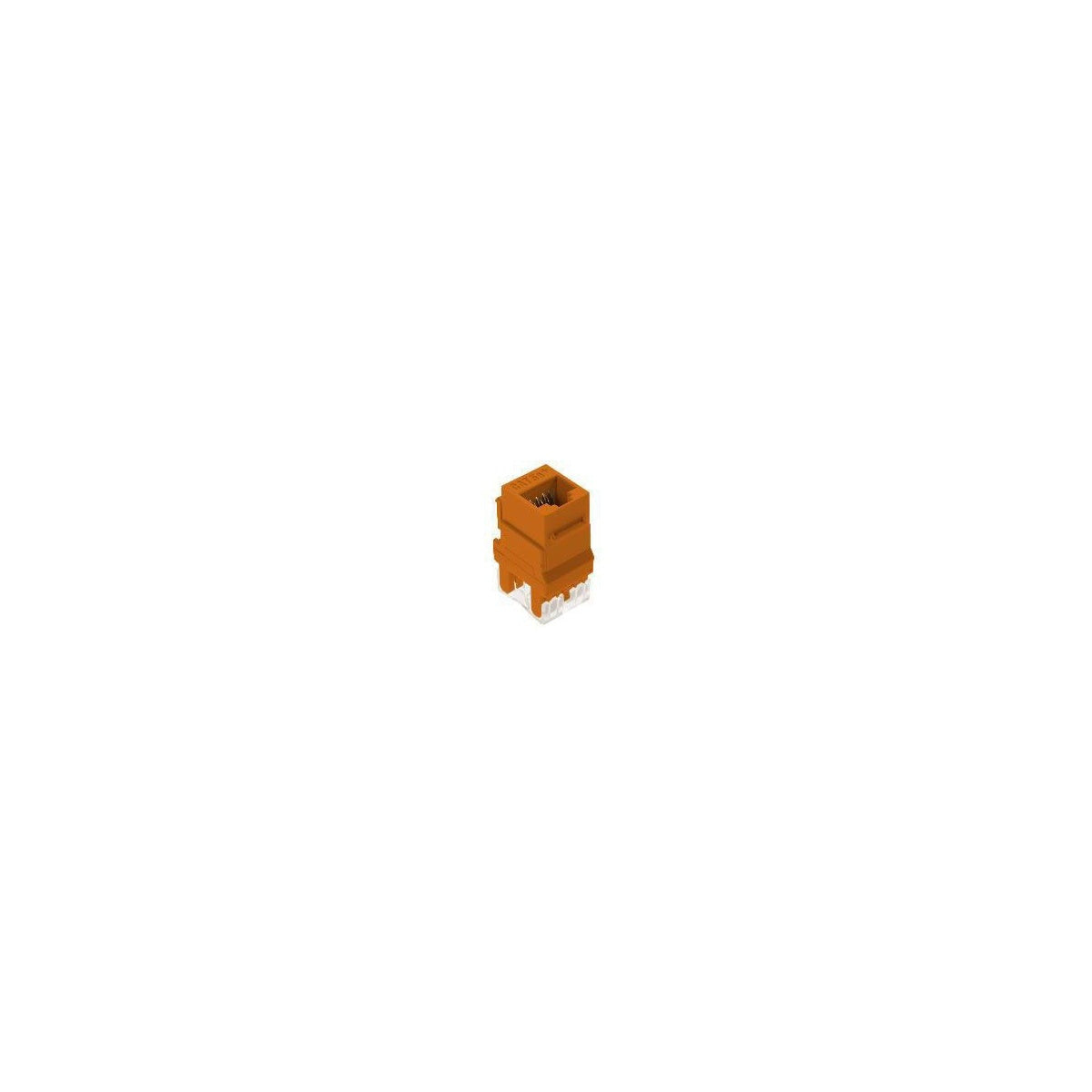

LEGRAND WP3450-OR CAT 5E RJ45 Keystone Connector
The LEGRAND WP3450-OR is a Cat 5e RJ45 keystone connector designed for residential applications. This orange connector provides reliable data connectivity solutions suitable for electrical distributors and lighting solution providers requiring structured wiring components. It features a molded plastic body with a diamond core finish for durability and a spring wire contact system plated with gold over nickel for optimal signal transmission and corrosion resistance.
Specifications
- Application: Residential
- Color: Orange
- Finish: Molded plastic chemically etched with diamond core finish
- Contact: Spring Wire Contact: Phosphor Bronze Alloy plated with 50 micro-inch of Gold over 100 micro-inch of Nickel
- Mounting: Keystone opening
- Connection: RJ45 Female
- Insulation Resistance: 500 M-Ohms (@ 100 VDC)
- Insertion Loss: 0.01 to 0.4 (typical)
- Contact Resistance: 20 milliohms max (spring wire contact)
- Environmental Conditions: 0 to 93% relative humidity, non-condensing
- Product Weight: 0.0400 lbs
- Manufacturer Part #: WP3450OR
- UPC: 804428024927
Features
- Cat 5e performance suitable for residential structured wiring installations
- Durable molded plastic body with diamond core finish for enhanced wear resistance
- Gold-plated phosphor bronze spring wire contacts ensure low contact resistance and reliable signal integrity
- Compatible with keystone openings for easy mounting and integration into standard wall plates and patch panels
- Designed to operate in environments with up to 93% relative humidity without condensation
