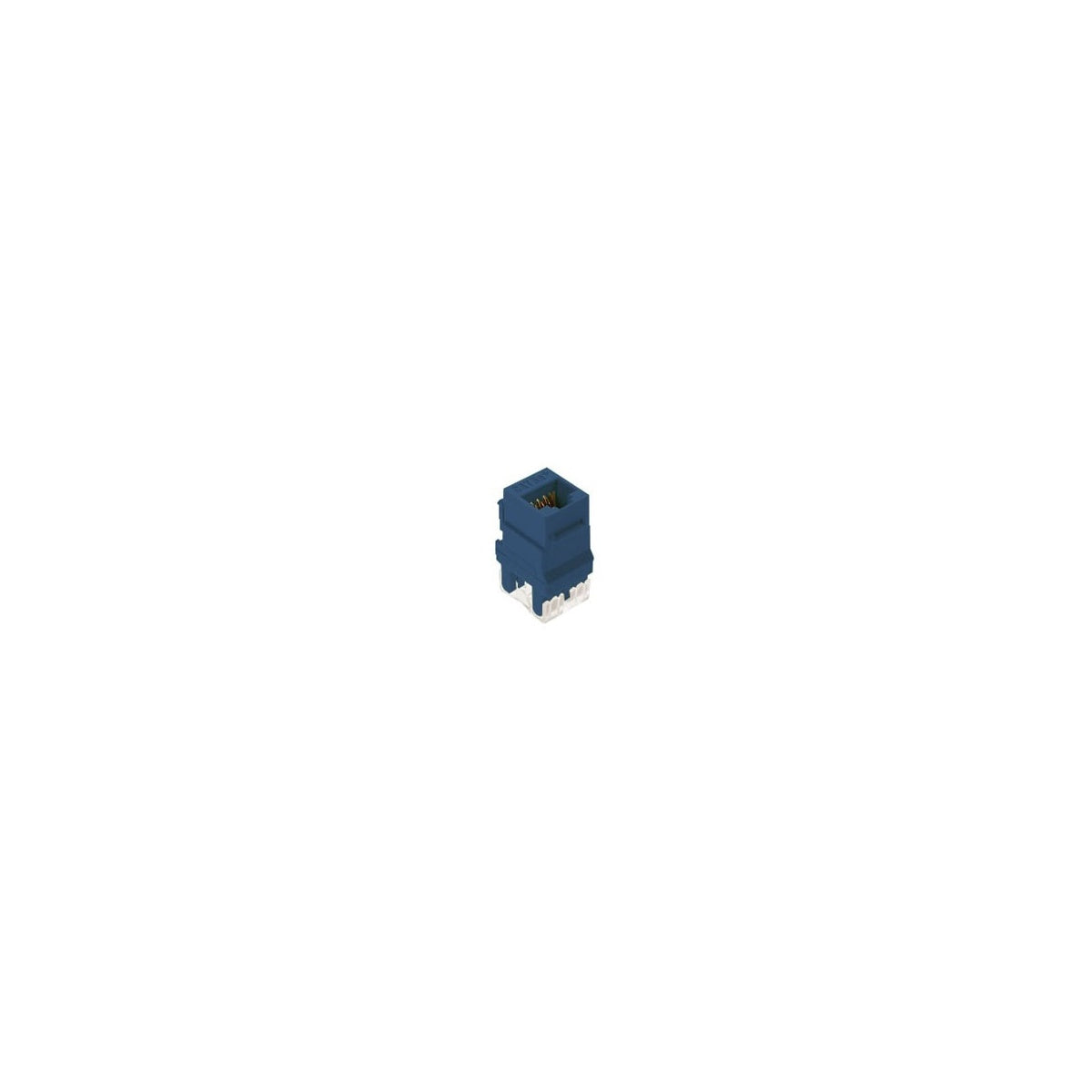

LEGRAND WP3450-BE CAT 5E RJ45 Keystone Connector

The LEGRAND WP3450-BE is a Cat 5e RJ45 keystone connector designed for residential applications. It provides reliable data connectivity solutions and is suitable for electrical distributors and switchgear suppliers needing high-quality wire and cable components. This connector supports standard RJ45 female connections and is compatible with keystone openings for easy mounting.

Specifications

• Application: Residential
• Color: Blue
• Finish: Molded plastic chemically etched with diamond core finish
• Contact: Spring Wire Contact made of phosphor bronze alloy plated with 50 micro-inch gold over 100 micro-inch nickel
• Mounting: Keystone opening
• Connection: RJ45 Female
• Insulation Resistance: 500 M-Ohms (@ 100 VDC)
• Insertion Loss: 0.01 to 0.4 (typical)
• Contact Resistance: 20 milliohms max (spring wire contact)
• Environmental Conditions: 0 to 93% relative humidity, non-condensing
• Product Weight: 0.0400 lbs
• Manufacturer Part #: WP3450BE

Features

• Complies with Cat 5e TIA 568A/B wiring standards for reliable network performance
• Durable molded plastic housing with diamond core finish for enhanced mechanical stability
• Gold-plated contacts ensure low resistance and high conductivity for data transmission
• Designed for quick and secure keystone mounting in structured wiring panels
• Suitable for use in residential structured wiring and data communication installations
