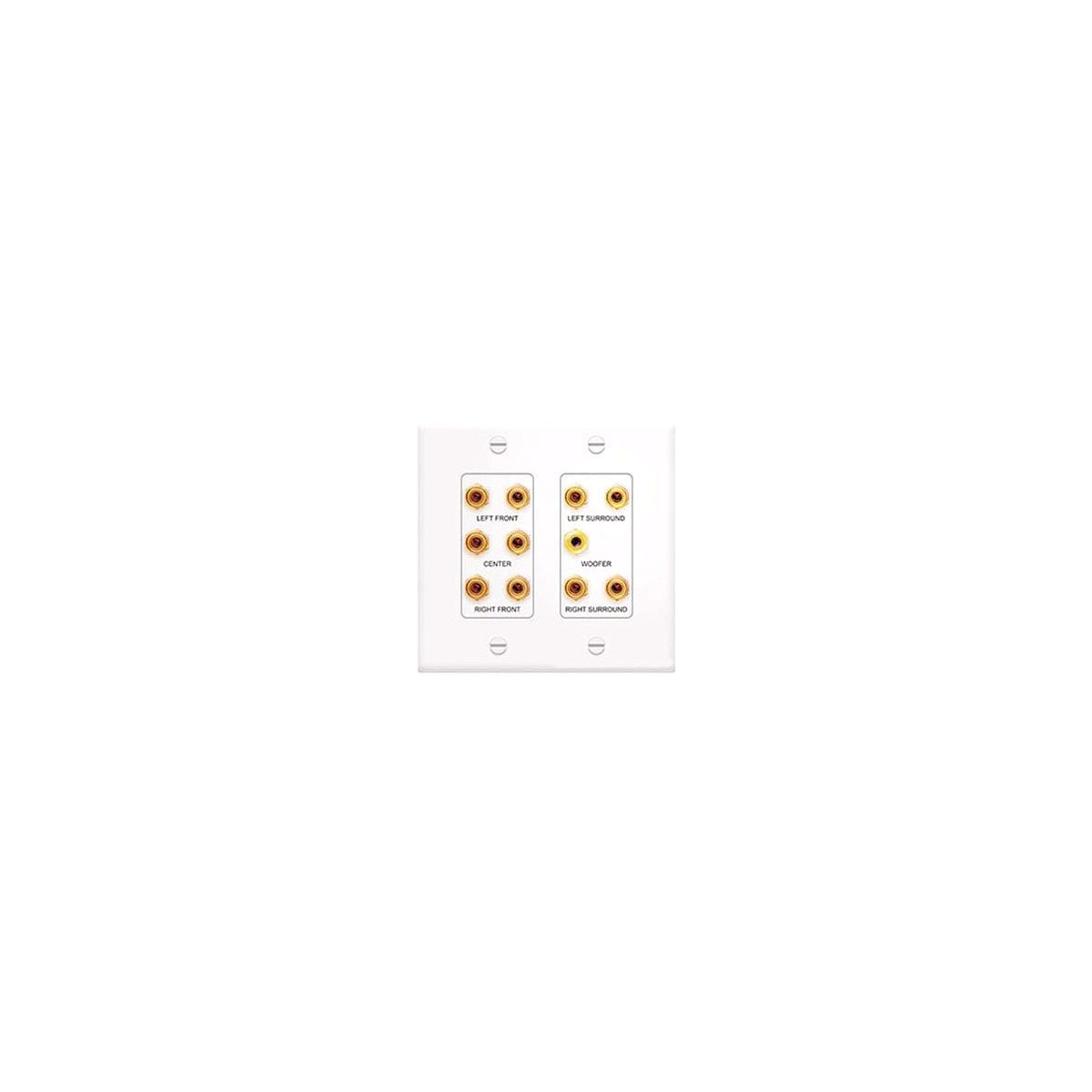

LEGRAND F9004-WH 5.1 Home Theater Outlet Straps

The LEGRAND F9004-WH 5.1 Home Theater Outlet Strap is designed for residential audio applications, providing a reliable connection solution for 5.1 multi-room home theater systems. This preconfigured decorator strap fits into a standard two-gang wall box and supports banana jack and stripped speaker wire connections, making it suitable for electrical distributors and lighting solutions providers specializing in wire and cable and switchgear supply for home audio installations.

Specifications

• Application: Residential
• Material: High Impact Flame Retardant Plastic
• Mounting: Wall Box
• Orientation: Vertical
• Number of Gangs: 2
• Cutout: 10 Audio Binding Post, 1 RCA-F
• Product Weight: 0.4200 lbs
• Connection Type: Banana Jack/Stripped Speaker Wire
• Receptacle Type: 9x Binding Posts, 1x RCA-F connector
• Number of Receptacles: 11
• Dimensions: Depth 1.25" (3.2 cm), Height 4.19" (10.6 cm), Width 1.65" (4.2 cm) per strap
• Color: White

Features

• Contains all parts necessary to hook up a 5.1 audio solution
• Fits into a standard two-gang decorator opening
• Includes a connection for the sub-woofer for a true 5.1 multi-room audio installation
