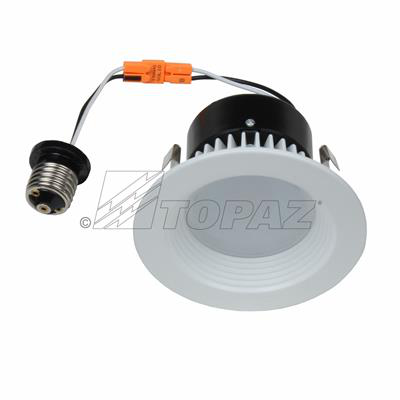

LED Retrofit Unit - 4" Baffle 4000K | LED Retrofit Lighting Solutions

The LED Retrofit Unit - 4" Baffle 4000K by Southwire offers a high-performance retrofit solution for standard 4" recessed housings, suitable for downlighting and directional lighting applications. Designed for electrical distributors and lighting solutions providers, this unit integrates advanced thermal management and optics to ensure long-lasting, energy-efficient illumination. It features dimmability down to 5% for precise lighting control and delivers exceptional color rendering with a 90+ CRI in a 4000K color temperature. The unit is ENERGY STAR and UL Listed for wet and damp locations, making it a reliable choice for a wide range of commercial and residential installations.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: RTL/443WH/90/D-28
• Product Weight: 10.65 lbs
• Color Temperature: 4000K
• CRI: 90+
• Dimmable: Yes, down to 5%
• Energy Star Certified: Yes
• UL Listed: Suitable for wet and damp locations
• Luminous Flux: 652.6 lumens
• Input Voltage: 120V AC
• Input Power: 10.28 W
• Power Factor: 0.94
• Frequency: 60 Hz
• Input Current: 0.0911 A
• Life Rating: Up to 50,000 hours
• UPC: 751338093850

Features

• Easy retrofit installation with included E26 socket adapter and torsion spring clips
• Advanced thermal management for enhanced durability and performance
• High efficacy of 63.5 lumens per watt for energy savings
• Compatible with standard 4" recessed housings (minimum opening 4 ¼" to maximum 4 ½")
• Suitable for use in damp and wet locations
• Provides uniform, high-quality light with a baffle reflector design
• Designed to reduce maintenance and energy costs for electrical distributors and switchgear suppliers

Downloads & Links

• RTL-4X3WH-90-D-28 LM79
• Installation Sheet_RTL-4x3WH_RTL-4x7WH_RTL4xSQ -28
• Dimmer Compatibility RTL-443WH-90-D-28
• RTL4X3WH90D-28.IES
• Spec Sheet
