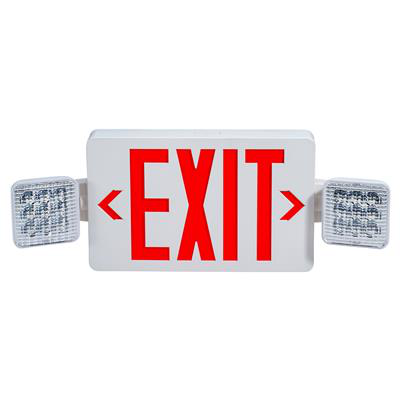

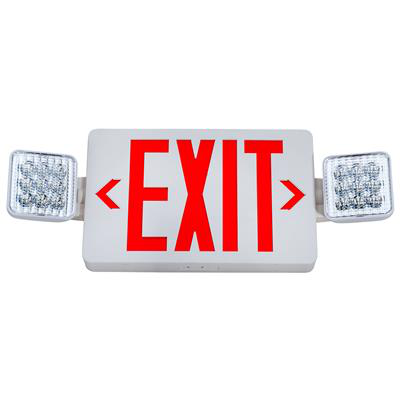

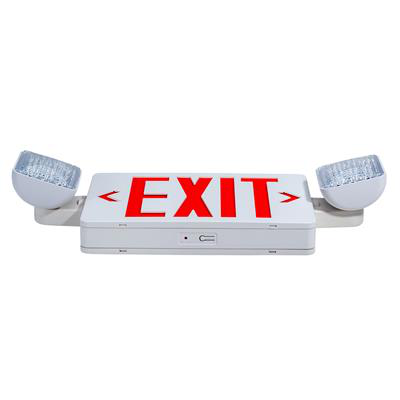

LED Red Exit & Emergency Combo Remote Capable

The LED Red Exit & Emergency Combo by Southwire is a UL, OSHA, NEC, and NFPA compliant emergency lighting fixture designed for commercial, industrial, retail, and public spaces. This unit provides essential illumination during power failures with a long-lasting Ni-Cad battery backup and is remote capable to support additional remote head lamps for enhanced lighting coverage. Suitable for ceiling or wall mounting, it offers a modern, easy-to-install solution for emergency exit and illumination needs.

Specifications

• Input Voltage, Frequency: 120/277V, 60Hz
• Emergency Duration / Run Time: 90 minutes
• Recharge Time: 24 hours
• CCT: 5700K
• CRI: 80
• Recycle Times: 500
• Location Rating: Damp
• Ambient Operating Temperature: 50°F to 104°F
• Lens Type: Polycarbonate
• Number of Faces: Single and double
• Ceiling or wall mount (canopy included)
• Battery Type: (2) Ni-Cad 3.6V 900mAh
• AC Supply Test Button: Yes
• Remote Capabilities: DC 3.6V 1.5W Max
• Input Wattage: 3.5W
• Output Wattage: 1.5W
• Input Current @120V/277V: 33/15mA
• Number of Lamps: 2
• Product Weight: 2.86 lbs

Features

• Meets NFPA 70, NFPA 101, UL924 NEC / OSHA Standards
• T20 compliant for California Energy Commission’s Lighting Appliance Efficiency Regulations
• Remote capable to add up to two single or one double remote head lamp
• Battery backup with accessible push-to-test button for 90 minutes of illumination during power outage
• Fully adjustable, glare-free lamp heads with track and swivel for full range adjustability
• White 5VA flame retardant thermoplastic housing with red EXIT letters (6" height, 3/4" stroke)
• Removable knockout chevron directional arrows

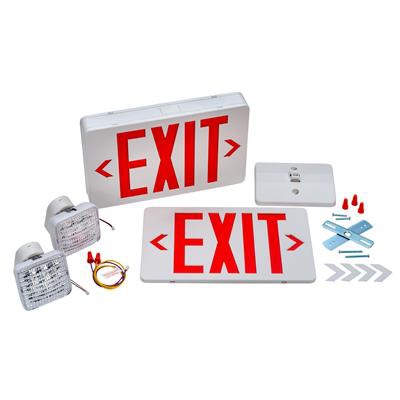

• Includes mounting hardware and canopy for ceiling or wall installation

Downloads & Links

• Spec Sheet
• Installation sheet_LED Combo Unit
