LED Exit Sign Red LED White Housing Battery Backup

This LED exit sign, manufactured by Morris Products, is designed for reliable emergency lighting applications. It features red LED letters housed in a white, injection-molded, flame-retardant enclosure. Suitable for electrical distributors and lighting solutions providers, this unit supports 120 or 277 VAC operation with an integrated battery backup to ensure visibility during power outages. Its compact, low-profile design allows for versatile mounting options, including side or top installation, making it a practical choice for commercial and institutional facilities requiring compliant exit signage.

Specifications

• Manufacturer Part #: 73012
• Housing Color: White
• Height: 2 IN
• Product Weight: 5.25 lbs
• Input Rating Amps: 18.1 mA @120V, 7.76 mA @277V
• Input Rating Watts: 1.64W @120V, 1.60W @277V
• Frequency: 60 Hz
• Voltage Rating: 120/277 VAC
• Battery: 1.2 Volt 900 mAH Ni-Cad with 90 Minutes Minimum Run Time
• Flammability Rating: UL 94 V-0
• LED Life Expectancy: 50,000+ Hours

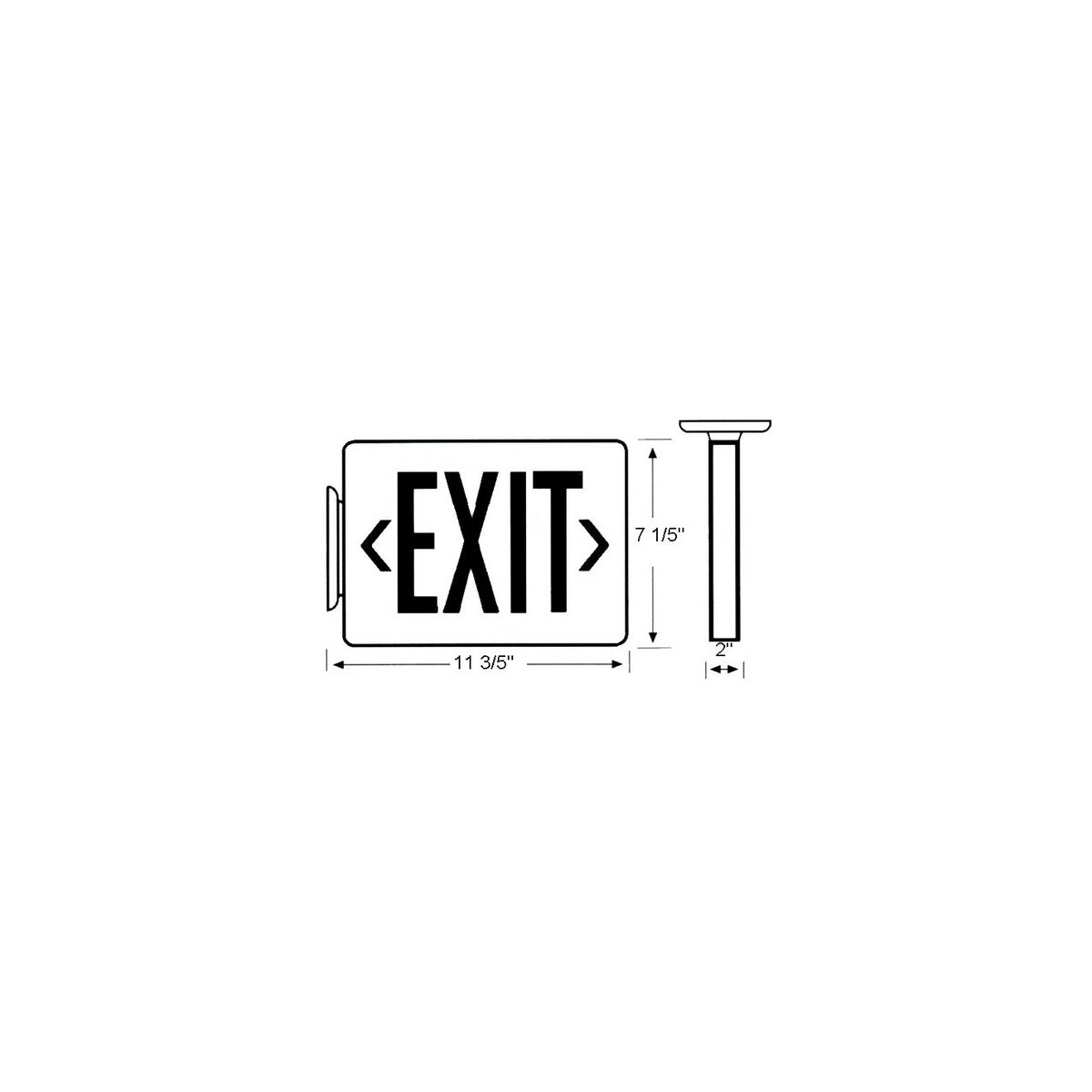

• Dimensions: 12.00" L x 7.50" H x 1.50" Depth
• UL Listed: UL 924
• RoHS Compliant
• Warranty: Five Years

Features

• Energy-efficient red LED letters consuming less than 4 watts
• Fully self-contained unit with automatic operation
• Push-to-test switch for battery backup functionality
• Automatic low voltage disconnect to protect battery life
• Universal mounting canopy with two faceplates for flexible installation
• Compact, low-profile design with neutral white finish
• Charge rate and power-on LED indicator light
• Listed for damp locations
• Standard AC and emergency units available
