LED Exit Sign Red LED Black Housing Battery Backup

This LED exit sign is designed for reliable emergency lighting applications, suitable for electrical distributors and lighting solutions providers. Featuring red LED letters with a black housing, it provides clear visibility for exit routes. The unit includes a battery backup system to ensure operation during power outages, making it a practical choice for commercial and industrial switchgear suppliers and wire and cable installers requiring compliant exit signage.

Specifications

• Manufacturer Part #: 73013
• UPC: 601986730136

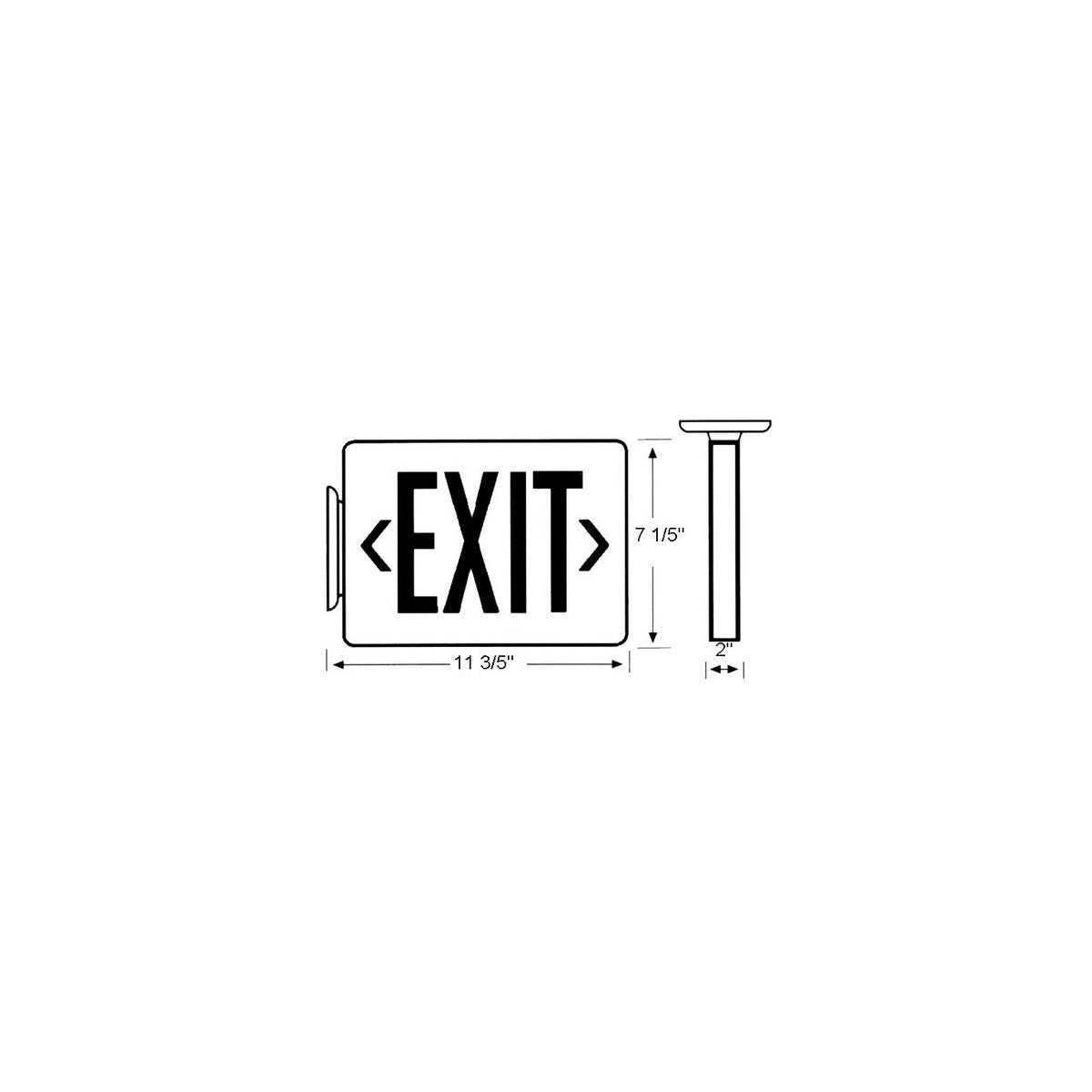

• Height: 7.5 in
• Length: 12 in
• Depth: 1.5 in
• Housing Color: Black
• Input Rating Amps: 18.1 mA @ 120V, 7.76 mA @ 277V
• Input Rating Watts: 1.64W @ 120V, 1.60W @ 277V
• Frequency: 60 Hz
• Voltage Rating: 120/277 VAC
• Battery Operation: 4.8 Volt 4.5 AH Lead Acid, 90 Minutes Minimum
• Flammability Rating: UL 94 V-0
• Product Weight: 5.25 lbs
• Certifications: UL 924, RoHS Compliant

Features

• Superior quality exit unit combined with LED energy-saving technology
• Completely self-contained with compact, low-profile design
• Fully automatic operation with push-to-test switch on battery backup units
• Automatic low voltage disconnect (LVD) for battery protection
• Injection-molded, UL 94 V-0 flame retardant, high-impact housing
• Charge rate/power on LED indicator light
• Energy consumption less than 4 W for red legend
• Listed for damp location use
• Universal mounting canopy with two face plates for side or top installation
• Standard AC and emergency units available
• 700mAH 4.8V Ni-CAD battery on battery backup units
• 90-minute battery run time

Downloads & Links

• Spec Sheet
