LED Exit Sign Green LED White Housing Battery Backup

This LED Exit Sign by Morris Products is designed for reliable emergency egress lighting, suitable for electrical distributors and lighting solutions providers. It features energy-saving green LED illumination housed in a compact, white injection-molded flame-retardant casing. The unit includes a battery backup system ensuring continuous operation during power outages, making it ideal for commercial and institutional applications requiring UL 924 compliant exit signage.

Specifications

• Manufacturer Part #: 73016
• Housing Color: White
• Height: 2 IN
• Product Weight: 5.25 lbs
• Input Rating Amps: 18.1 mA @ 120V, 7.76 mA @ 277V
• Input Rating Watts: 1.64W @ 120V, 1.60W @ 277V
• Frequency: 60 Hz
• Voltage Rating: 120/277 VAC
• Battery Operation: 4.8 Volt 4.5 AH Lead Acid, 90 Minute Minimum Run Time
• Flammability Rating: UL 94 V-0

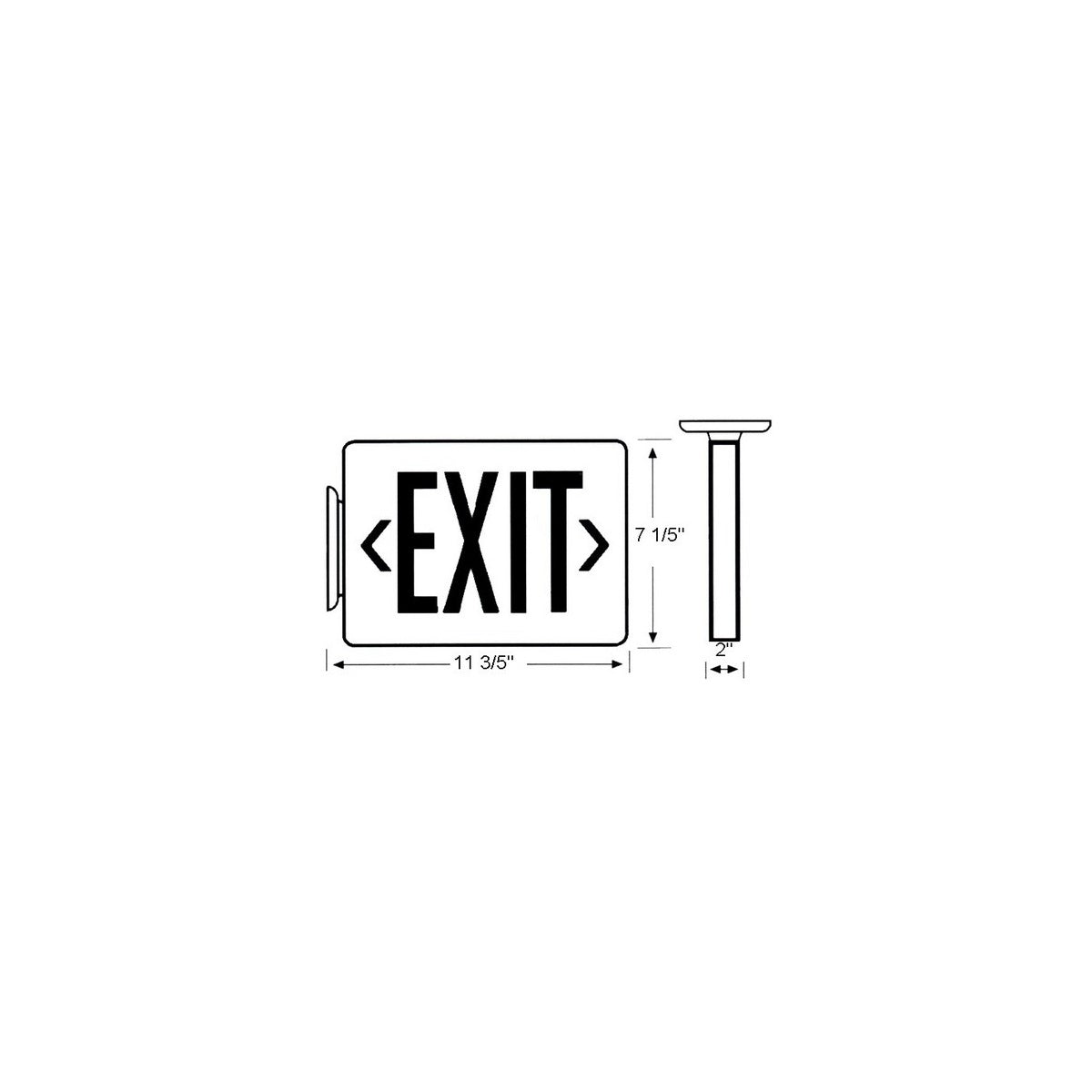

• Dimensions: 12" L x 7.5" H x 1.5" Depth
• UPC: 601986730167
• Certifications: UL 924, RoHS Compliant

Features

• Energy-saving green LED legend with white housing
• Completely self-contained, compact low profile design
• Push-to-test switch for battery backup units
• Automatic low voltage disconnect (LVD) for battery protection
• Charge rate/power-on LED indicator light
• Universal mounting canopy with two face plates for side or top installation
• Standard AC and emergency operation modes available
• Injection-molded, high impact flame retardant housing

Downloads & Links

• Spec Sheet
